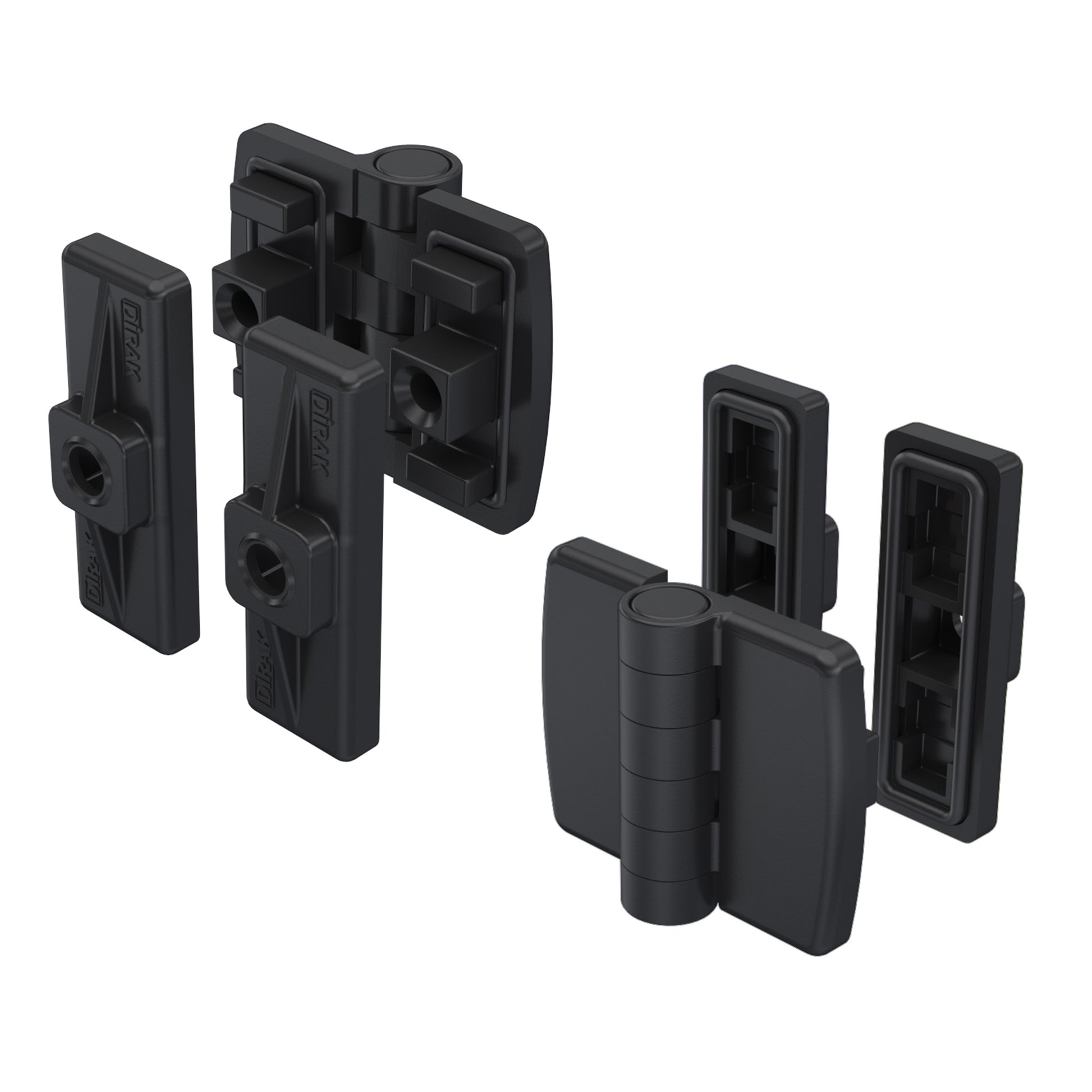

Dirak Hinge Pr01 with Fastening Bracket

Dirak Hinge Pr01 with Fastening Bracket

SKU:218-9801.00 / 218-9802.00 / 218-9803.00

Price on Application

Please check availability: Dirak products are generally custom ordered from the supplier based on individual project requirements. Please note, some items may not be readily available in stock at time of enquiry. Delivery times from Dirak can vary accordingly however the majority of orders take between 14-21 days to be received into warehouse by Selectlok Australia.

Features:

  • Bracket allows fixing of hinge half with just one screw
  • Bracket with permanent/attached seal for secure fastening to sheet metal
  • IP 65/67 according to DIN EN 60529 and IP69K according to DIN 40050
  • Maximum cutout size allows vertical adjustability and tolerance compensation
  • For nested doors
  • Hinge visible
  • RH / LH application
  • 180° opening angle
  • Allows for separate installation of the hinge halves
  • Assembly of the two-piece POM pin is by hand force. The pin cannot be removed once put into place, allowing for extra security
  • Hinge with six knuckles for better stability
  • Suitable for outdoor application
  • NB: Included screws are M6x12, suitable for a maximum sheet thickness of 4mm. For larger sheet thicknesses please use a correspondingly longer screw

Dimensions:

  • See datasheet

Material & Finish:

  • Hinge halves and bracket = Zinc die, black
  • Pin = POM, black
  • External hexagon head screw M6x12 DIN933 = zinc plated steel
  • Moulded seal and o-ring: NBR Perbunan
Download Datasheet
