Pair Heavy Duty Drawer Slides 227kg

Pair Heavy Duty Drawer Slides 227kg

SKU:3076-400

Regular price $70.80 AUD
Regular price $78.66 AUD Sale price $70.80 AUD
Sale Out of Stock
Prices include 10% GST. Shipping calculated at checkout.
Orders will dispatch within 2 business days. Click & Collect available (Tullamarine,VIC)

Prices include 10% GST. Shipping calculated at checkout.
Orders will dispatch within 2 business days. Click & Collect available (Tullamarine, VIC)

Features:

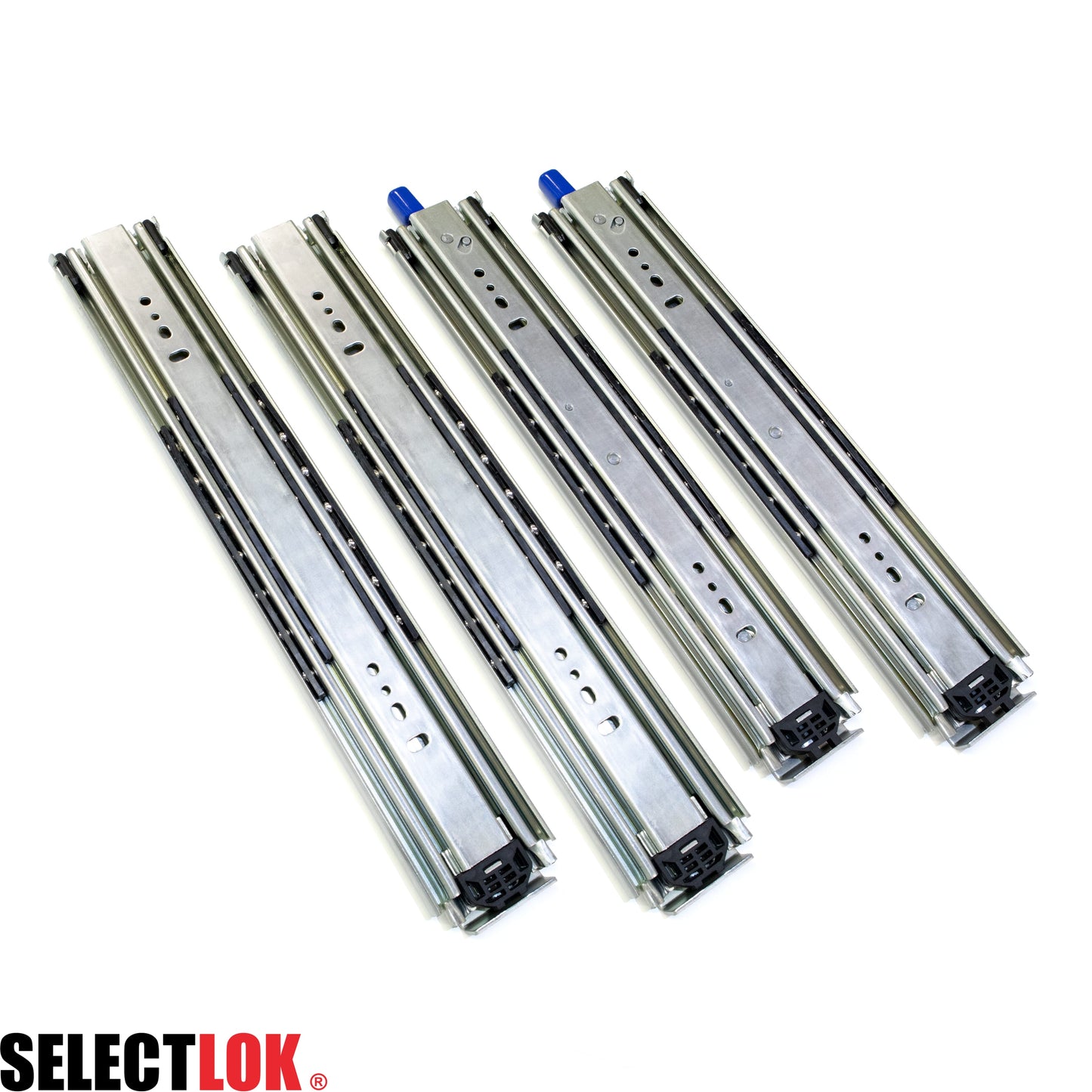

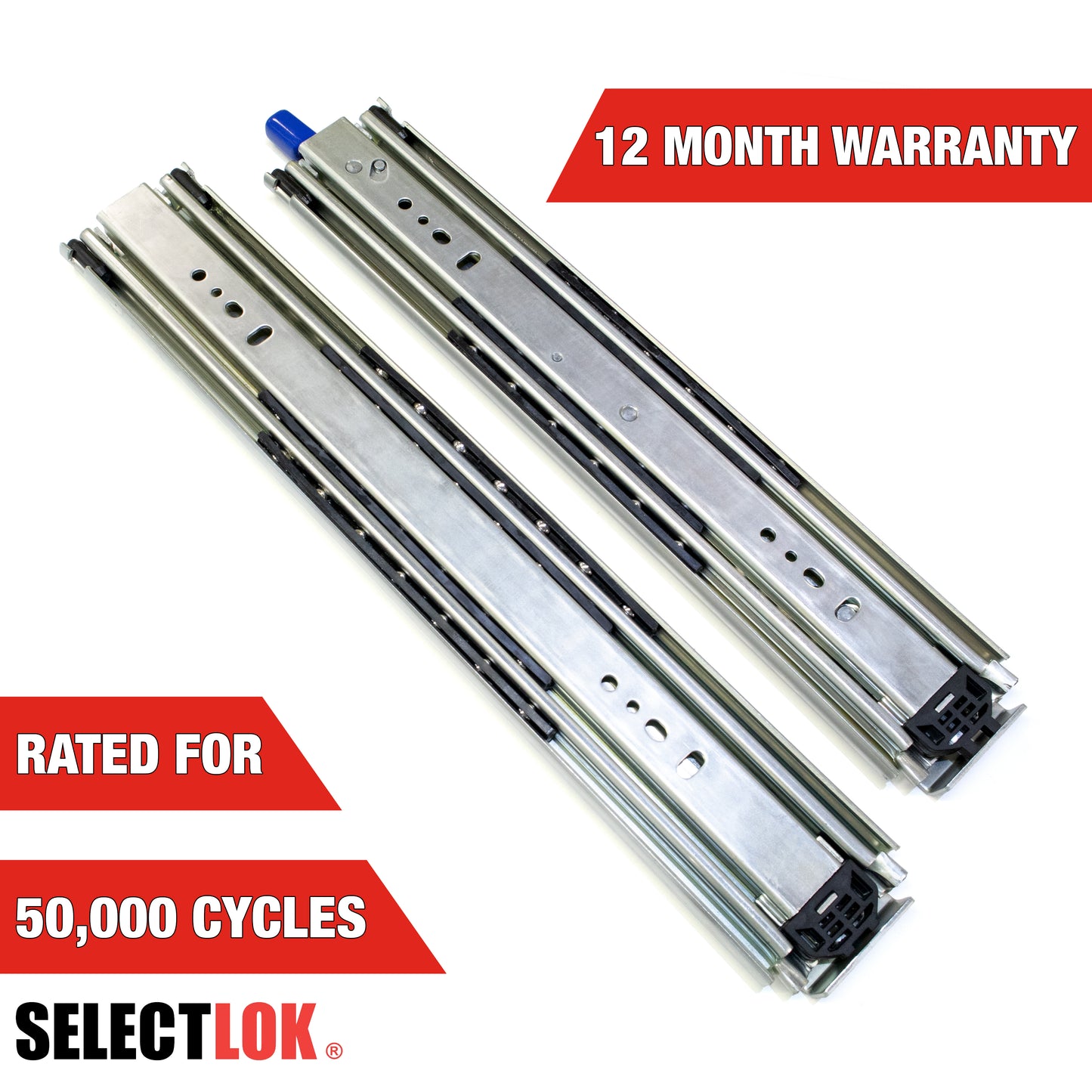

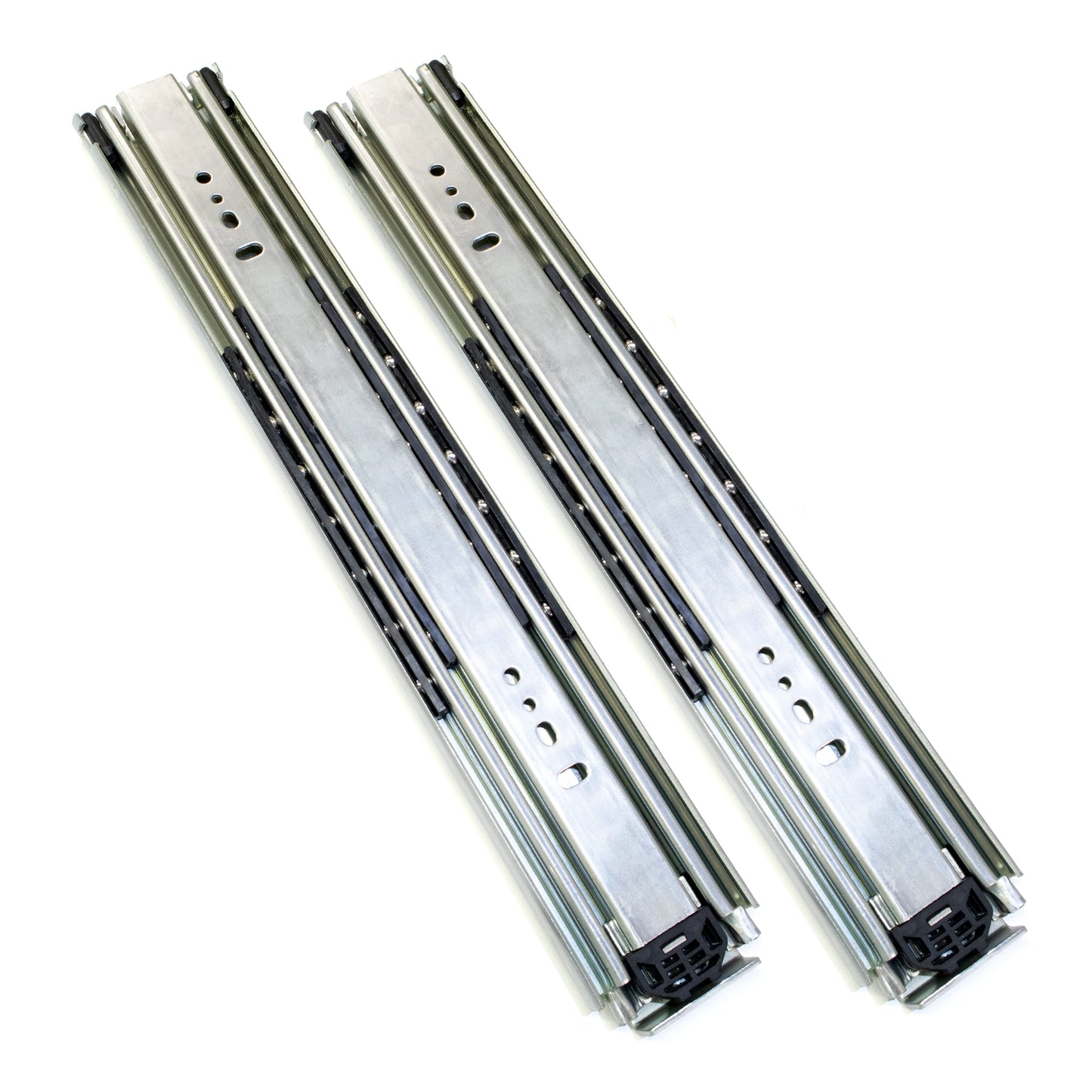

  • Sold as a pair (both locking or both non-locking)
  • Heavy duty slide

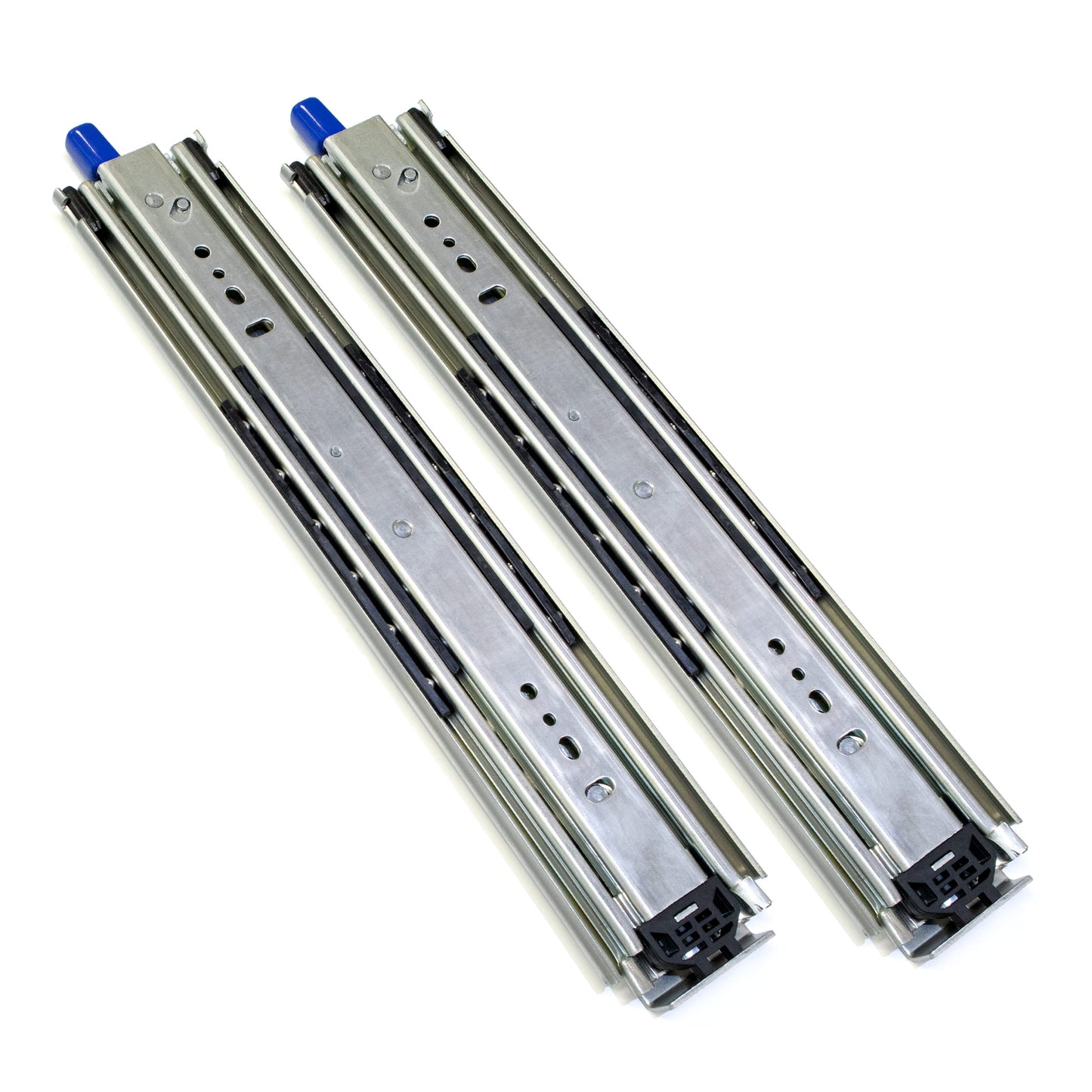

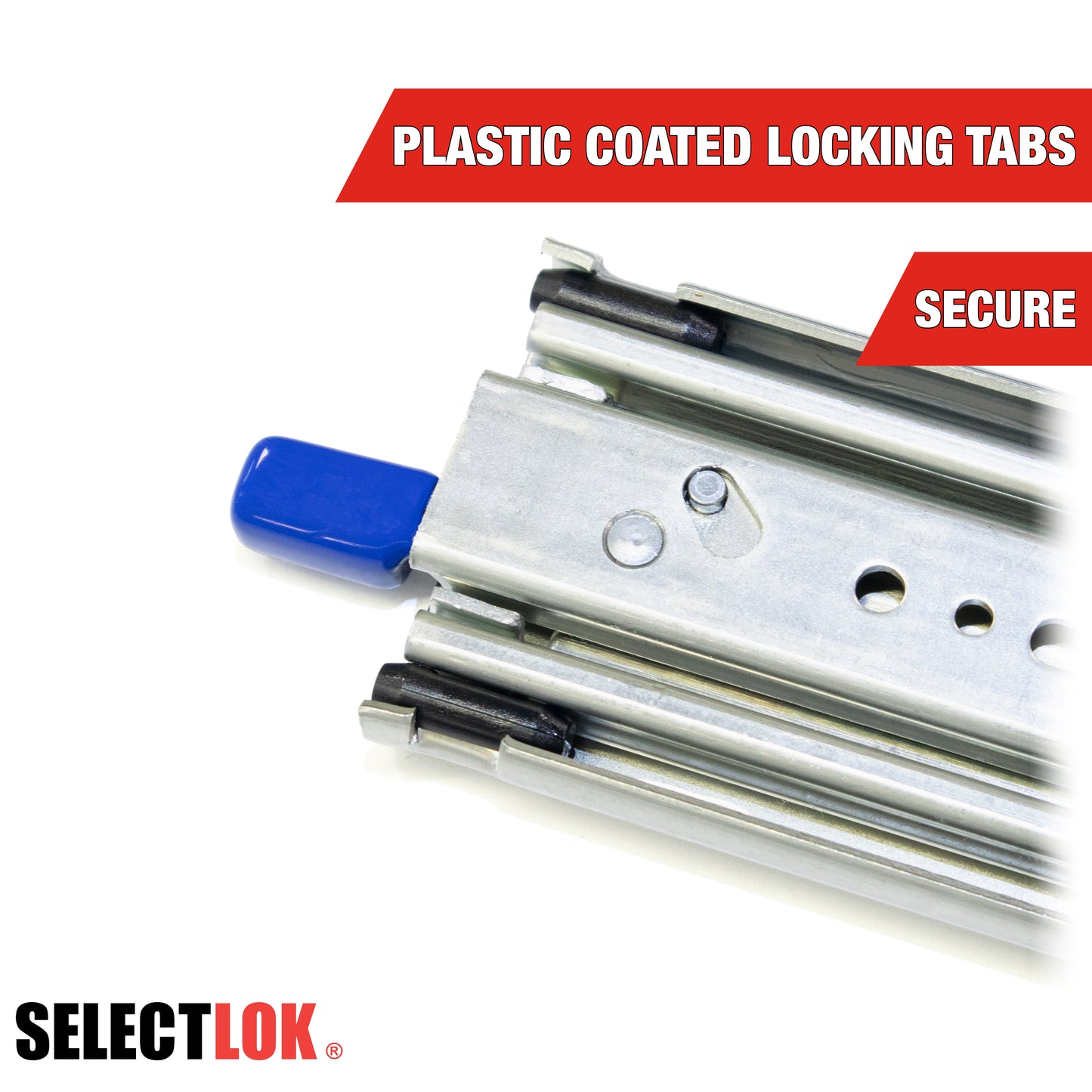

  • Locking option

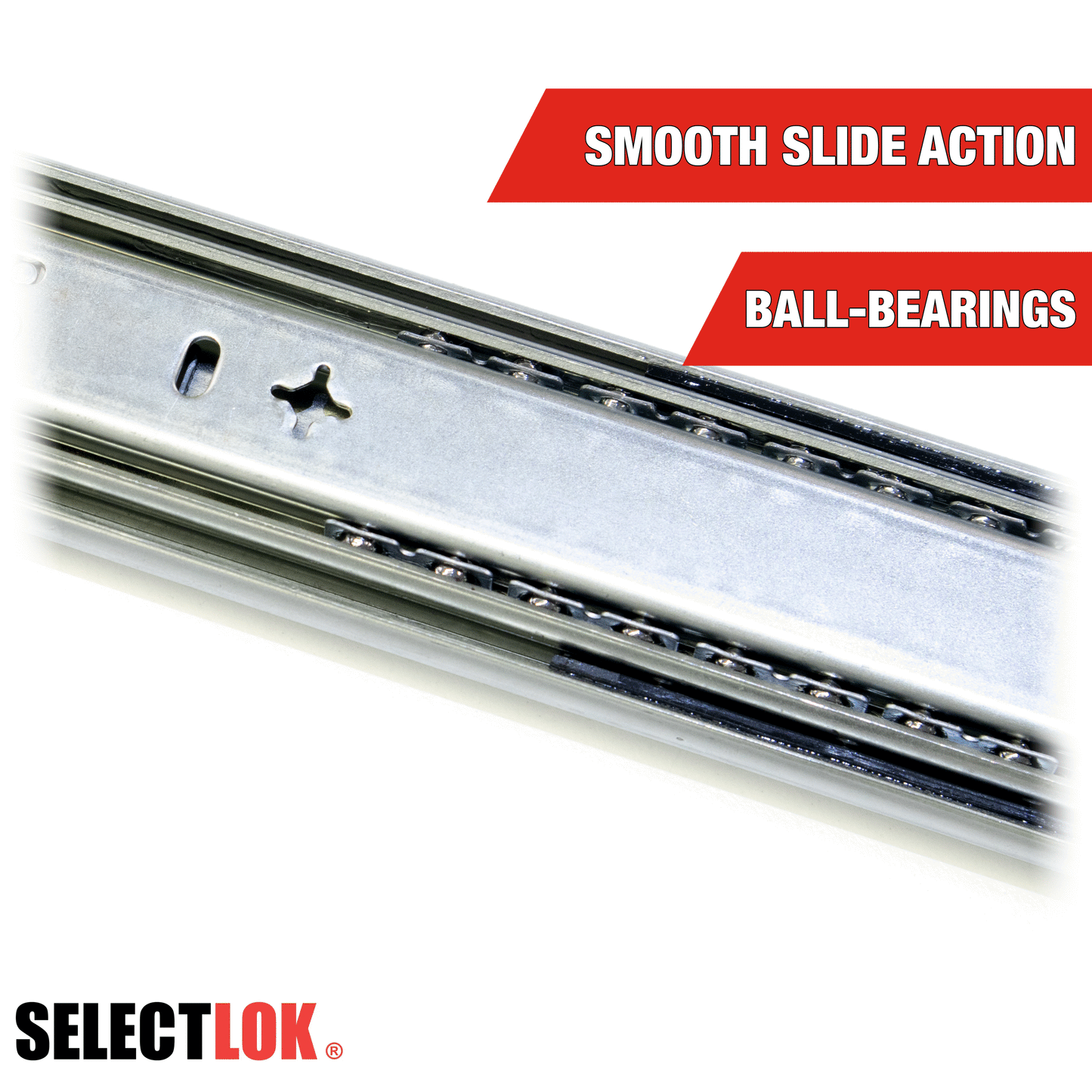

  • Ball bearings
  • Ultra smooth gliding motion with high rigidity and stability design
  • Durable damping system with fast response capability
  • Load capacity:  See link below
  • Length: Length measured (mm) is "closed," Extended length will be approx. double, locking tab adds an additional 25mm to closed length
  • Sizes do not include the locking tab (25mm)

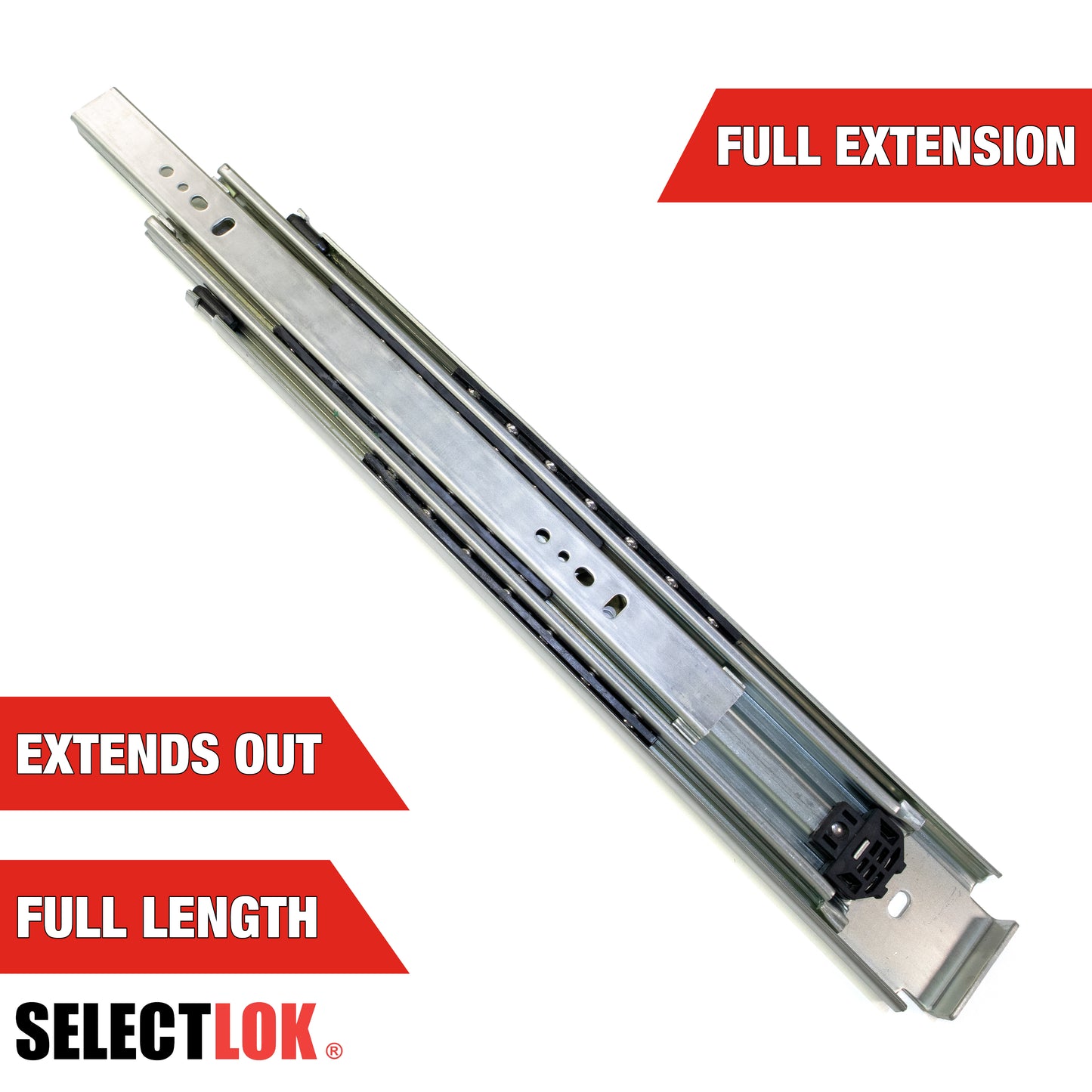

  • Travel: Full extension (inner slide rail extends the full length of the slide)

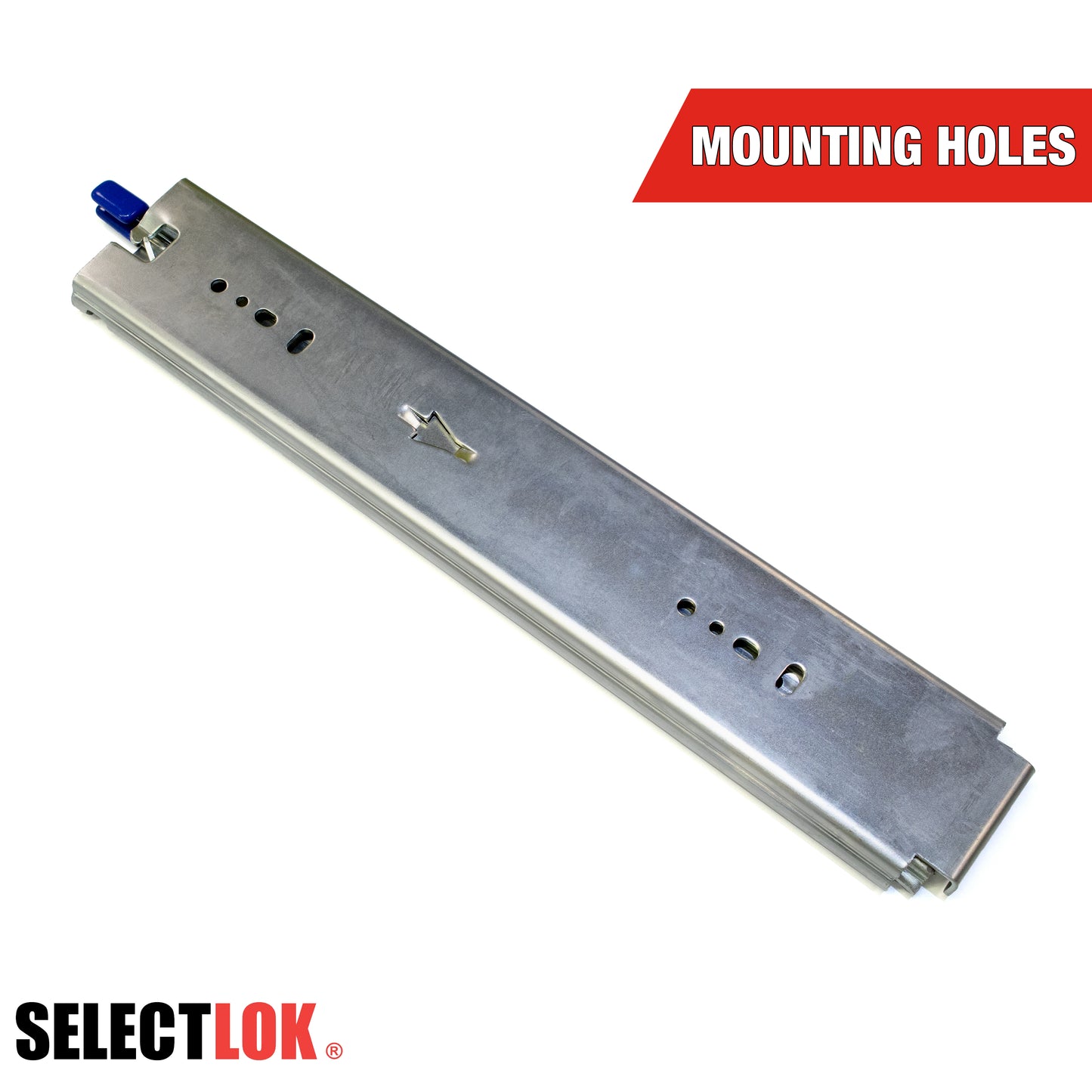

  • Mount: Side mount
  • Please note: these do not come with fixing screws

Dimensions:

  • Length: 400-1800mm
  • Height: 75.3mm
  • Width: 19.5mm

Material & Finish:

  • Material: Cold rolled steel, Clear zinc

View Datasheet

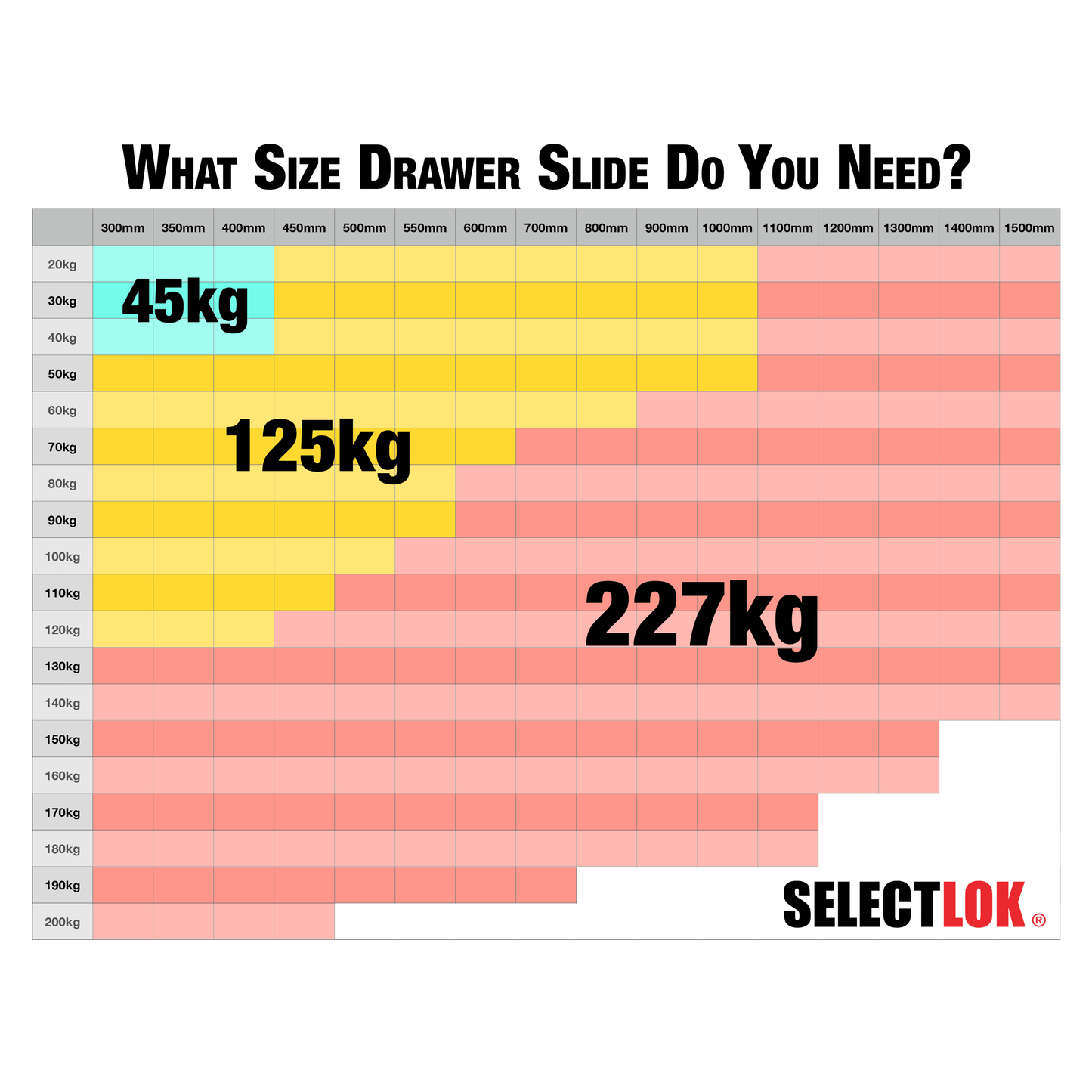

Understanding Your Drawer Slide's Load Ratings

Technical Specifications:

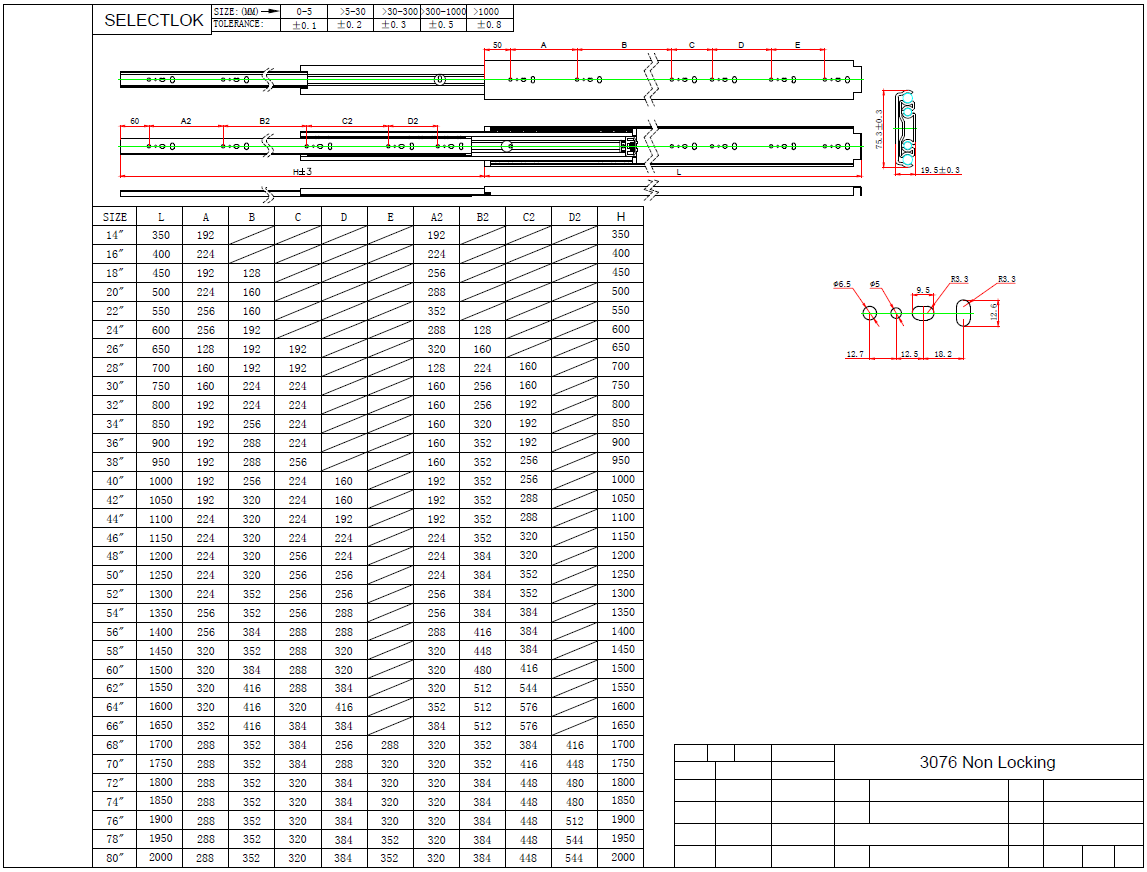

Non-Locking

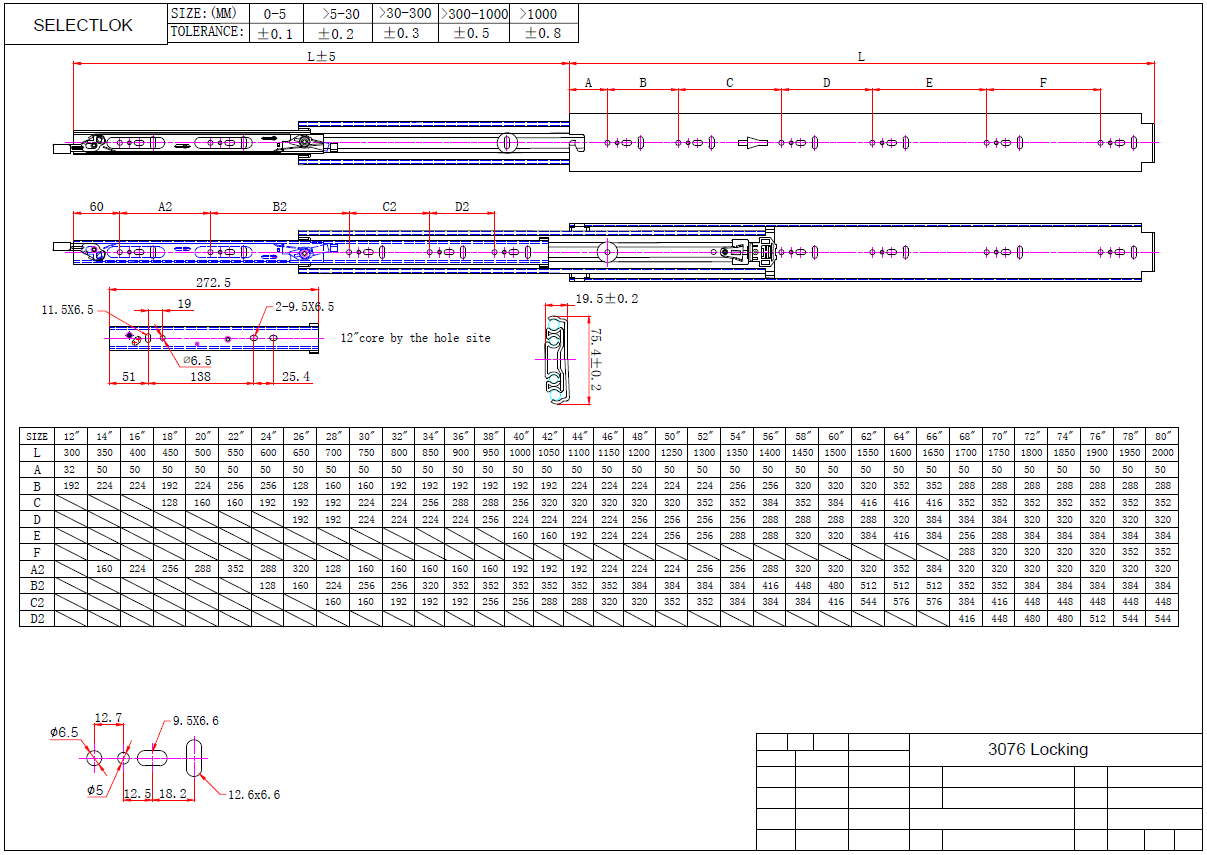

Locking
