Medium-Duty Drawer Slides - 125kg Rating (Pair)

Medium-Duty Drawer Slides - 125kg Rating (Pair)

SKU:3053-300

Regular price $14.50 AUD
Regular price $15.85 AUD Sale price $14.50 AUD
Sale Out of Stock
Prices include 10% GST. Shipping calculated at checkout.
Orders will dispatch within 2 business days. Click & Collect available (Tullamarine,VIC)

Prices include 10% GST. Shipping calculated at checkout.
Orders will dispatch within 2 business days. Click & Collect available (Tullamarine, VIC)

Features:

  • Sold as pairs: (both locking or both non-locking)
  • Medium-duty 125kg rating
  • Super quiet
  • Ultra smooth ball bearing, gliding motion
  • High rigidity design with enhanced stability
  • Durable dampening system with fast response capability
  • Variant lengths (mm) are as "closed,"
  • Extended lengths are approximately “double”
  • Advertised length does not include locking tabs (add +25mm)
  • Full travel extension (inner rail extends the full length of the slide)
  • Mounting: Side mount

Dimensions, Material & Finish:

  • Length: 300mm ~ 1000mm
  • Height: 53mm
  • Width: 18.7mm
  • Material: Cold rolled steel, clear zinc

Remarks:

  • Please note: Does not come with fixing hardware
  • Lever disconnect: When disconnecting, the levers move in opposite directions to release

View Datasheet

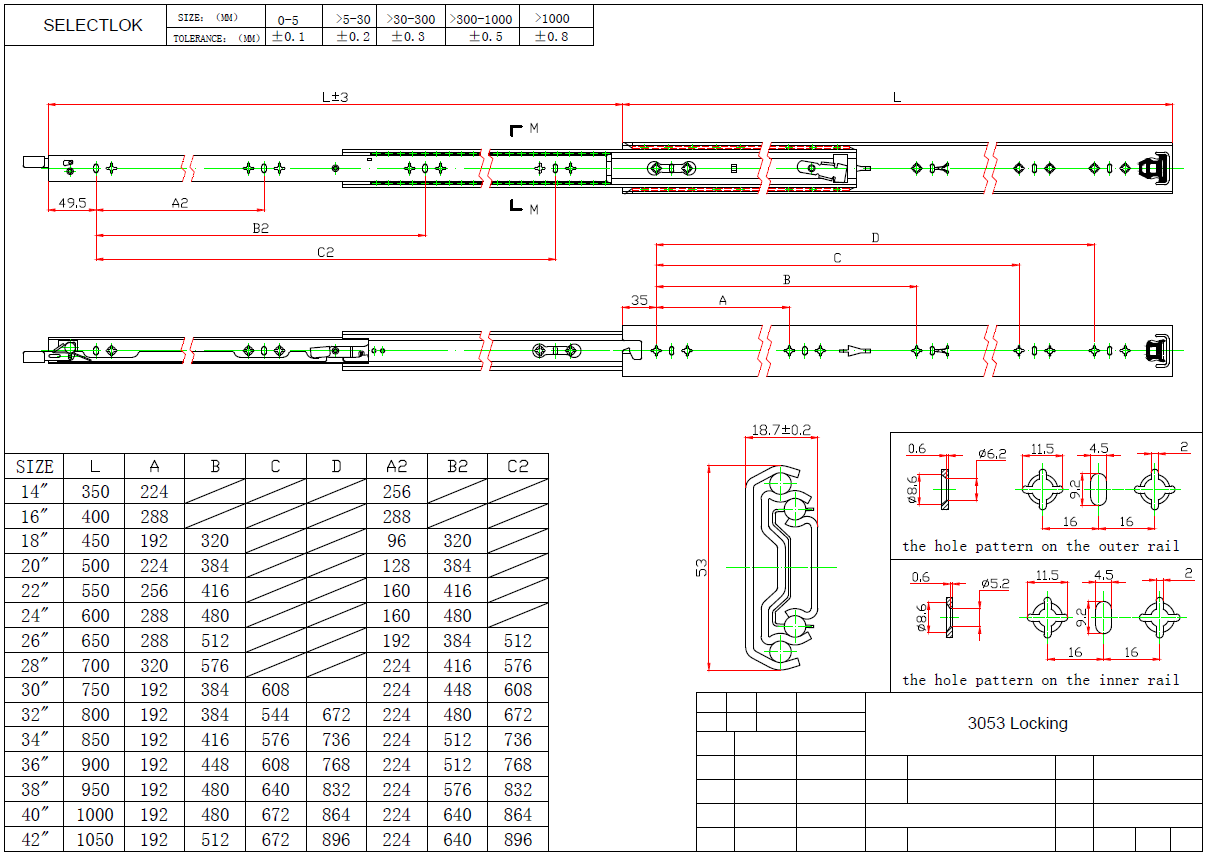

Technical Specs:

Non Locking

Locking
