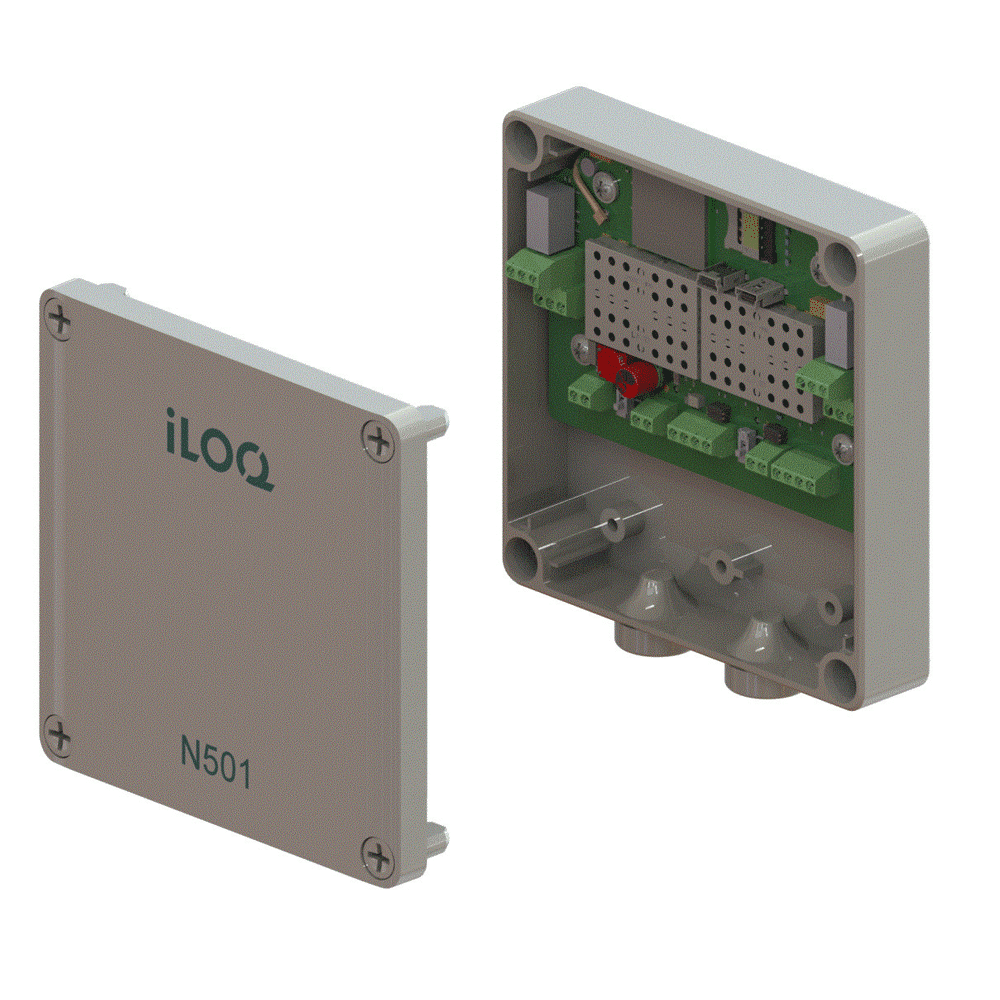

iLOQ S5 Standalone Door Module (includes SIM-card)
iLOQ S5 Standalone Door Module (includes SIM-card)SKU:N501
Price on Application
Please check availability: iLOQ products are generally custom ordered from the supplier based on individual project requirements and may not be readily available in stock at time of enquiry.
Couldn't load pickup availability
No Batteries
No Keys
No Maintenance
The Standalone Door Module is an independent device located in the vicinity of a door, and it controls devices installed on the door, such as a lock cylinder, an RFID/PIN reader, an electric lock, an electric strike plate, a magnet lock, and so on.The Door Module is connected to the iLOQ S5 server via a pre-installed 4G connection provided by iLOQ. The Door Module has several different use cases.
N501 Standalone Door Module Common Use Cases
- Connecting a calendar-controlled electric lock
- Connecting an RFID reader to control an electric lock
- Connecting an RFID reader to control an alarm system
- Connecting lock cylinders for remote management
- Connecting an RFID/PIN reader to control an electric lock by a key and PIN code combination
- Connecting a code-controlled electric lock
- Updating, sharing and collecting lock and key information such as access rights, time profiles, log events and lists of blocked keys through a D2D network with an RFID/PIN reader N504 or N505
- Door status monitoring
Connections
- CYLINDERS — Cylinder connections for 1 cylinder
- INPUTS - IN 1/IN 2 — Potential-free inputs have varying functions according to the selected operating mode
- INPUTS - EXT — A potential-free contact information for conditional access rights
- READER RS-485 — The reader bus controls the RFID/PIN reader N504 or N505
- RELAY K1 — Relay output for controlling an external device
- FAULT RELAY K2 – To allow fault information to be sent to an external system (option)
- SIM card holder – Pre-installed SIM card for server connection
