RENOGY CORE 12V 200W Rigid Solar Panel

RENOGY CORE 12V 200W Rigid Solar Panel

SKU:RSP200D-G3-AU

Regular price $300.00 AUD
Regular price Sale price $300.00 AUD
Sale Out of Stock
Prices include 10% GST. Shipping calculated at checkout.
Orders will dispatch within 2 business days. Click & Collect available (Tullamarine,VIC)

At Selectlok, we have access to the entire range of RENOGY products, if you are looking for a specific component, or seeking advice for a part needed in your project, that isn't advertised on our website please get in touch with us here, or via the button below & we will be able to help you out with supplying what you require. PLEASE NOTE: RENOGY products are NOT available for Click & Collect or In-Store Pickup.

Renogy 200W Monocrystalline Solar Panel can provide about 1000 Watt-hours of electricity per day under 5-6 hours of direct sunlight, with a guaranteed positive output tolerance of 0%-3%. Renogy's Grade A+ quality panel maximizes overall efficiency through improved conductivity of 9 busbars and enhanced light reflection of PERC technology. Half-cut cells and bypass diodes help protect the panel from hotspot overheating, enabling it to operate even in the presence of accidental shading.

Features:

  • 1000 Watt-hours of electricity per day(5-6 hours of direct sunlight)
  • 10-year workmanship warranty, 25-year 80% output warranty.
  • 9 busbars and PERC cell technology optimize overall efficiency.
  • Durable design ensures long-lasting use in challenging

Specifications:

  • Max power at STC: 200W
  • Short circuit current: 11.05A
  • Optimum operating current: 10.42A
  • Maximum series fuse rating: 20A

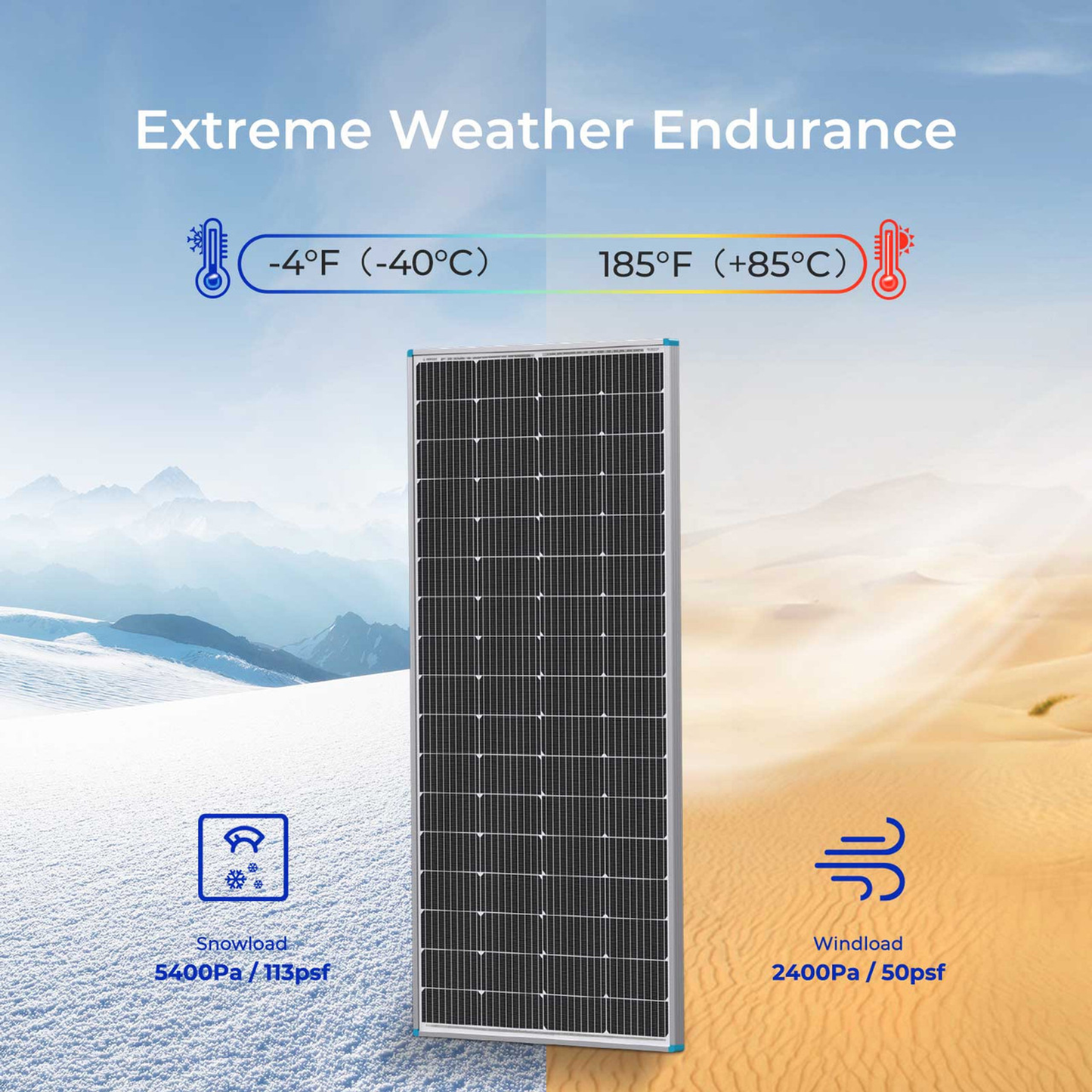

  • Operating temperature: -40C ~ 90C Degrees Celsius
  • Open circuit voltage: 23V
  • Optimum operating voltage: 19.2V
  • Maximum system voltage: 600 VDC UL
  • Module efficiency: 19.2%
  • Output cable: 13 AWG (2.6 ft long)
  • Junction box: IP65
  • Solar cells: 68 cells ((2+2) *17)
  • Connectors: solar connectors

Weight & Dimensions:

  • Size: 1491mm x 699mm x 35mm
  • Weight: 12kg

View Datasheet
