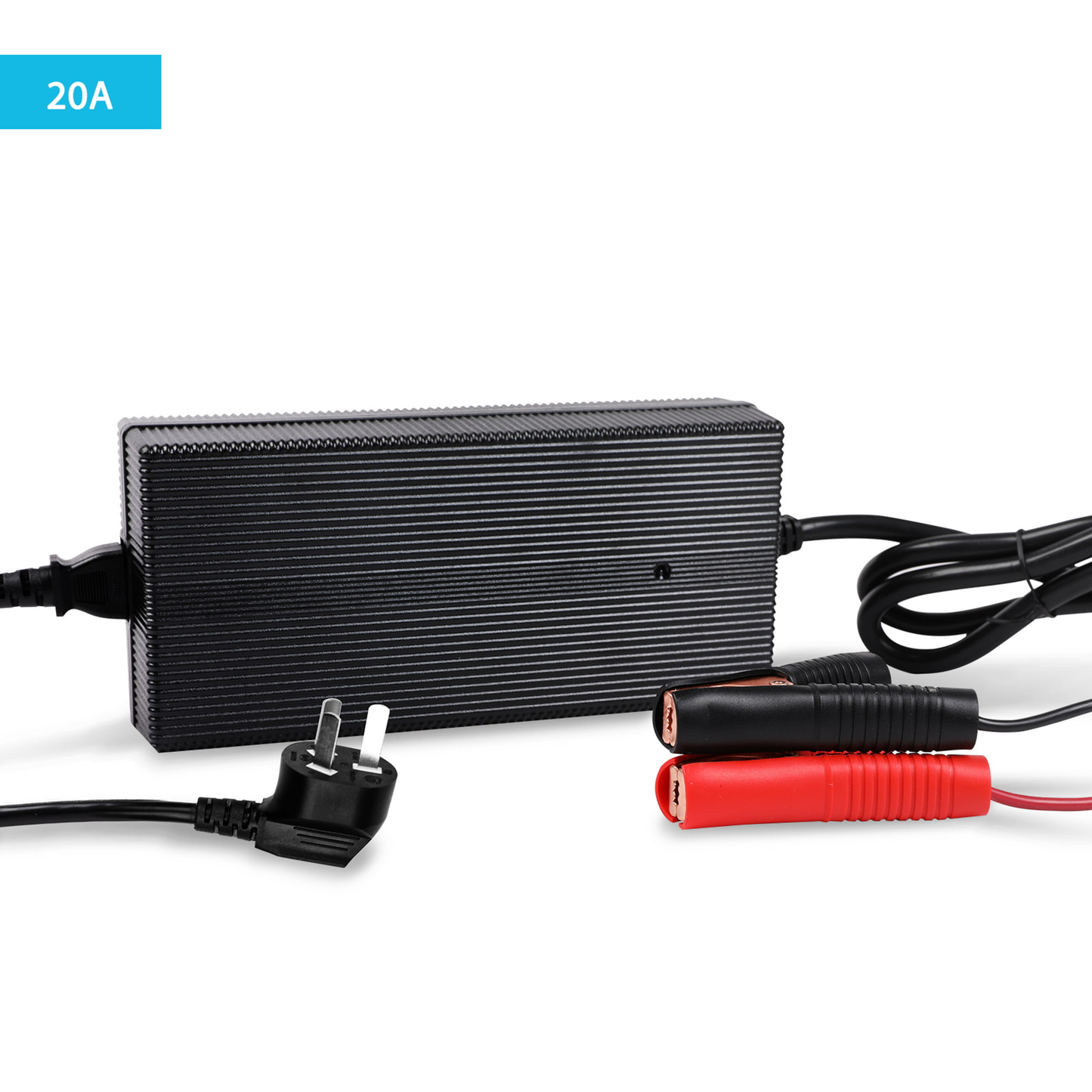

RENOGY CORE 12V 20A AC-DC Battery Charger
RENOGY CORE 12V 20A AC-DC Battery Charger
SKU:RBC20A1P-G2-AU
Orders will dispatch within 2 business days. Click & Collect available (Tullamarine,VIC)
Prices include 10% GST. Shipping calculated at checkout.
Orders placed after Sunday 15th December will dispatch after Monday 6th January 2025.
PLEASE NOTE: RENOGY products are NOT available for Click & Collect or In-Store Pickup.
At Selectlok, we have access to the entire range of RENOGY products, if you are looking for a specific component, or seeking advice for a part needed in your project, that isn't advertised on our website please get in touch with us here, or via the button below & we will be able to help you out with supplying what you require.
Couldn't load pickup availability
Renogy 12V 20A AC charger is designed for lithium batteries (LifePO4 Battery). The charger has a 3-stage intelligent charging design (CC/CV/trickle) to ensure it charges the lithium battery quickly and efficiently. This battery charger has 5-layer protection functions to realize comprehensive monitoring and protection of the battery. This charger is suitable for RVs, motorbikes, boats, and campervan.
Features:
-

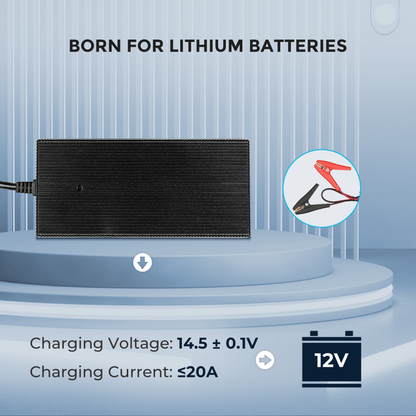

Born for Lithium Batteries
- This battery charger is designed for lithium batteries. When the lithium battery triggers the low temperature/low voltage while charging, the BMS will turn on the protection, which means the lithium battery cannot be charged and needs to be activated. This charger provides a lithium battery activation function that quickly exits the protection mode and recharges. Along with CE and UKCA certification, it provides a safe and stable AC charging environment.
-
Strong Adaptability
- This battery charger has a wide AC input voltage range, 100-240 VAC 50/60Hz, which is compatible with various needs. The charger comes with an alligator clip battery charging cable which is designed to allows users to quickly establish the connection between the battery and the charger.
-
Smart Charging
- The charger has a 3-stage intelligent charging design: high current (cc), constant voltage (cv), trickle. It can accurately identify battery voltage and automatically switch charging mode and provide fast and efficient charging for lithium batteries; the charger's efficiency can reach up to 92%.
-
Build-in Safety Protection
- The charger has five built-in protection functions to ensure charging safety, including short circuit protection, over-current protection, over-voltage protection, under-voltage protection, and reverse polarity protection. The charger's indicator light can remind the wrong charging status and achieves all-around monitoring and protection.
-
Easy to Use

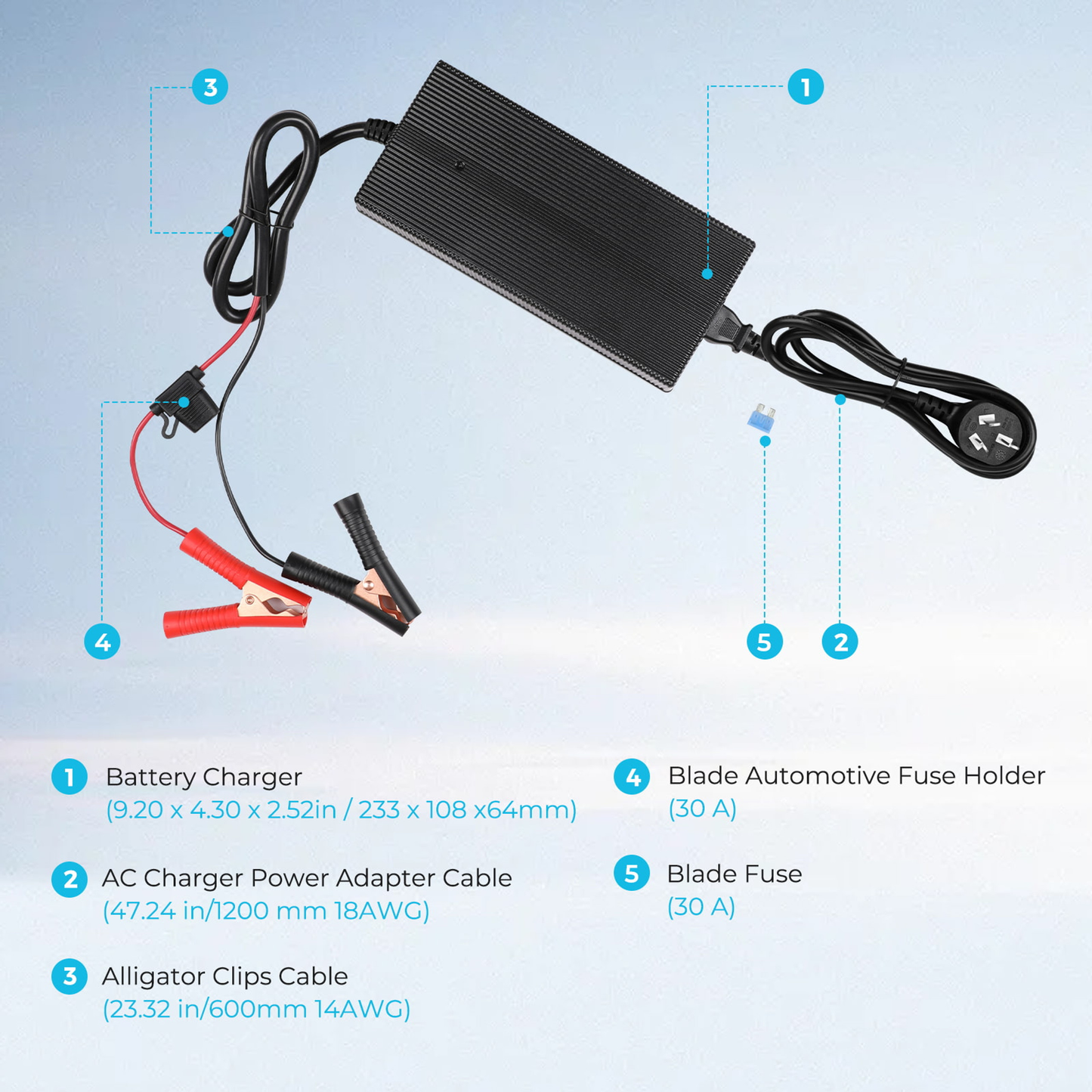

- 3-quick-step to quickly establish the connection of battery and charger, the steps are as follows:
-
- Connect the negative output terminal of the charger to the negative terminal of the battery
- Connect the positive output terminal of the charger to the positive terminal of the battery
- Connect the AC Charger Power Adapter Cable to the AC port of the charger
Specification:
- Input Voltage: 100-240 VAC ~ 50/60Hz
- Output Voltage: 14.5 ± 0.1 VDC
- Minimum Battery Voltage: 8V
- Operating temperature range: -29°C~45°C
- Storage Temperature: -40°C~75°C
- Self-Consumption: 50mA
- Cable Length: Approx 39in / 99cm
- Cable Gauge: 12 AWG
- Input Amps: 5A Max
- Output Amps: 20A
- Efficiency: 93%
-
Certifications: CE, ETL, FCC, TUV
- Protection: Overcurrent Protection (Fuse 250V 10A), Short Circuit Protection
Weight & Dimensions:
- Size: 233mm x 108mm x 64mm
- Weight: 1.7kg
