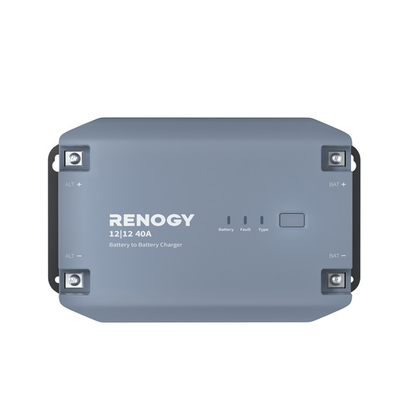

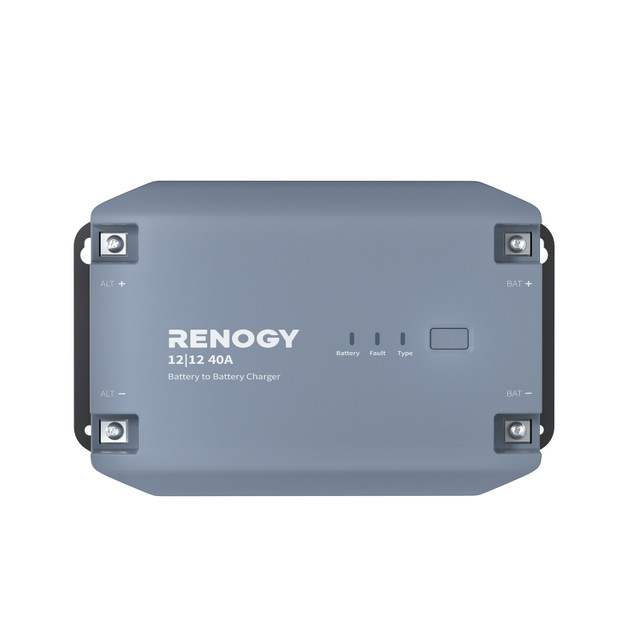

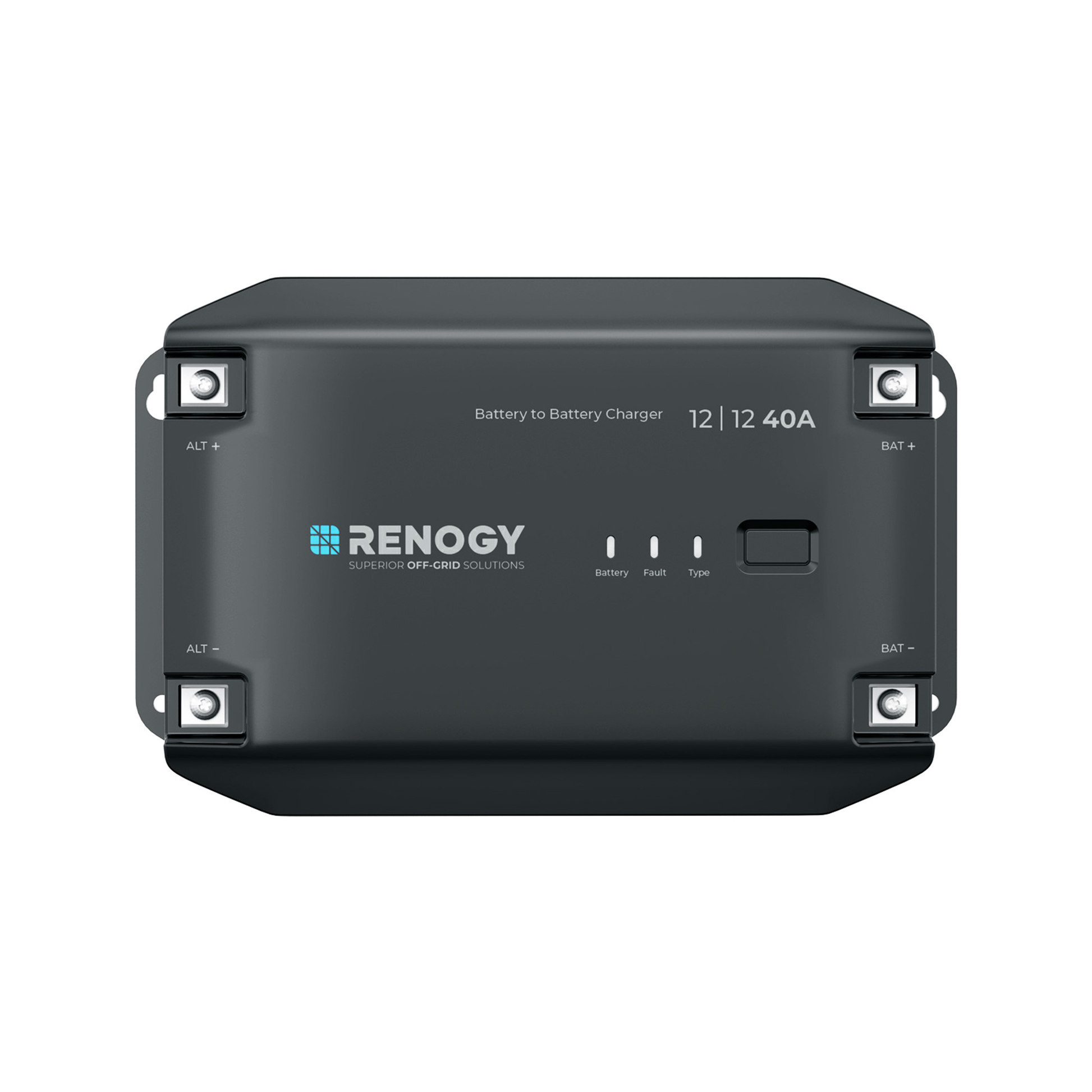

RENOGY CORE 12V 40A DC-DC On-Board Battery Charger
RENOGY CORE 12V 40A DC-DC On-Board Battery Charger
SKU:RBC40D1U-G2-AU
Orders will dispatch within 2 business days. Click & Collect available (Tullamarine,VIC)
Prices include 10% GST. Shipping calculated at checkout.
Orders placed after Sunday 15th December will dispatch after Monday 6th January 2025.
PLEASE NOTE: RENOGY products are NOT available for Click & Collect or In-Store Pickup.
At Selectlok, we have access to the entire range of RENOGY products, if you are looking for a specific component, or seeking advice for a part needed in your project, that isn't advertised on our website please get in touch with us here, or via the button below & we will be able to help you out with supplying what you require.
Couldn't load pickup availability
Introducing Renogy 12V 40A DC to DC Battery Charger, the second generation of the DCC series. This innovation offers the ultimate driving charging experience with smart control. Compatible with smart and traditional generators, this 12V onboard battery charger ensures efficient energy utilization while safeguarding vehicle batteries. With multiple electronic protections, the product offers a reliable driving charging experience, achieving up to 94% charging efficiency. Integrated with intelligent charging logic, it seamlessly optimizes charging processes. Furthermore, with the remote monitoring feature via the app, you can easily keep track of the generator system's status. Elevate your driving charging experience with Renogy, whether you're exploring the great outdoors or living the van life, it is your dependable companion.
Features:

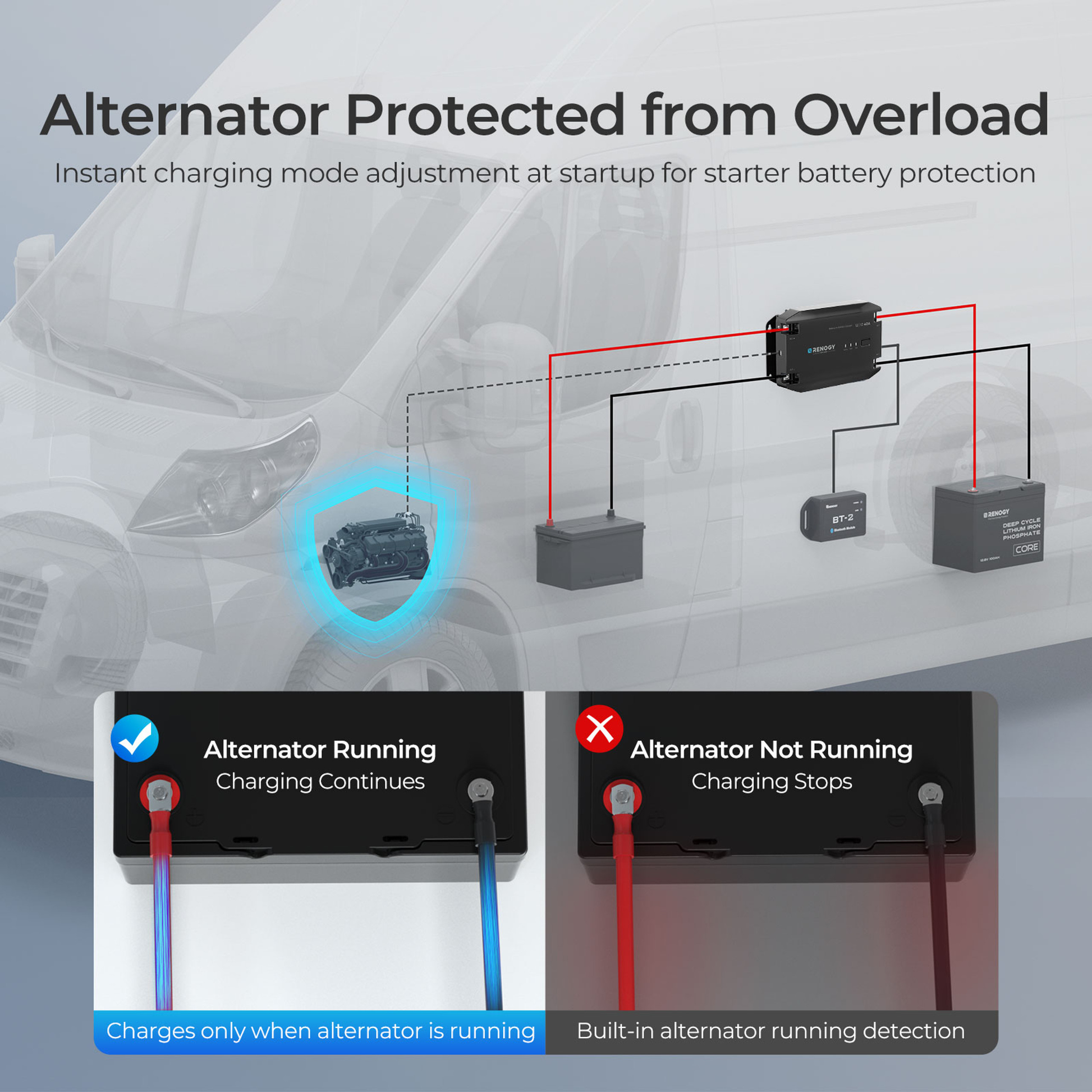

- Alternator running detection safeguards the starter battery.

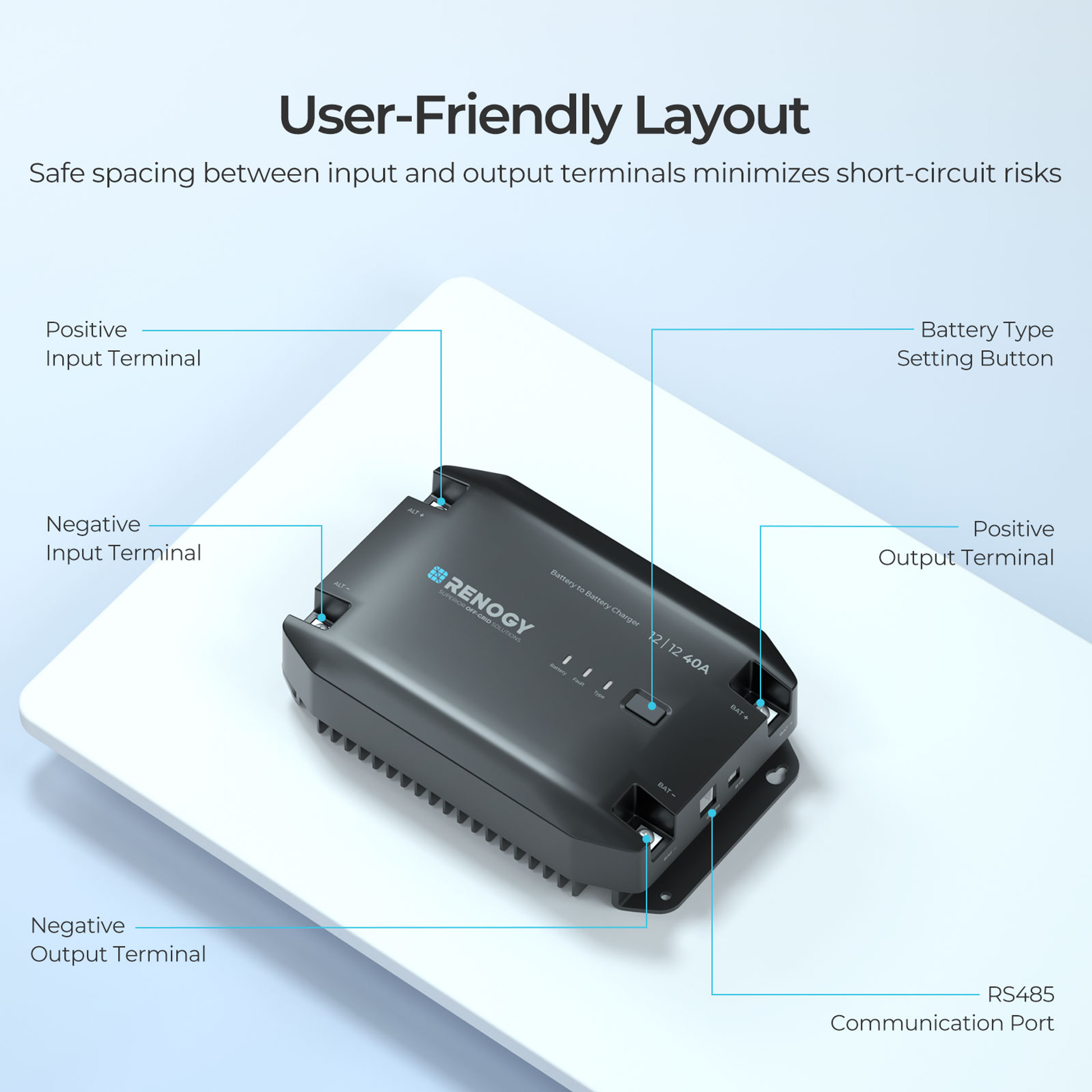

- Simple and compact layout for easy installation.
- BT-2 Bluetooth enables remote monitoring, records 365-day data.
- Advanced protections ensure efficient & safe charging.
- Li Battery Activation On/Off offers customizable performance.
Specifications:
- Maximum Output Current Rating: 40A
- System Voltage: 12V-12V

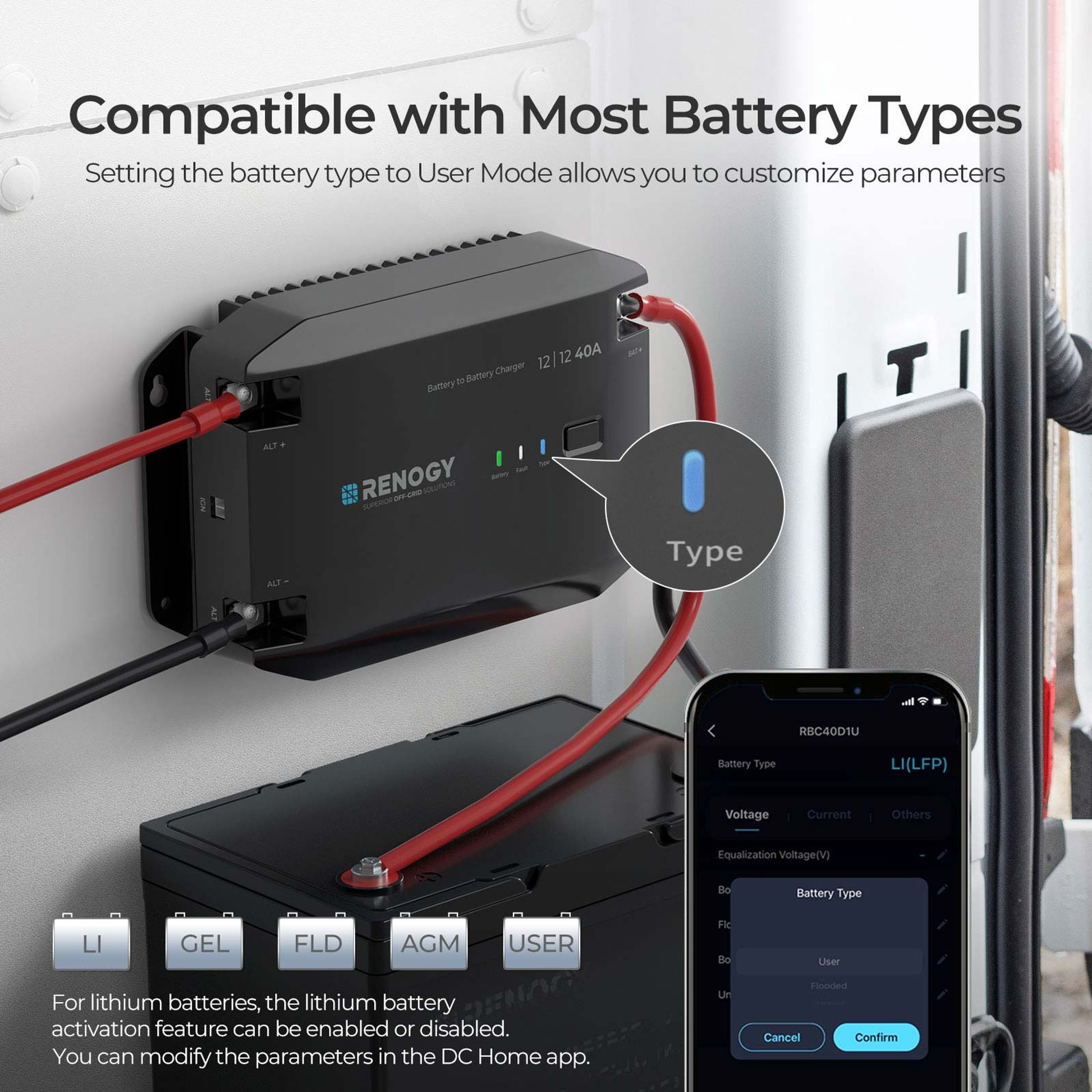

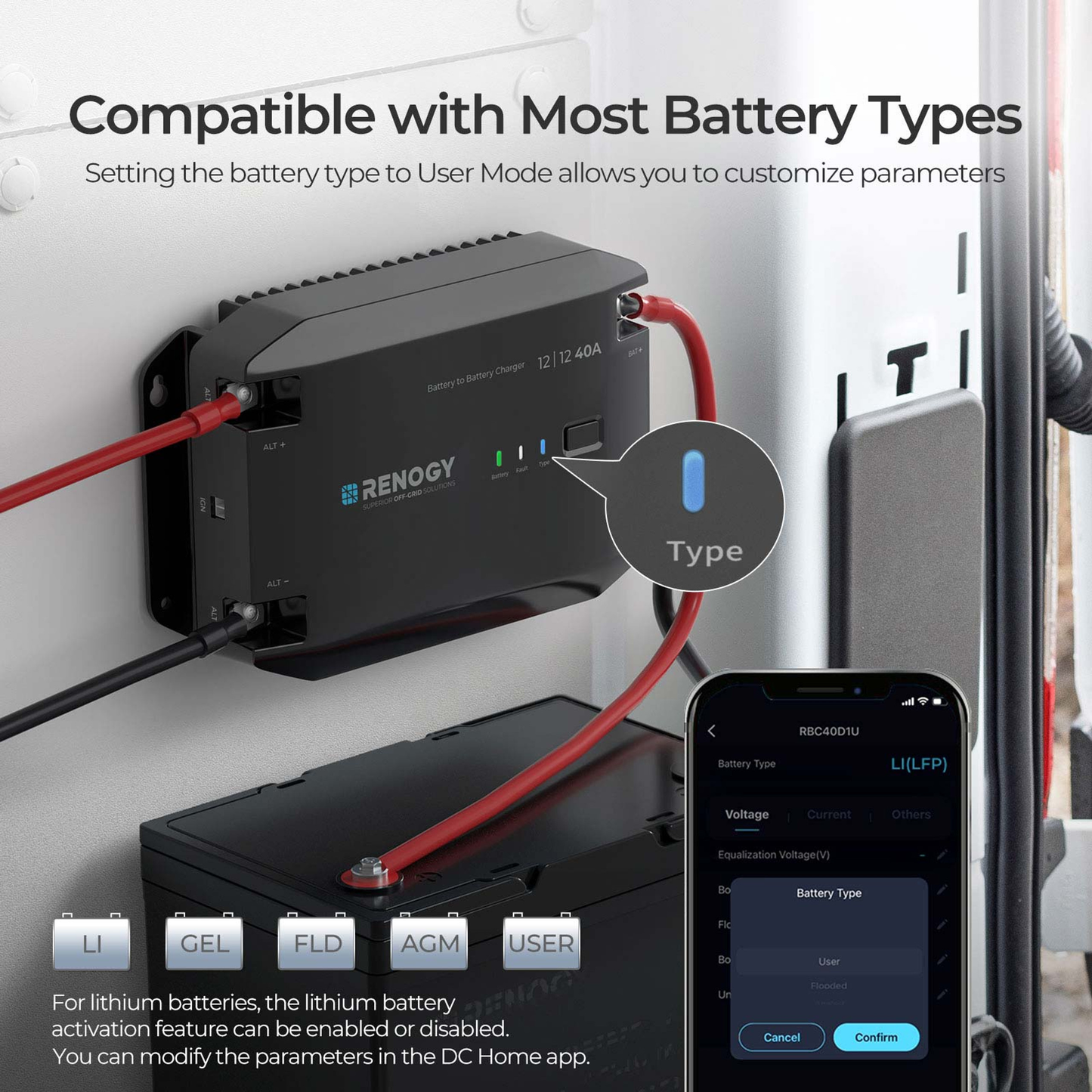

- Battery Types: AGM, Gel, Flooded, Lithium-iron Phosphate, User
- Temperature Compensation: -3mV / ℃ / 2V (Non-Lithium), 0mV / ℃ / 2V; no compensation (Lithium)
- Output Fuse Rating: 50A
- Terminal Range: 8AWG - 6AWG

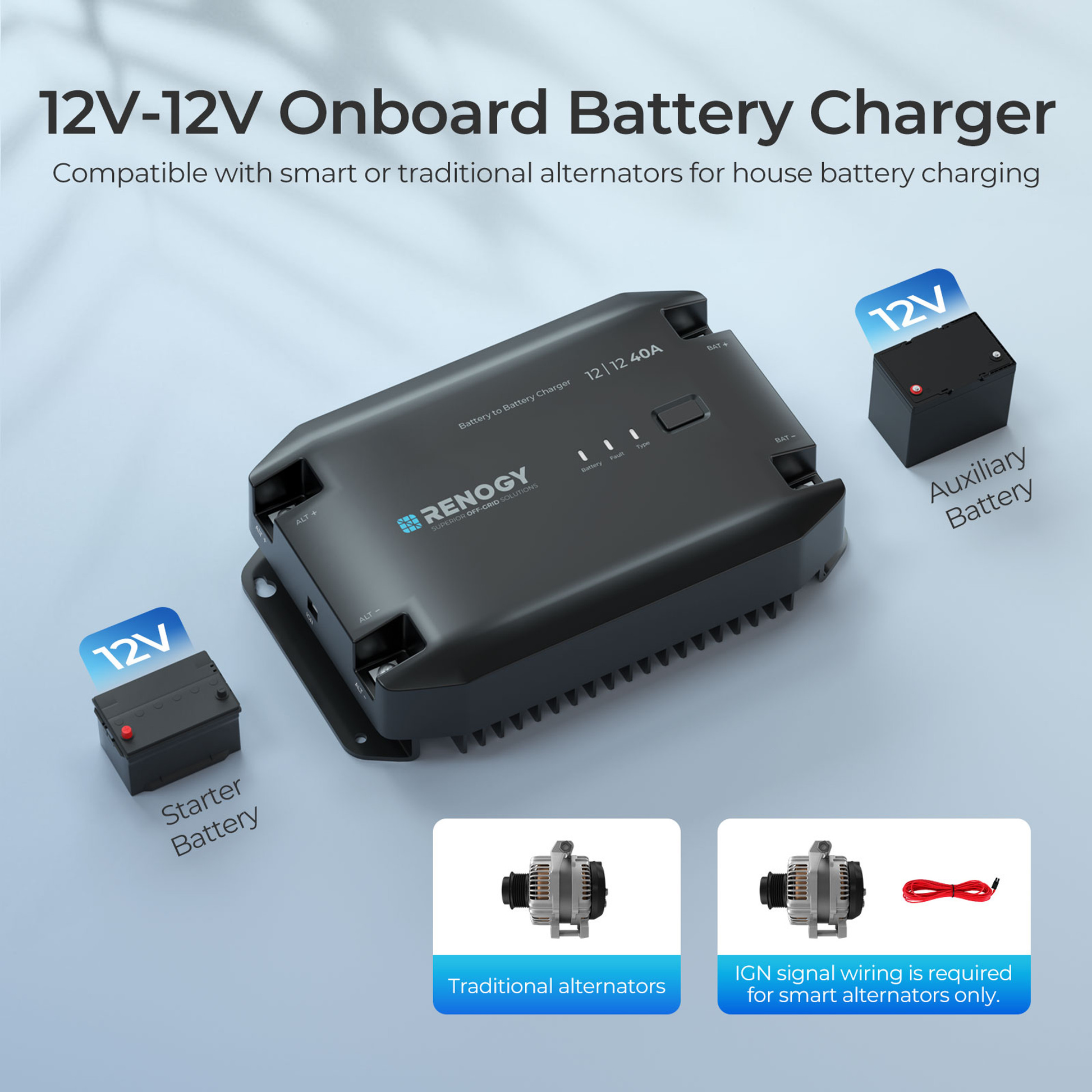

- Alternator Input Voltage: "Traditional Alternator: 13.2-16.0VDC Smart Alternator (Euro 6): 12-16.0VDC"
- Output Power: 584W
- Input Fuse Rating: 60A
- Charging Efficiency: 94%
- Idle Power Consumption: ＜15mA
- Operating Temperature Range: -25 ℃ - 60℃
- Storage Temperature Range: -40 ℃ - 85℃
- Enclosure Rating: 0%- 95%, no condensation
- Maximum Operating Altitude: 3000m
- Certification: CE/RoHS/FCC
- Communication Protocol: RS485 Communication
- Grounding Common Negative
- Protection: Reverse Polarity Protection/Overvoltage Protection/Over Discharge Protection/Overcurrent Protection/Over Temperature Protection
Weight & Dimensions:

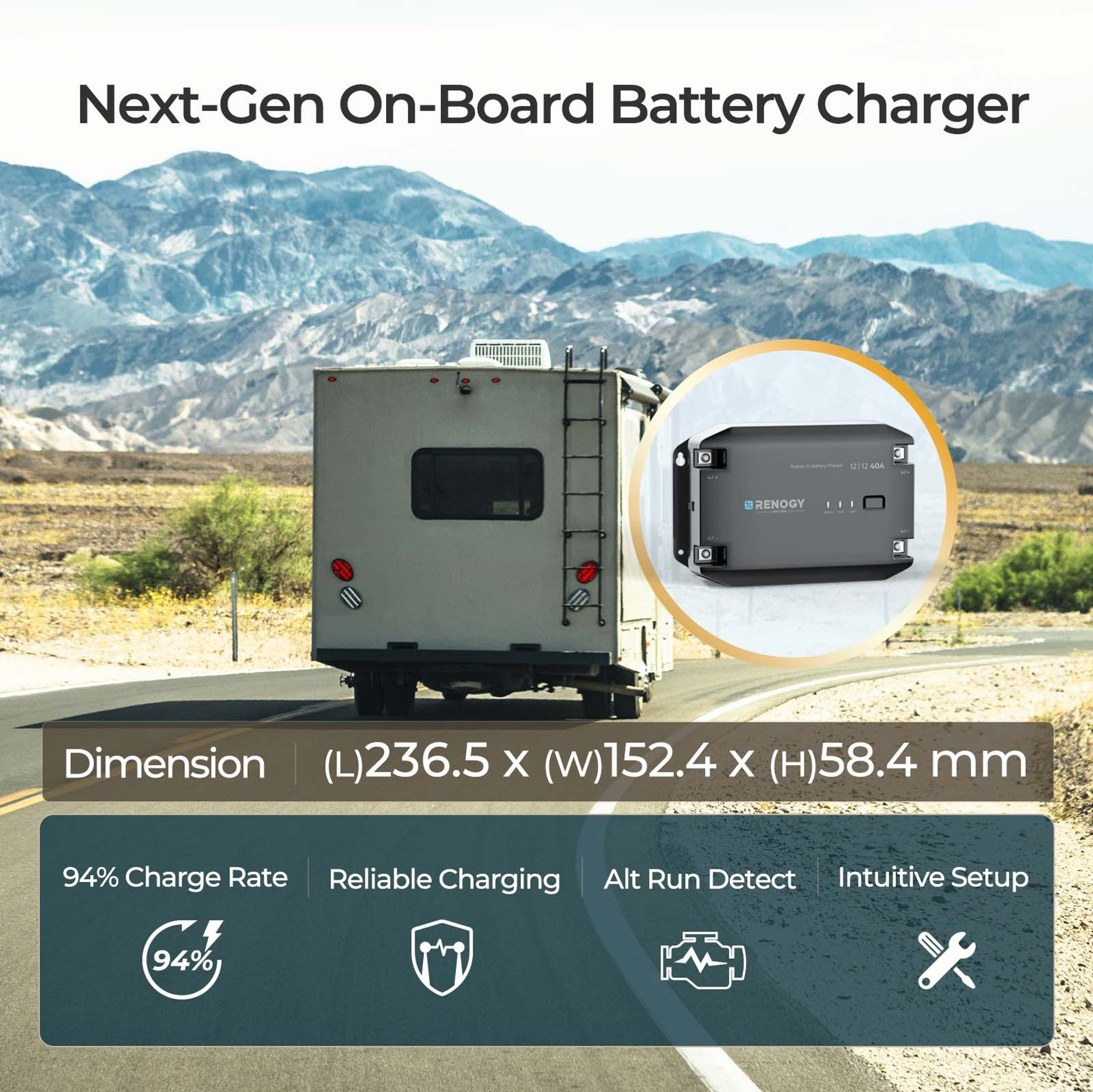

- Size: 236.5 mm x 152.5mm x 60.5 mm
- Weight: 1.88kg
