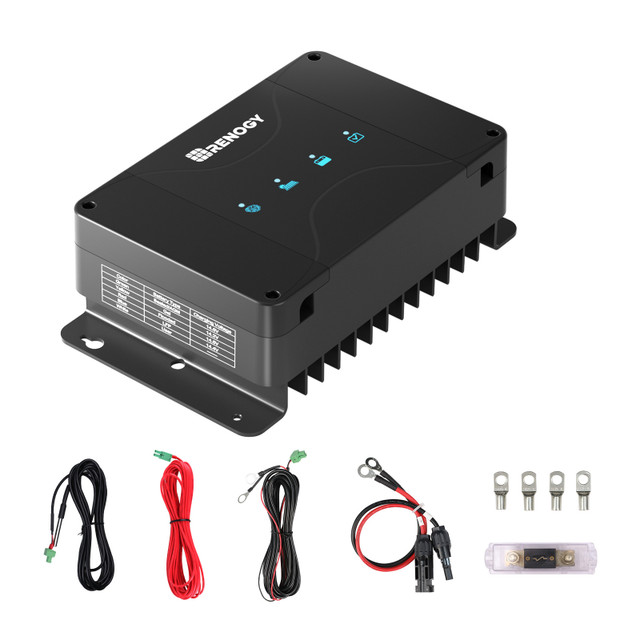

RENOGY CORE 12V 50A DC-DC On-Board Battery Charger with MPPT
RENOGY CORE 12V 50A DC-DC On-Board Battery Charger with MPPT
SKU:RBC50D1S-G6-AU
Regular price
$336.00 AUD
Regular price
Sale price
$336.00 AUD
Unit price
/
per
Prices include 10% GST. Shipping calculated at checkout.
Orders will dispatch within 2 business days. Click & Collect available (Tullamarine,VIC)
Orders will dispatch within 2 business days. Click & Collect available (Tullamarine,VIC)
At Selectlok, we have access to the entire range of RENOGY products, if you are looking for a specific component, or seeking advice for a part needed in your project, that isn't advertised on our website please get in touch with us here, or via the button below & we will be able to help you out with supplying what you require. PLEASE NOTE: RENOGY products are NOT available for Click & Collect or In-Store Pickup.
Couldn't load pickup availability
Renogy 12V 50A DC-DC on-board battery charger with MPPT
Specification:
- Model: RBC50D1S
- Communication Protocol: RS485
- Input Voltage: 50 VDC
- Output Voltage: 9-16 VDC
- Maximum Output Current Rating: 0A
- Battery Types: AGM/SLD, GEL, FLD, LI, USER
- Temperature Compensation: -3mV / ℃ / 2V (Non-Lithium), 0mV / ℃ / 2V; no compensation (Lithium)
- Operating Temperature Range: -35 ℃ - 65℃
- Storage Temperature Range: -40 ℃ - 80℃
- Output Fuse Rating: 75-100A
- Input Fuse Rating: 75-100A
- Idle Power Consumption: ＜30mA
- Charging Efficiency: 94%
- Output Power: 660W
- Terminal Range:>8AWG - 4AWG
- Grounding: Common Ground
- Certification: CE/RoHS/FCC Part 15 Class B; ETL listed to UL 1741 & CSA C22.2
- Protection: Reverse Polarity Protection/Overvoltage Protection/Over Discharge Protection/Overcurrent Protection/Over Temperature Protection
Weight & Dimensions:
- Size: 244mm x 146mm x 96mm
- Weight: 1.86kg
