RENOGY CORE 200 Watt Solar Starter Accessory Bundle Kit

RENOGY CORE 200 Watt Solar Starter Accessory Bundle Kit

RKIT200ACB-G1-AU

$110.00 AUD
$110.00 AUD
Sale Out of Stock
Prices include 10% GST. Shipping calculated at checkout.
Orders will dispatch within 2 business days. Click & Collect available (Tullamarine,VIC)

Prices include 10% GST. Shipping calculated at checkout.
Orders placed after Sunday 15th December will dispatch after Monday 6th January 2025.

PLEASE NOTE: RENOGY products are NOT available for Click & Collect or In-Store Pickup.

At Selectlok, we have access to the entire range of RENOGY products, if you are looking for a specific component, or seeking advice for a part needed in your project, that isn't advertised on our website please get in touch with us here, or via the button below & we will be able to help you out with supplying what you require.

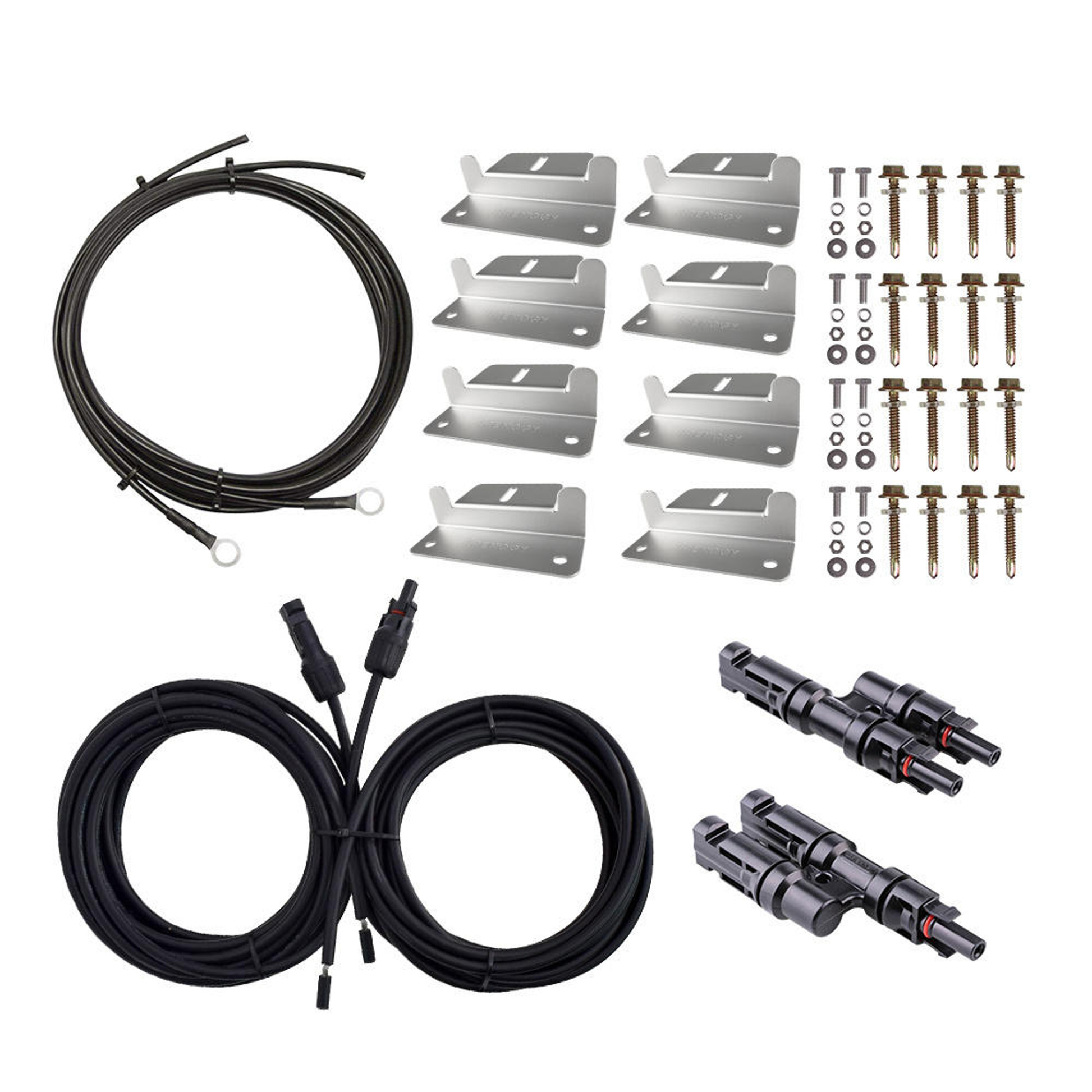

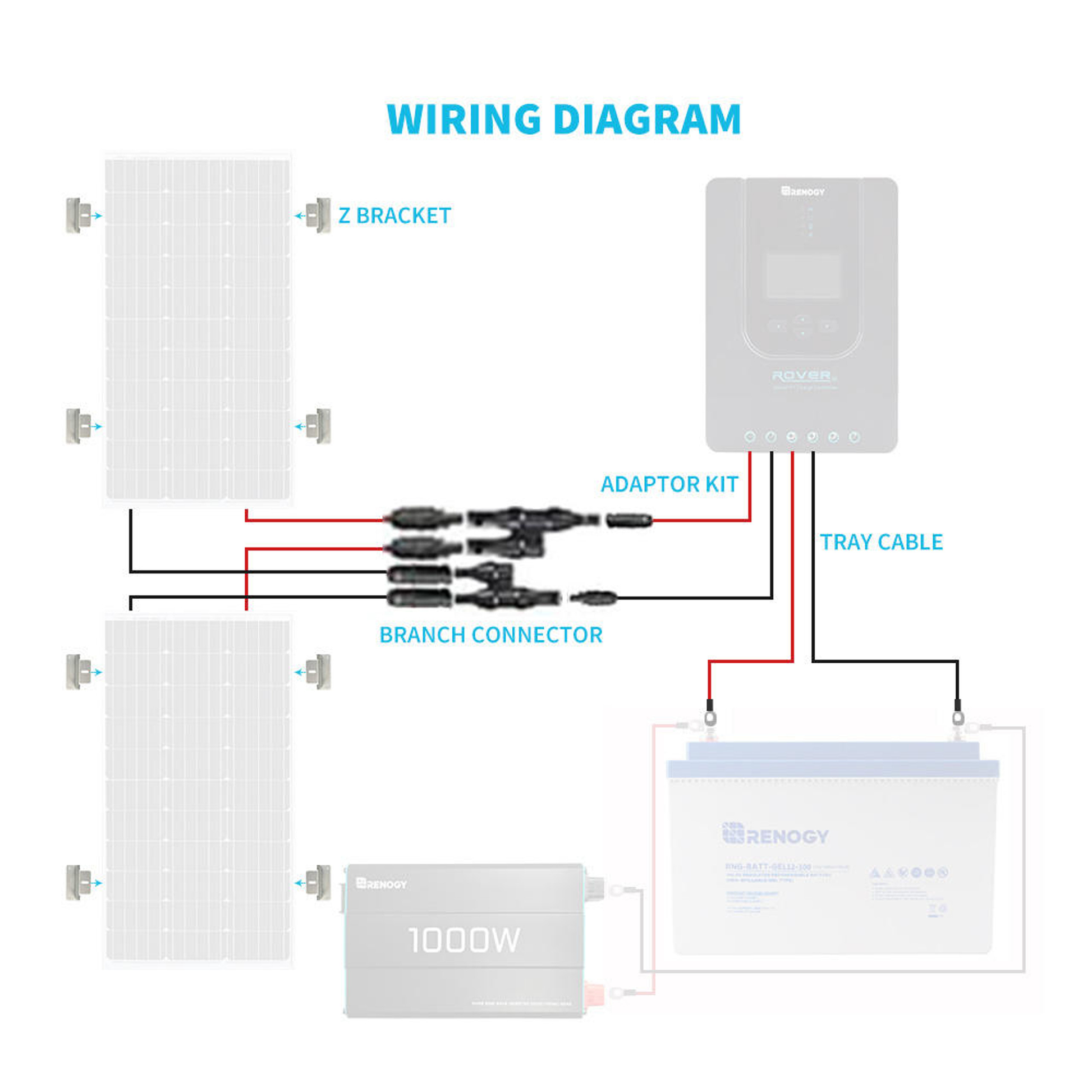

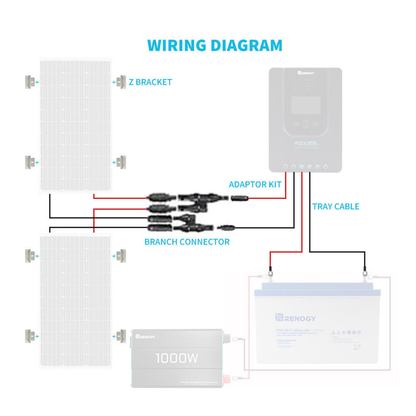

The Renogy 200W photovoltaic starter accessories and cable bundle kit comes with all the cables and accessories you need to connect a 200W Renogy panel and controller to your battery bank. Renogy tray cables offer easy connection between batteries and charge controllers. They are designed with specialized terminal rings for battery connection and exposed wire ends for fast connection to a charge controller. Adapter kit cables allow connection between solar panels and charge controllers, featuring waterproof solar connectors on module ends and exposed wire for charge controller terminal connection. The Renogy Z-Bracket Mount System can be used to easily mount and install a single solar panel.

Features:

  • Durable Design
    • Renogy's cables are TUV tested, UV light resistant and waterproof.
    • Lightweight aluminum brackets
  • Scalable Kit
    • Expand system by installing more modules and /or wiring.
  • Flexible and Effortless PV
    • Ready to connect any Renogy accessory to a 200W module or PV system.
    • Easily expand your system using additional wiring or mounting brackets.
  • Perfect for DIY Off Grid Installation:
    • Easy installation and DIY friendly.
    • The kit offers all components required for Renogy’s small scale photovoltaic system installation.
    • This kit allows the customer the flexibility to expand their system as needed and is built for 200W systems.

Specifications:

1. Renogy 8FT 10AWG Solar Tray Cables

  • Length: 8ft
  • AWG: 10
  • Rating Voltage: 600/1000V

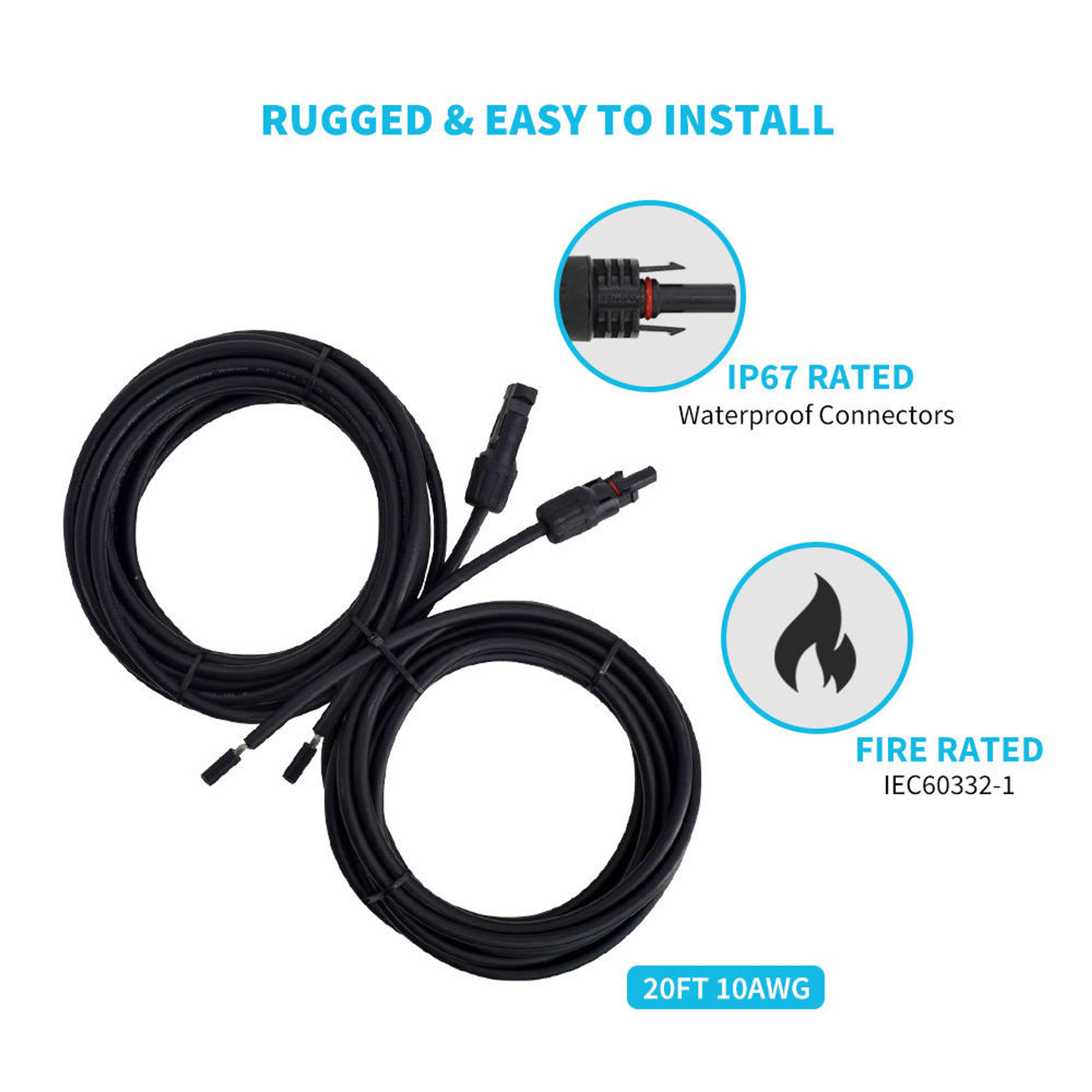

2. Renogy 20FT 10AWG Solar Adaptor Kit

  • Length: 20ft
  • AWG: 10
  • Rating Voltage: 600/1000V
  • Normal Cross-Sectional Area of the Conductor (mm2): 6.0
  • Diameter of Wires in Conductor (mm): 3.02±0.08
  • Min. Wall Thickness of Insulation (mm): 0.85
  • Min. Wall Thickness of Sheath (mm): 1.08
  • Number of Wires in Conductor: 84
  • IP 65 Protection
  • Conductor: Tinned copper wire

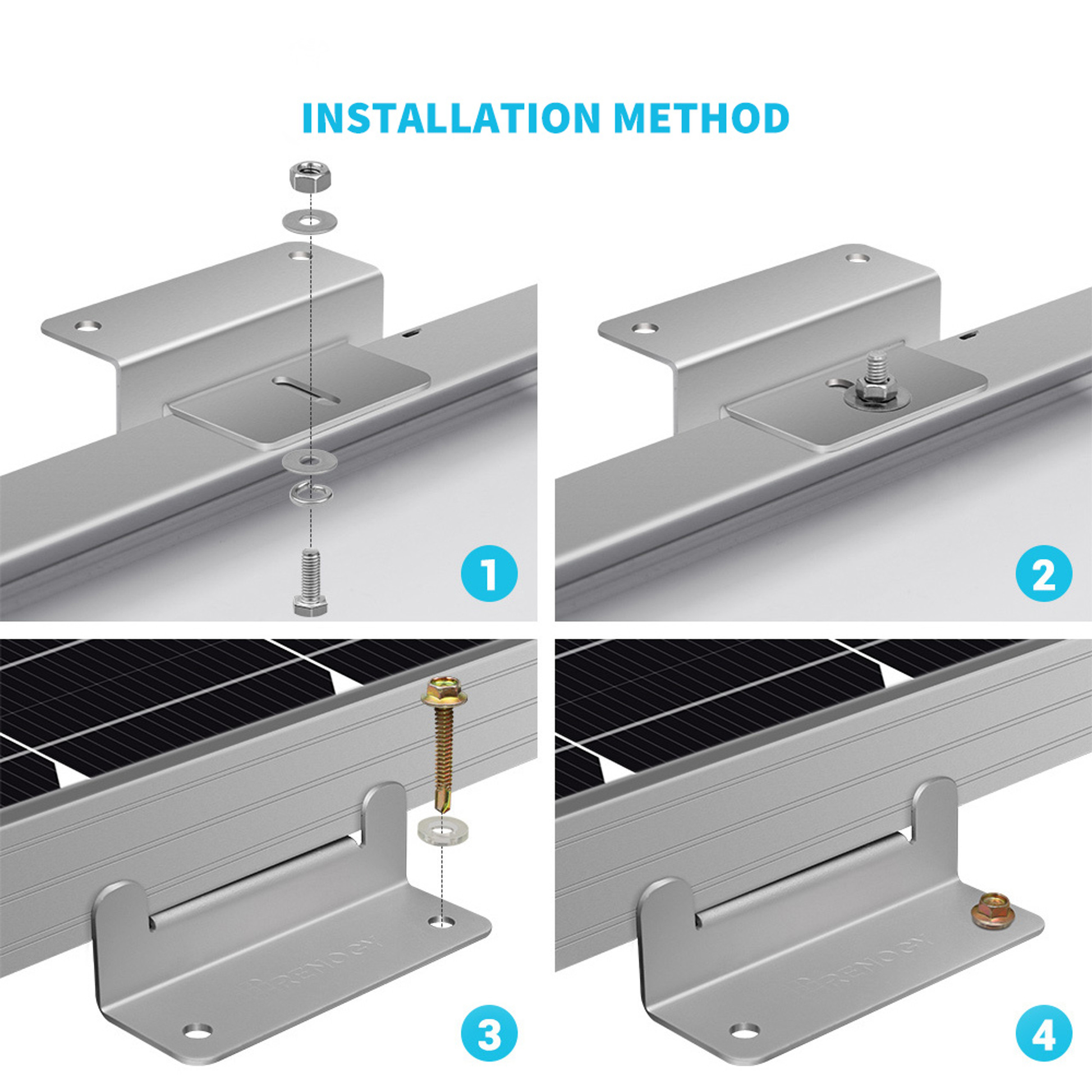

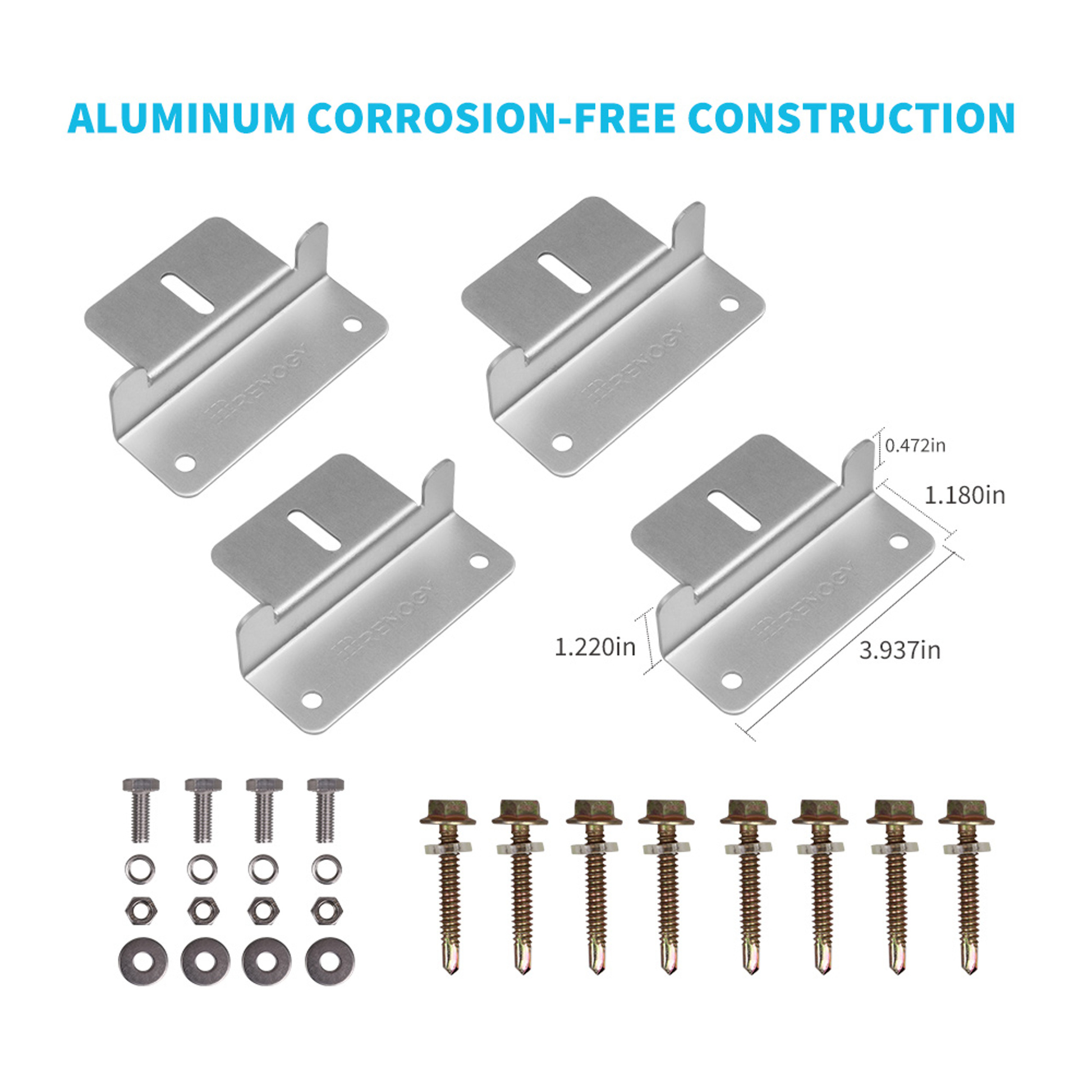

3. Renogy Solar Panel Mounting Z Bracket

  • Four Z Shape Solar Panel Brackets
  • Four M6-16 Hex Cap Bolt
  • Four M6 Split Lock Washer
  • Eight M6 Flat Washer
  • Four M6 Hexagonal Nut
  • Eight #11 Self-Drilling Cap Screw and Plastic Retaining Ring

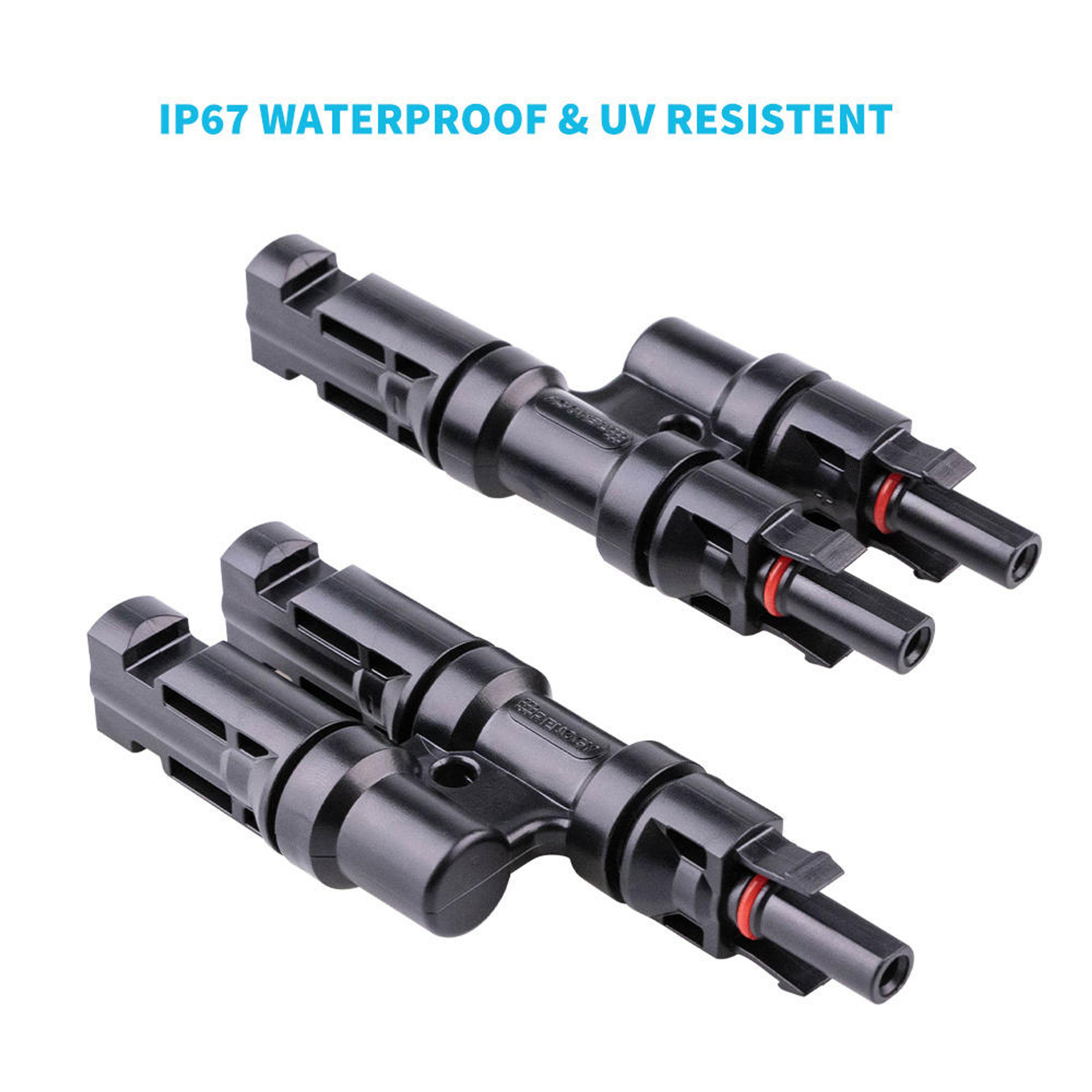

4. Solar Y Branch Connectors MMF+FFM Pair

  • Withstanding voltage: 1000V DC(TUV), 600V(UL)
  • Contact Resistance: 1m
  • Protection Class: Class II
  • Protection Degree: IP67, mated
  • Eight #11 Self-Drilling Cap Screw and Plastic Retaining Ring
