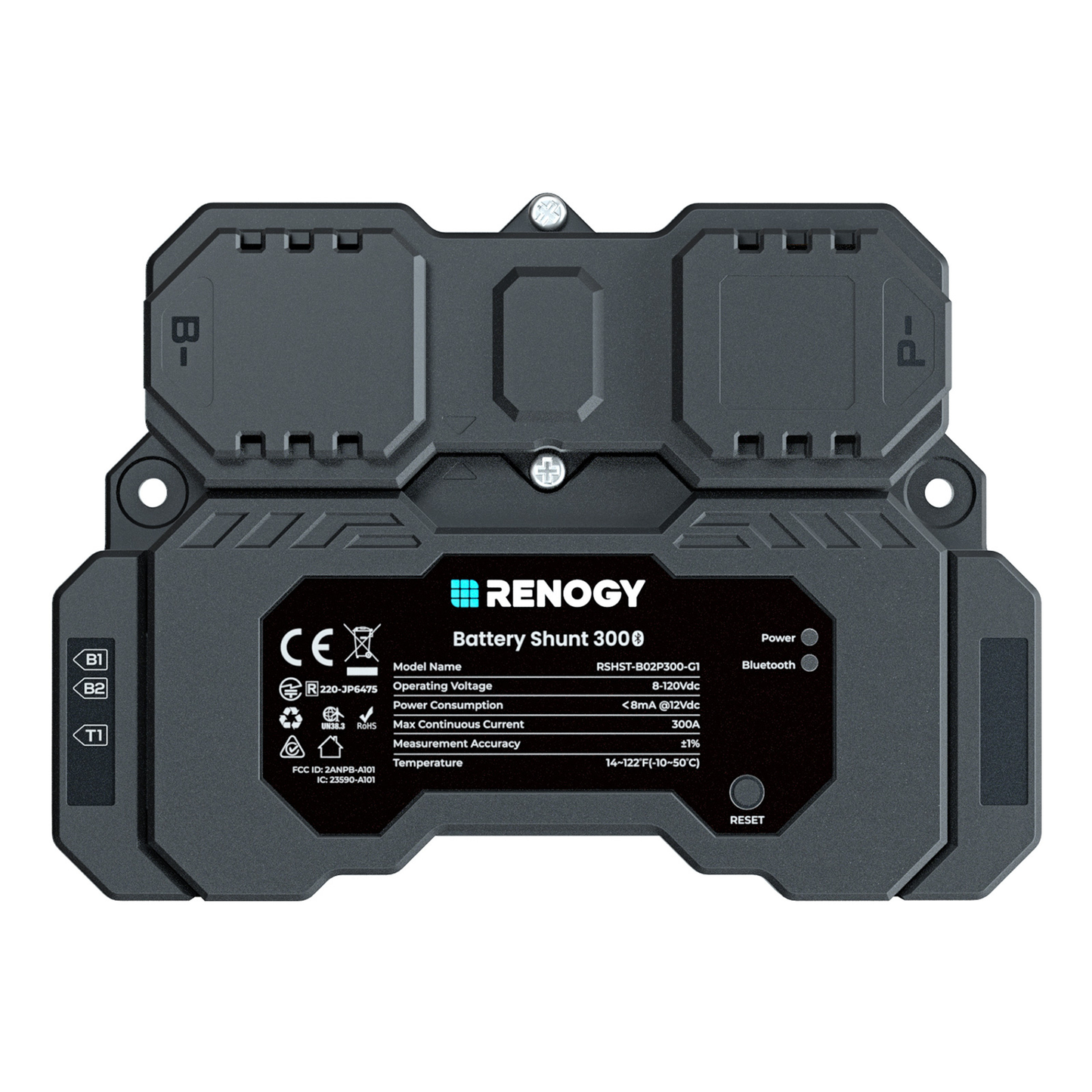

RENOGY CORE 300A Battery Shunt with Bluetooth

RENOGY CORE 300A Battery Shunt with Bluetooth

RSHST-B02P300-G1-AU

$126.00 AUD
$126.00 AUD
Sale Out of Stock
Prices include 10% GST. Shipping calculated at checkout.
Orders will dispatch within 2 business days. Click & Collect available (Tullamarine,VIC)

At Selectlok, we have access to the entire range of RENOGY products, if you are looking for a specific component, or seeking advice for a part needed in your project, that isn't advertised on our website please get in touch with us here, or via the button below & we will be able to help you out with supplying what you require. PLEASE NOTE: RENOGY products are NOT available for Click & Collect or In-Store Pickup.

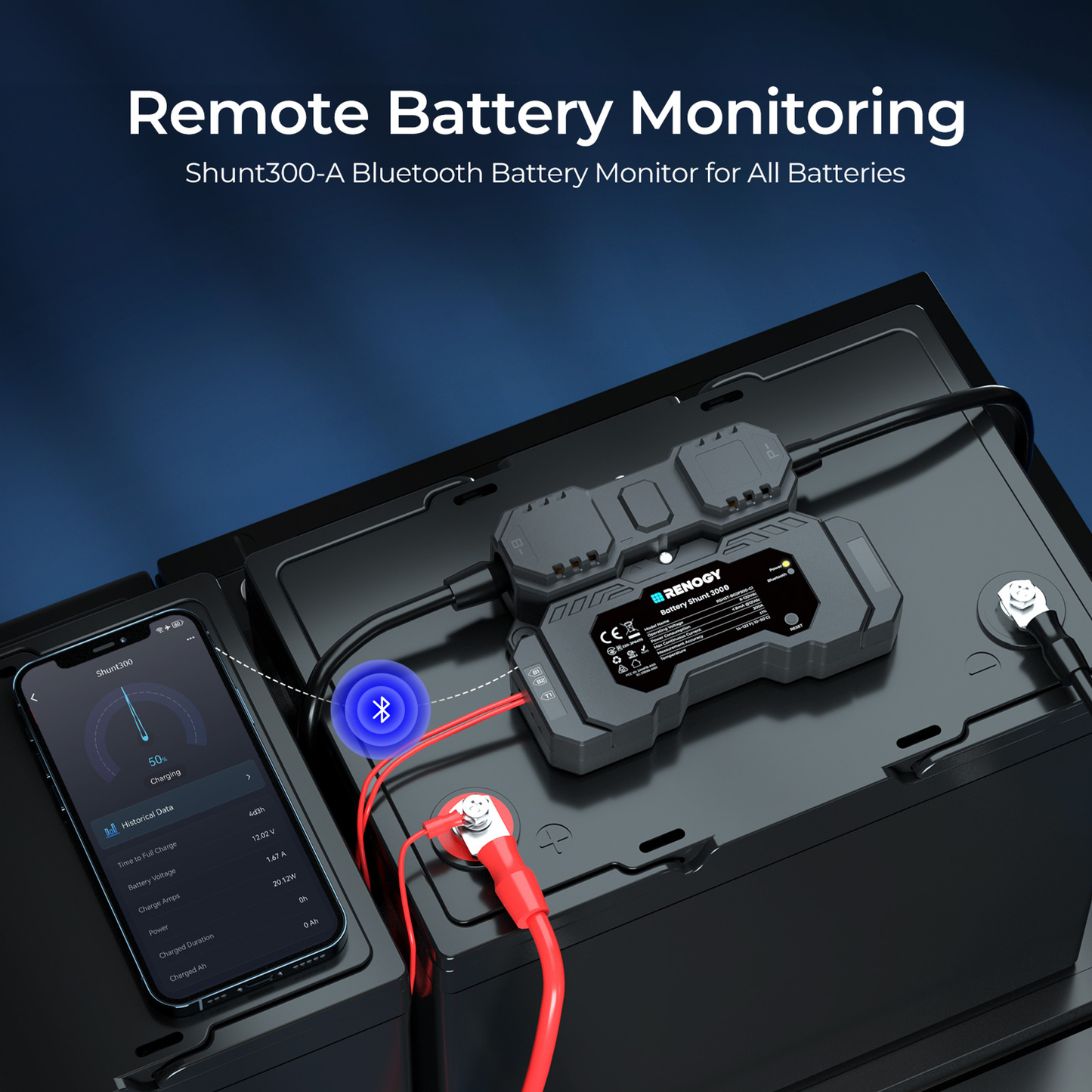

Check Your Battery Charging Level Anytime Anywhere! - Ensure precise battery monitoring via the Renogy ONE Core and DC Home App.

Features:

  • Remote monitoring and control via Renogy ONE/DC Home App.
  • Compatible with various batteries: Lead Acid, LFP, Li-ion, and Ni-MH.
  • Displays State of Charge, temperature, and starter battery voltage.
  • Records historical data and issues alerts via DC Home app.

Specifications:

  • Product Name: Smart Shunt 300
  • Model Name: RSHST-B02P300-G1
  • Power Supply: 8 - 120 VDC
  • Power Consumption: 0.1 W
  • Communication: Bluetooth LE and BLE Mesh
  • Max continuous current: 300A
  • Max peak current: 500A(<10s)
  • Current Resolution: 0.01 A
  • Battery Capacity: 1 - 6500Ah
  • Voltage Input Range: 8 - 60V
  • Voltage input resolution: 10 mV
  • Temperature sensor range: -20~80℃
  • Operating Temperature: -20 ℃ to 50 ℃
  • Operating Humidity: 0% to 95% RH
  • Operating Altitude: Less than 2000m above sea level
  • Installation: mounted on the wall
  • Battery connection M10 bolts
  • Certifications: CE, FCC ID,IC ID,RCM,TSCA, RoHS,UN38.3,TELEC

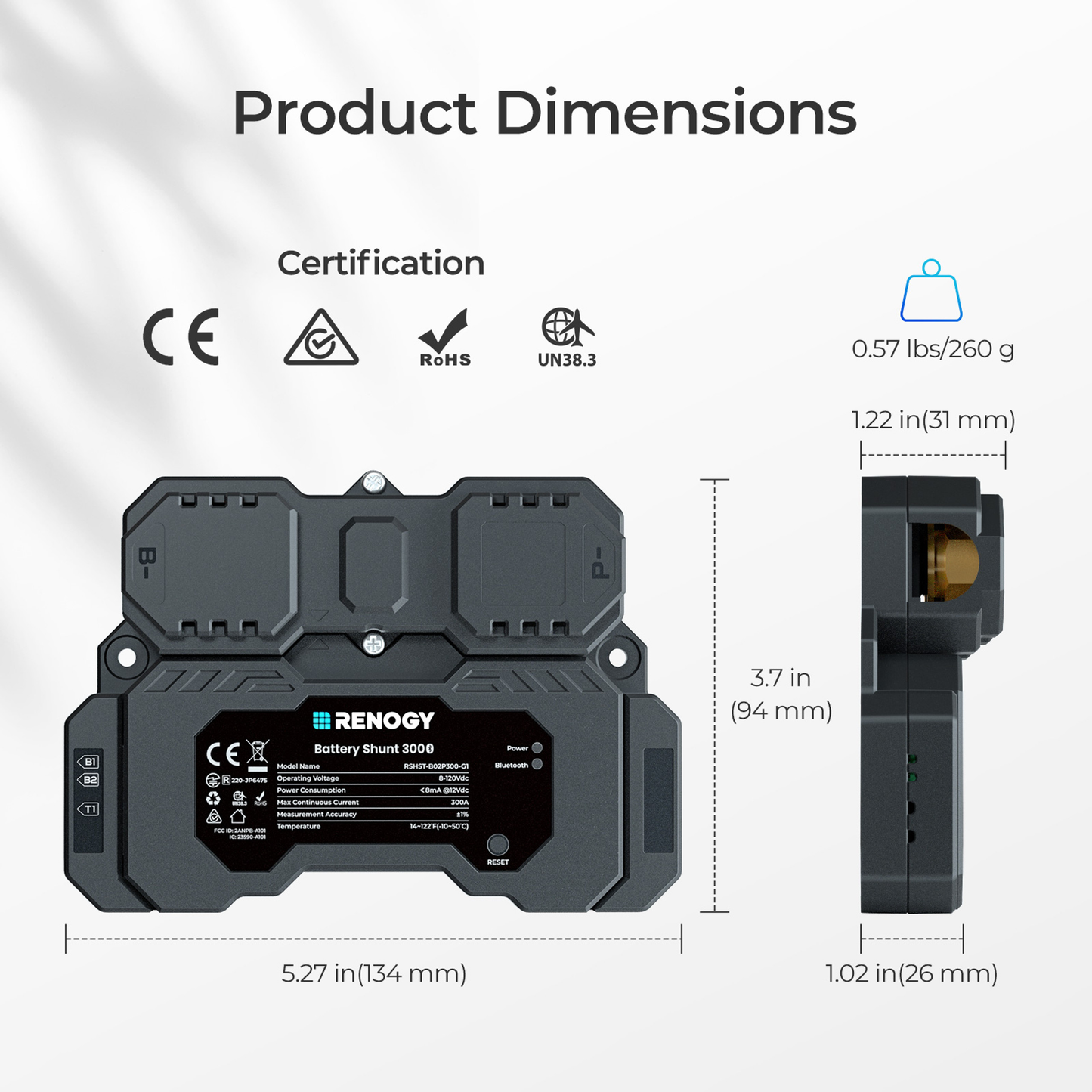

Weight & Dimensions:

  • Size: 134mm x 97mm x 31mm
  • Weight: 260g
