RENOGY CORE 500A Battery Monitor with Shunt
RENOGY CORE 500A Battery Monitor with Shunt
SKU:RBM500-G3-AU
Orders will dispatch within 2 business days. Click & Collect available (Tullamarine,VIC)
At Selectlok, we have access to the entire range of RENOGY products, if you are looking for a specific component, or seeking advice for a part needed in your project, that isn't advertised on our website please get in touch with us here, or via the button below & we will be able to help you out with supplying what you require. PLEASE NOTE: RENOGY products are NOT available for Click & Collect or In-Store Pickup.
Couldn't load pickup availability
The Renogy Battery Monitor is designed to monitor performance for most kinds of batteries. Its high-precision measurements will eliminate the guesswork from battery usage and improve your battery bank's overall performance and longevity!
It is a universal battery monitor that you can use with voltage ranging from 10V to 120V and up to 500A.
Features:
- Shunt design delivers 1% accurate real-time voltage and current.
- Alarms prevent over-discharge with flashing backlight and voltage.
- Works with Lead Acid, Lithium, and Nickel-metal hybrid types.
- Shows Voltage, Current, Power, Capacity, and degradation on backlit.
- Transparent shunt and 20ft cable enable remote battery monitoring.
Specifications:
- Working Voltage: 10-120V
- Compatible Battery: Lead Acid (AGM, GEL), Lithium Iron Phosphate, Lithium-ion, Nickel-metal hybrid
- Standby Dissipation: 1-2mA
- Display: LCD with Green Backlight, brightness is adjustable
- Working Dissipation: 10-15mA
- Preset capacity value: 0.1-9999.0 AH
- Backlight on current (>50A): 100mA
- Shielded Wire Length: 6m
- Certification: RoHS

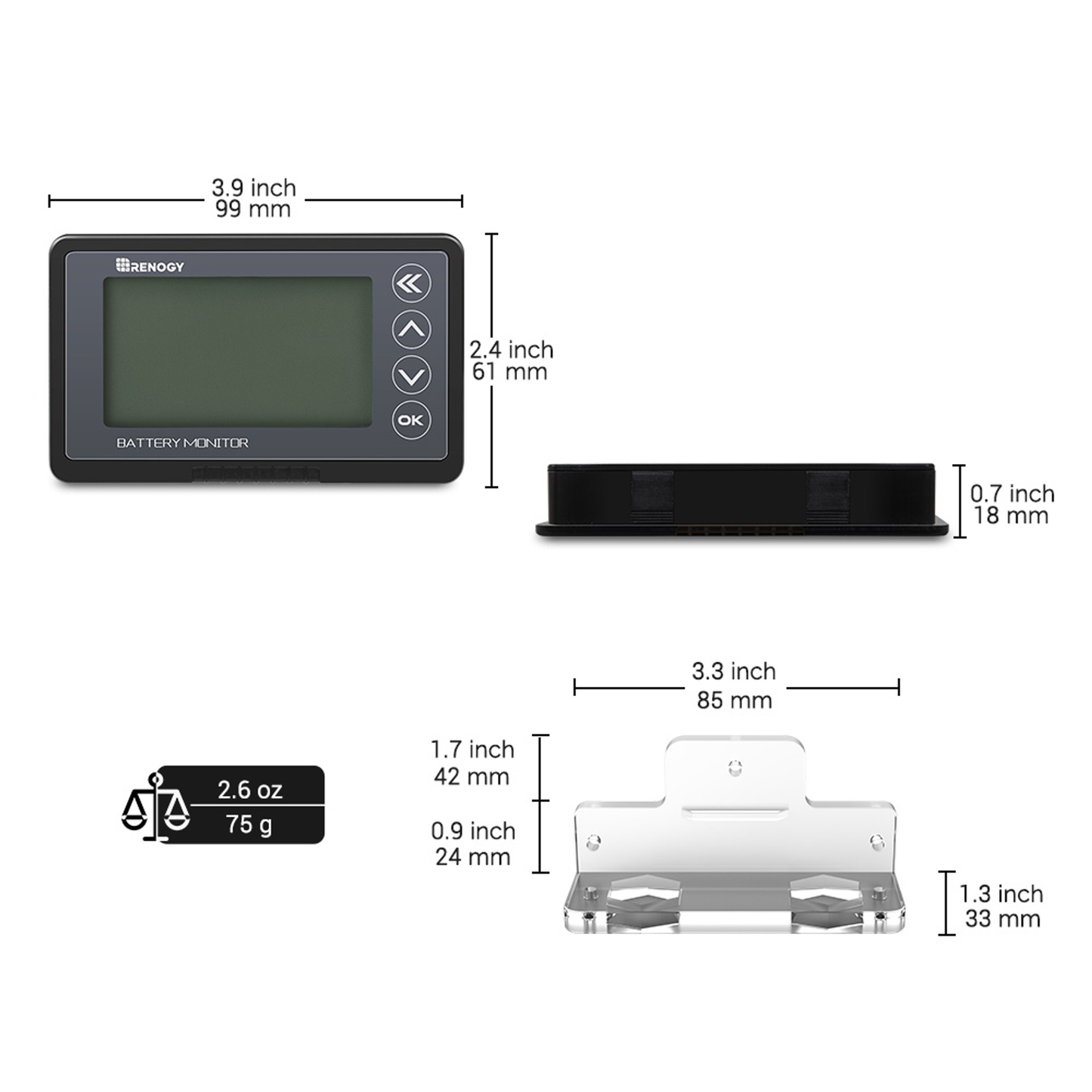

Weight & Dimensions:
- Size: 99mm x 61mm x 18mm
- Weight: 75g
