RENOGY CORE DC-DC Battery Charger Series Remote Monitor

RENOGY CORE DC-DC Battery Charger Series Remote Monitor

RMS-DCDC-G1-AU

$36.00 AUD
$36.00 AUD
Sale Out of Stock
Prices include 10% GST. Shipping calculated at checkout.
Orders will dispatch within 2 business days. Click & Collect available (Tullamarine,VIC)

Prices include 10% GST. Shipping calculated at checkout.
Orders will dispatch within 2 business days.

PLEASE NOTE: RENOGY products are NOT available for Click & Collect or In-Store Pickup.

At Selectlok, we have access to the entire range of RENOGY products, if you are looking for a specific component, or seeking advice for a part needed in your project, that isn't advertised on our website please get in touch with us here, or via the button below & we will be able to help you out with supplying what you require.

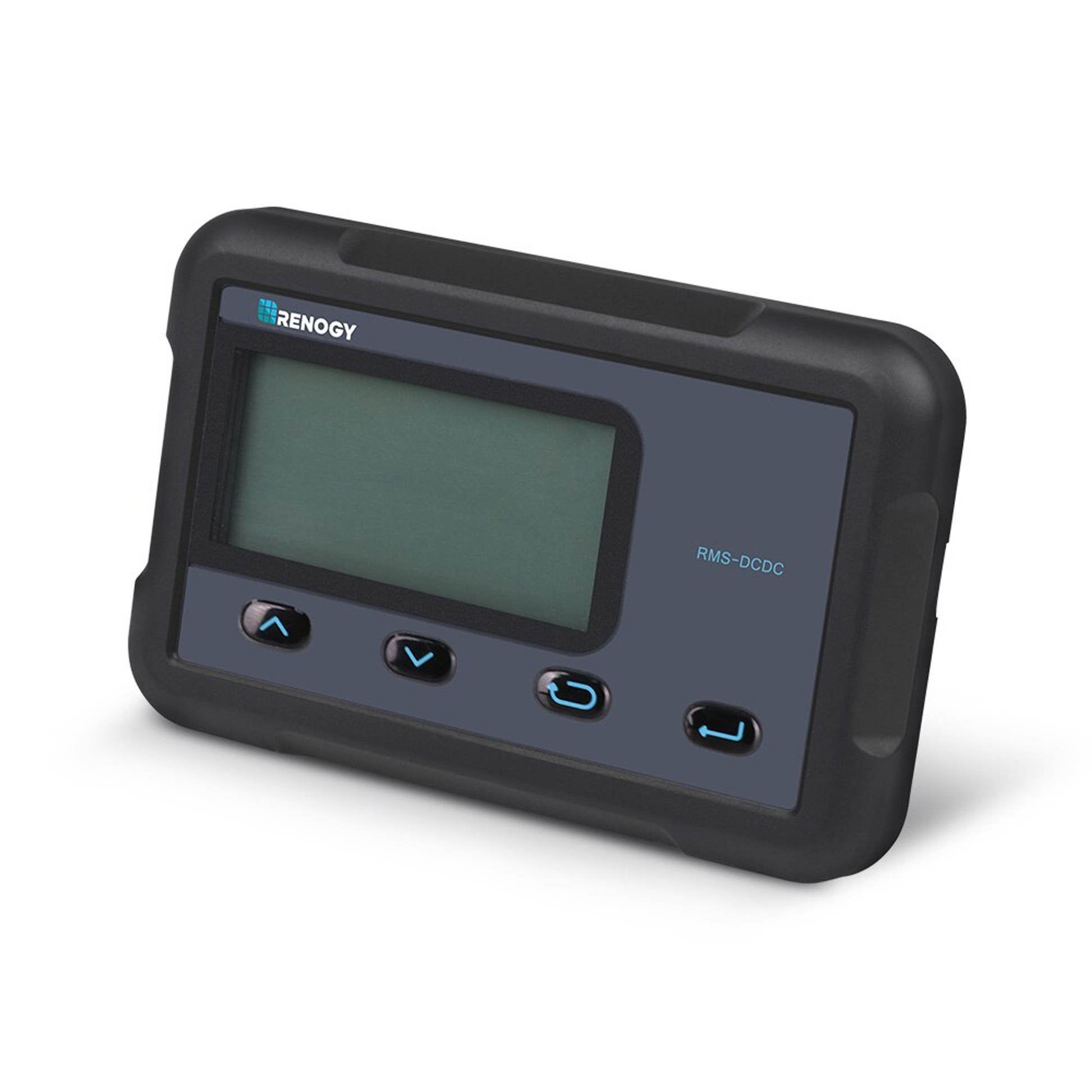

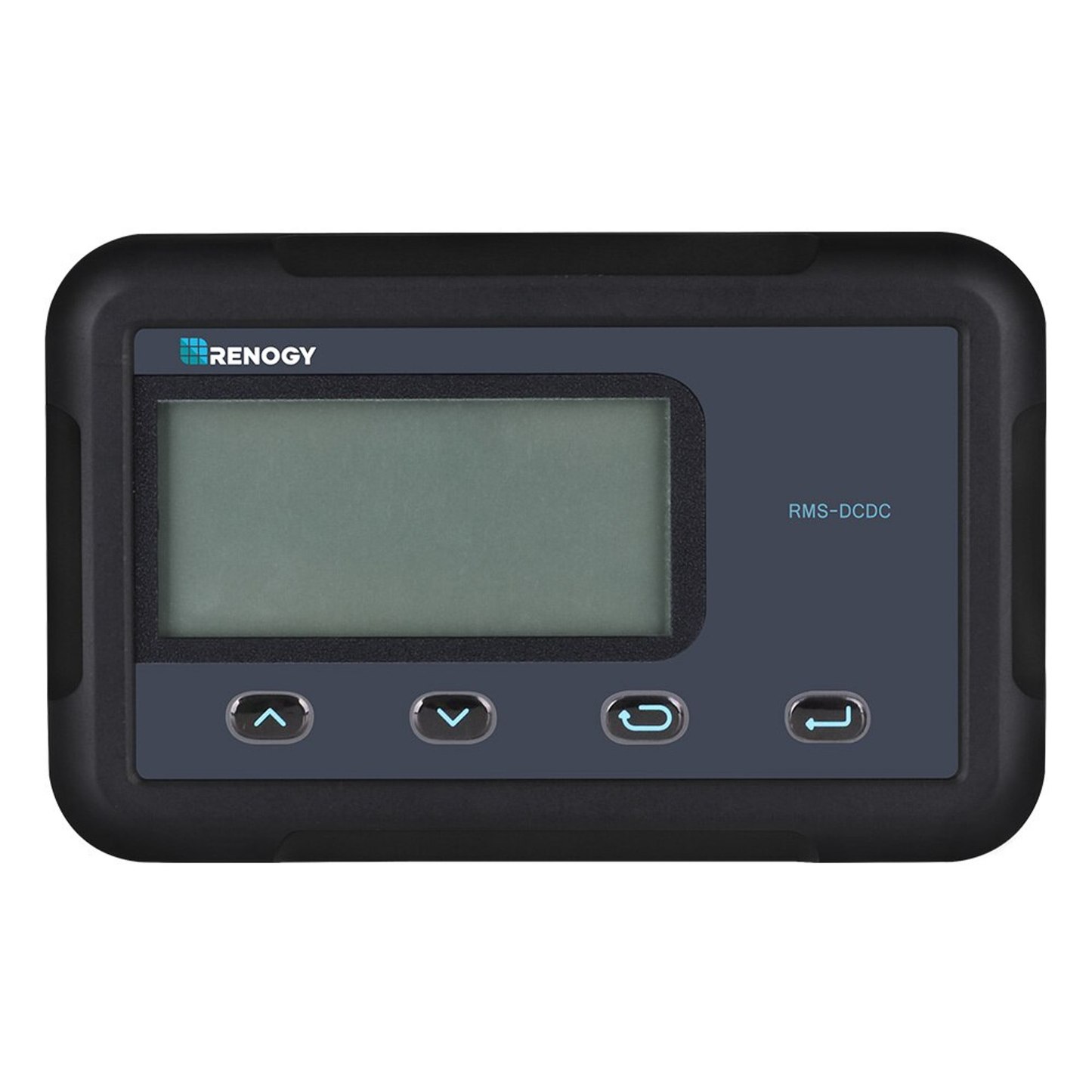

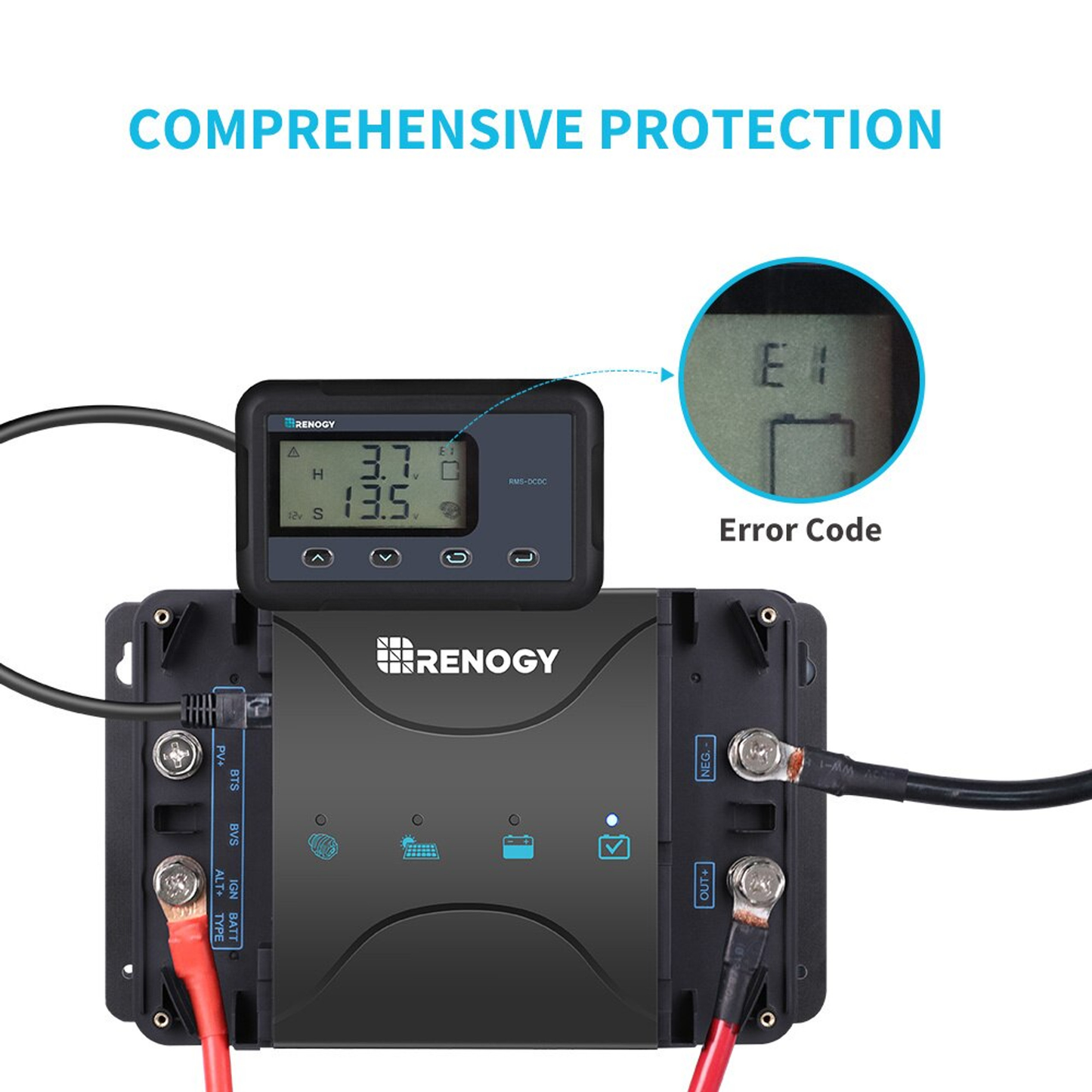

The Renogy RMS-DCDC is a high precision meter designed for DC-DC MPPT Series onboard battery chargers. Engineered for an aesthetically clean and professional look once mounted, this meter can be flush-mounted and features a backlit LCD. Utilize the 4-key input to navigate through the LCD for system information, configure charging parameters, as well as identify any error codes. The RMS-DCDC is the perfect companion, offering operator feedback on your 2-battery system and keeping you up to date with important system information.

Features:

  • Dual Battery Monitoring
    • Stay informed about your house and auxiliary battery's charging status and easily monitor the solar system's overall health.
  • Adjustable Parameters
    • Program your charger settings, volts, and amps directly through the monitoring screen.

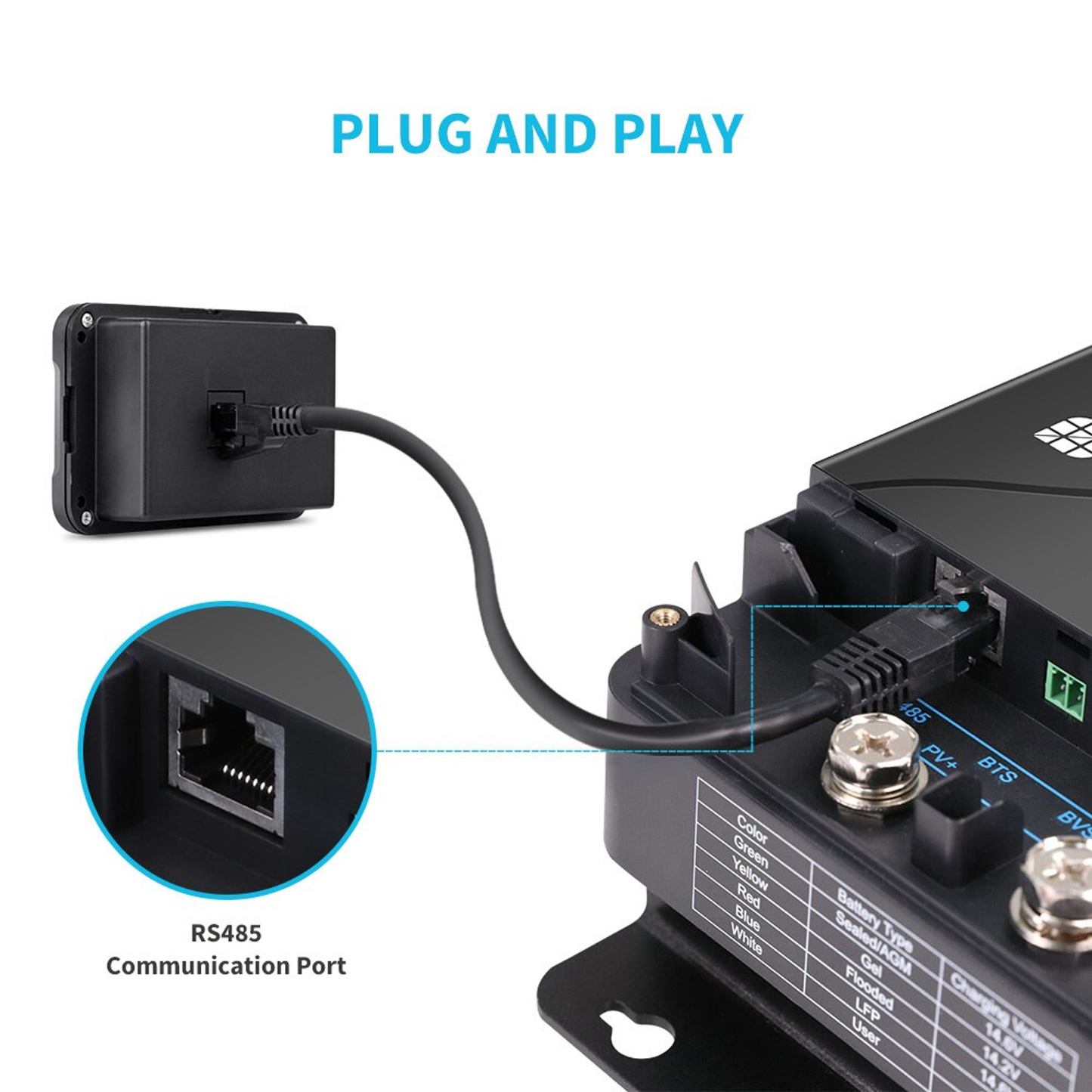

  • Plug and Play
    • Simply connect an RJ45 directly to your DC-DC and let the screen take care of the rest.
  • Accurate Readings
    • Precise tracking and monitoring ensure the latest real-time solar and alternator charging information.

Specifications:

  • Supply Voltage: 5VDC
  • Communication Port: RJ45 (RS485 Protocol)
  • Supply Current: 30mA
  • Display: Backlit LCD
  • Power Consumption: <1W
  • User Interface: 4 Front Menu Buttons
  • Operating Temperature Range: -20°C~45°C
  • Mounting System: Wall Mount
  • Voltage/Current Accuracy: ±0.1V
  • Wire Length: 5m

Weight & Dimensions:

  • Size: 70mm x 110mm x 31.8mm
  • Weight: 62g
