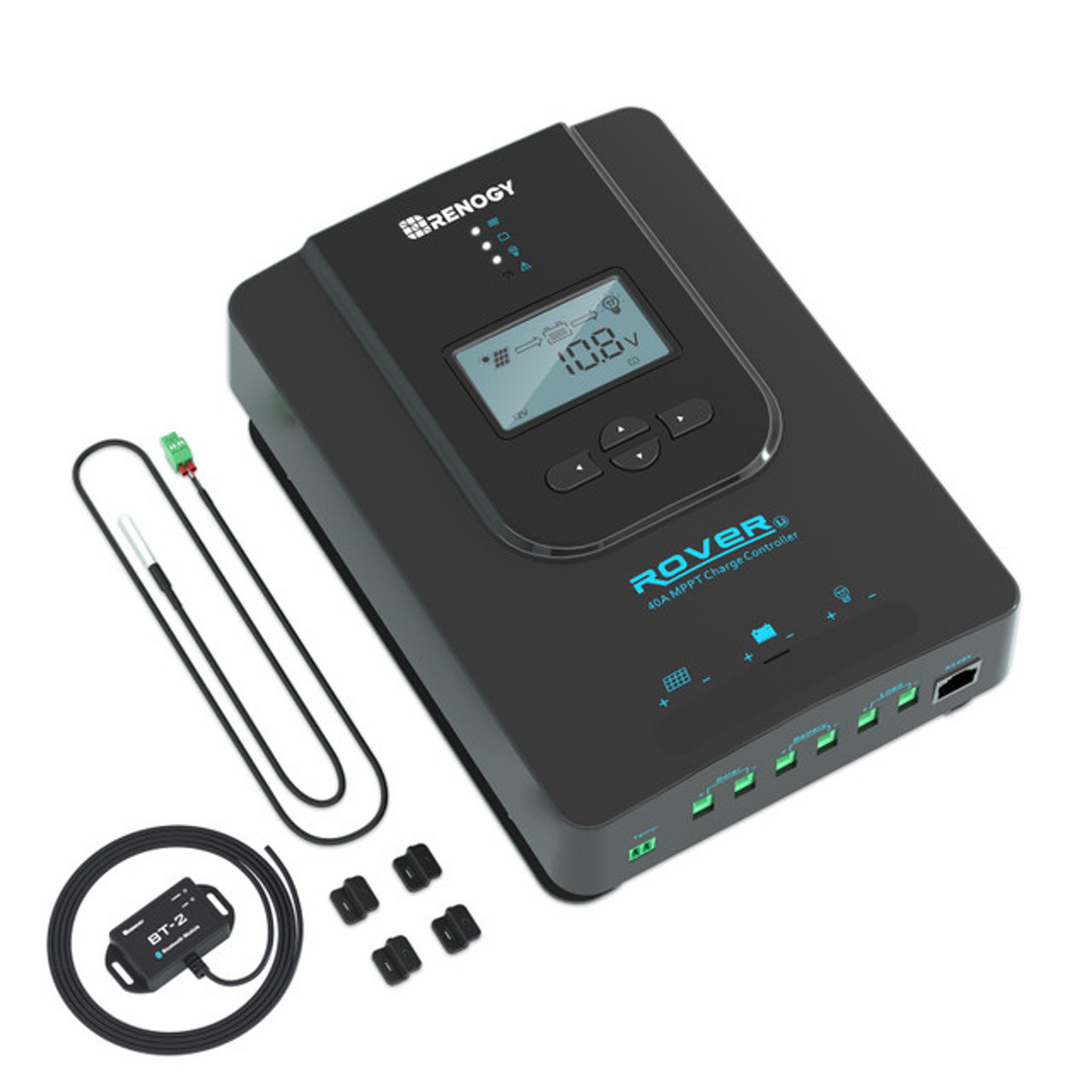

RENOGY CORE Rover 12V 40A MPPT Charge Controller (With BT)
RENOGY CORE Rover 12V 40A MPPT Charge Controller (With BT)
SKU:RNG-CTRL-RVR40-BT-G3-AU
Orders will dispatch within 2 business days. Click & Collect available (Tullamarine,VIC)
Prices include 10% GST. Shipping calculated at checkout.
Orders placed after Sunday 15th December will dispatch after Monday 6th January 2025.
PLEASE NOTE: RENOGY products are NOT available for Click & Collect or In-Store Pickup.
At Selectlok, we have access to the entire range of RENOGY products, if you are looking for a specific component, or seeking advice for a part needed in your project, that isn't advertised on our website please get in touch with us here, or via the button below & we will be able to help you out with supplying what you require.
Couldn't load pickup availability
The Renogy Rover Li 40 Amp MPPT Solar Charge Controller. An advanced charge controller that maximizes the performance of your solar system. The Rover 40A Solar Charge Controller is the ultimate solution for both 12V and 24V systems, offering unparalleled versatility. It harnesses the maximum power from your solar panels, ensuring optimal charging efficiency.
Features:

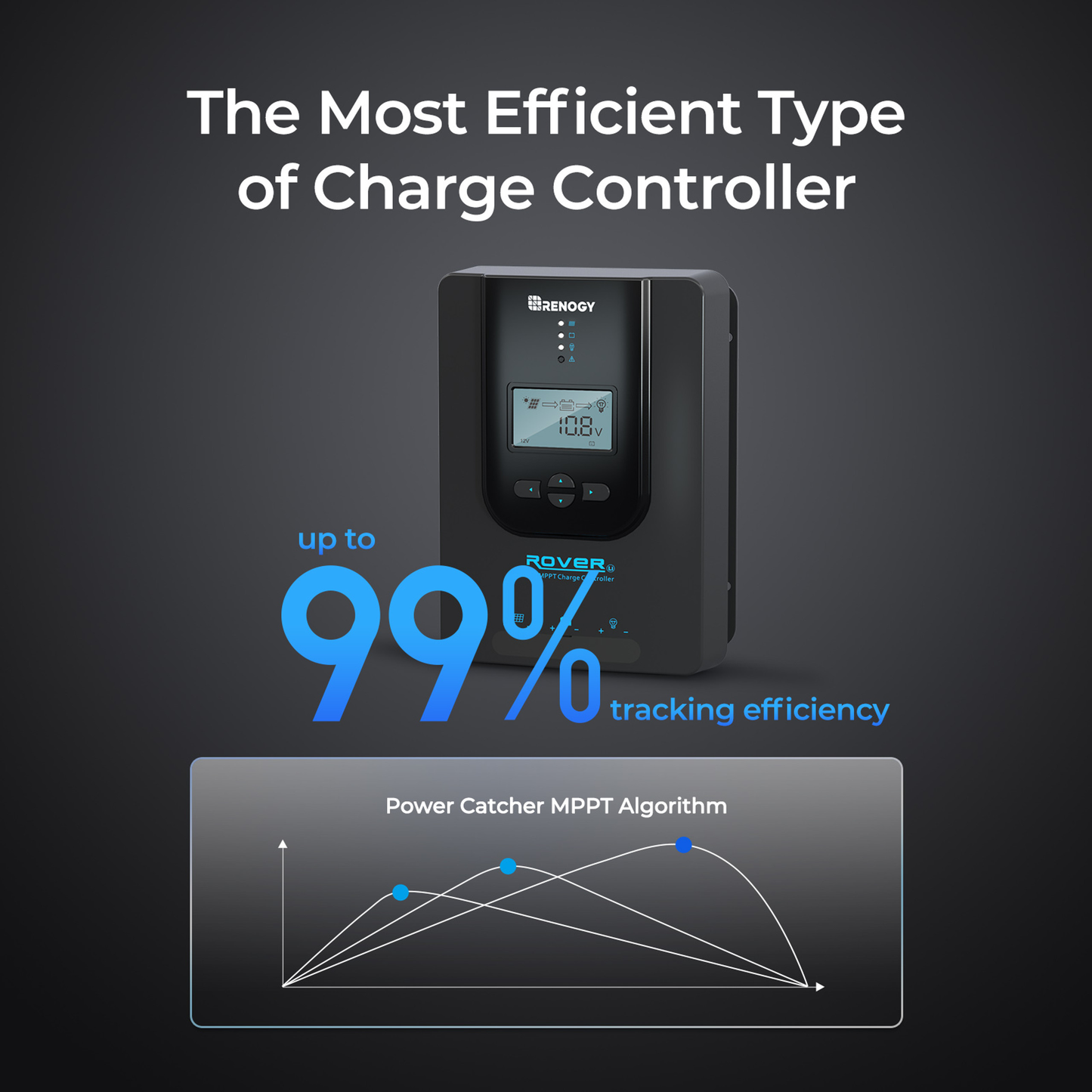

- MPPT: tracking efficiency up to 99%, peak conversion efficiency 98%

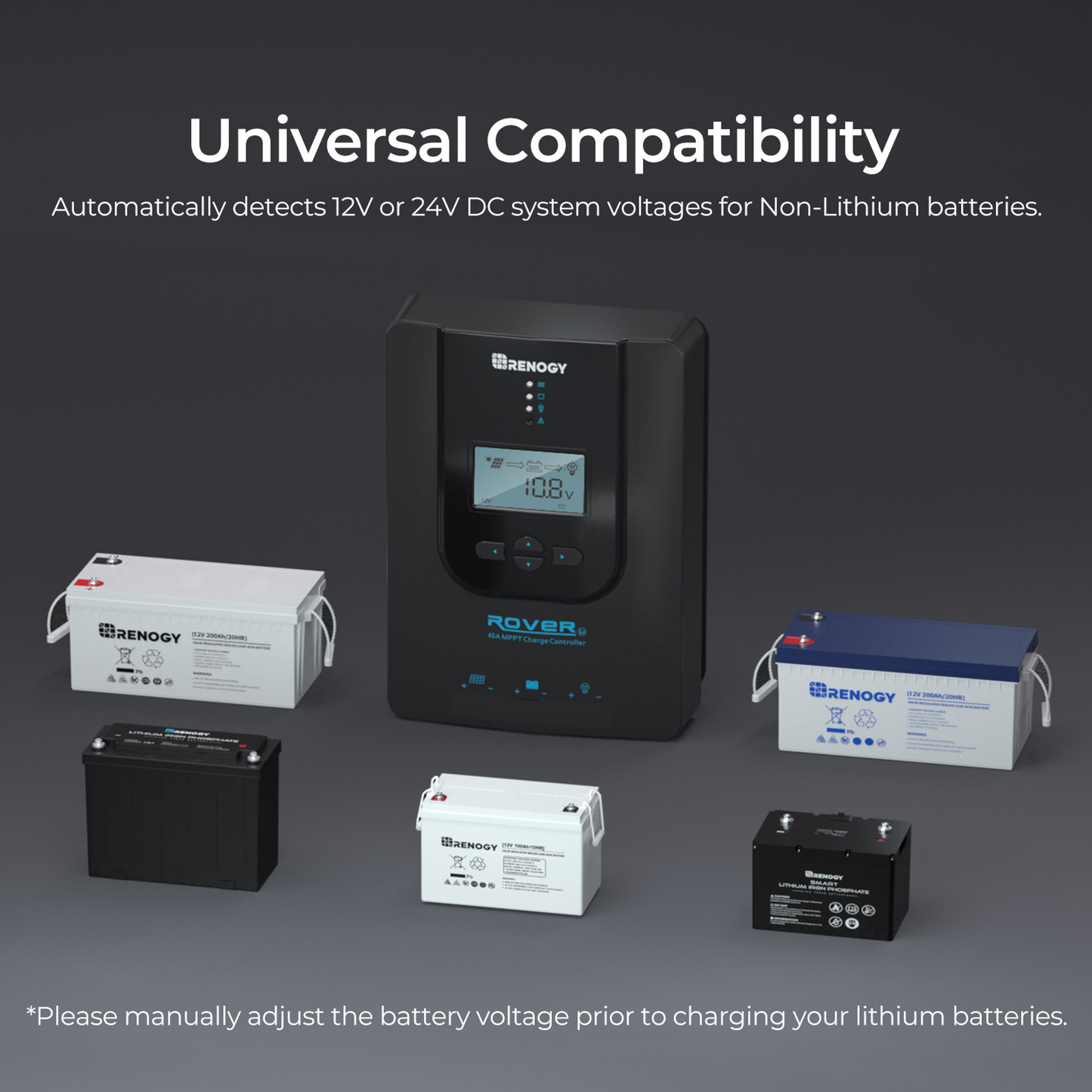

- Automatically detects 12V/24V system (non-lithium batteries)
- Comprehensive system protection designed to secure your system.
Specifications:
- Nominal System Voltage: 12/24V Auto-Detect
- Rated Charge Current: 40A
- Solar Input Voltage Range (Voc): 15VDC~100VDC
- Max. PV Input Power: 12V/520W, 24V/1040W
- Power Consumption: ＜100mA/12V; ＜58mA/24V
- Battery Input Voltage Range: 10VDC~32VDC
- Ground Type: Negative
- Protection Level: IP32

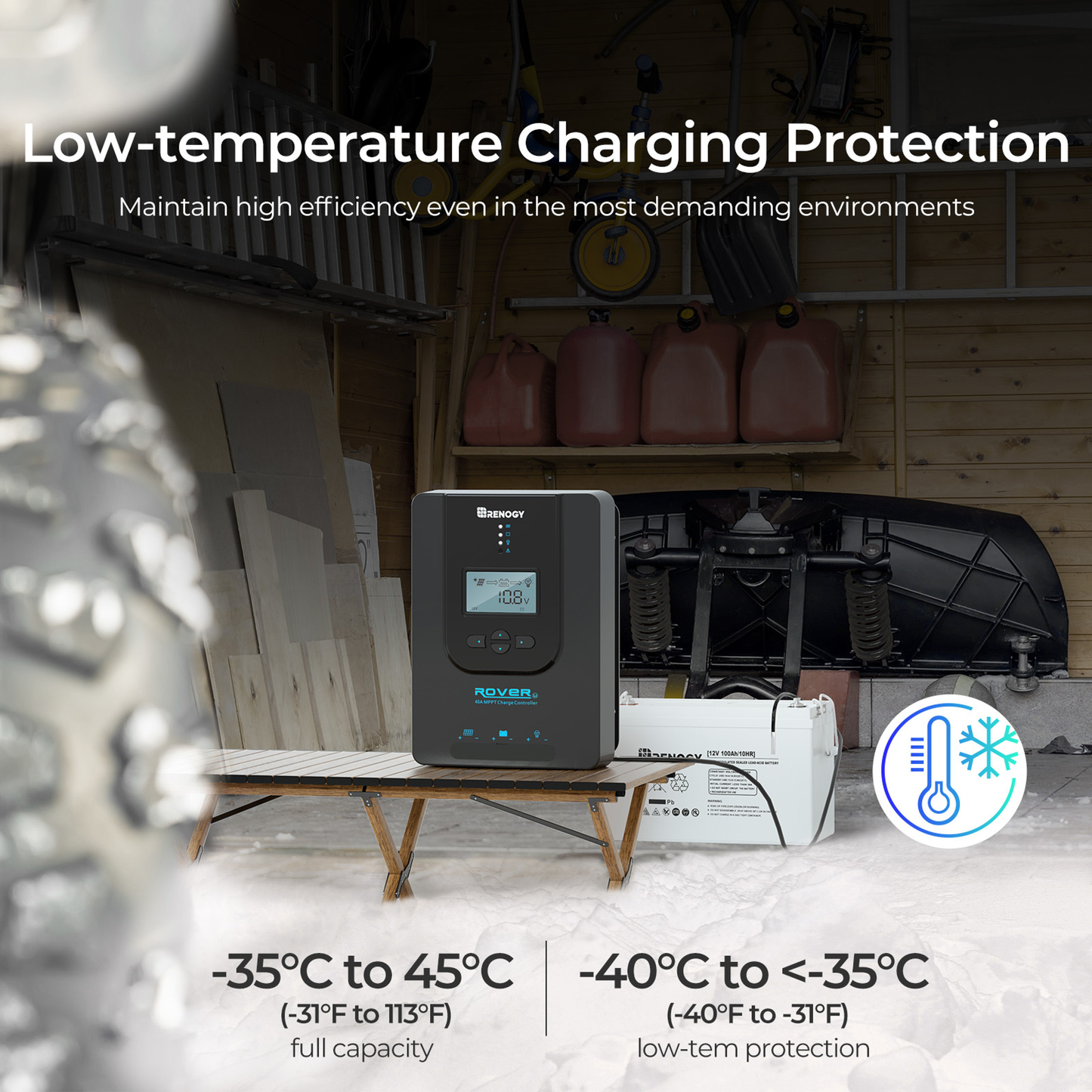

- Operating Temperature Range: -35°C to 45°C
- Storage Temperature Range: -35°C to 75°C
- Operating / Storage Humidity: ≤ 90%, No Condensation

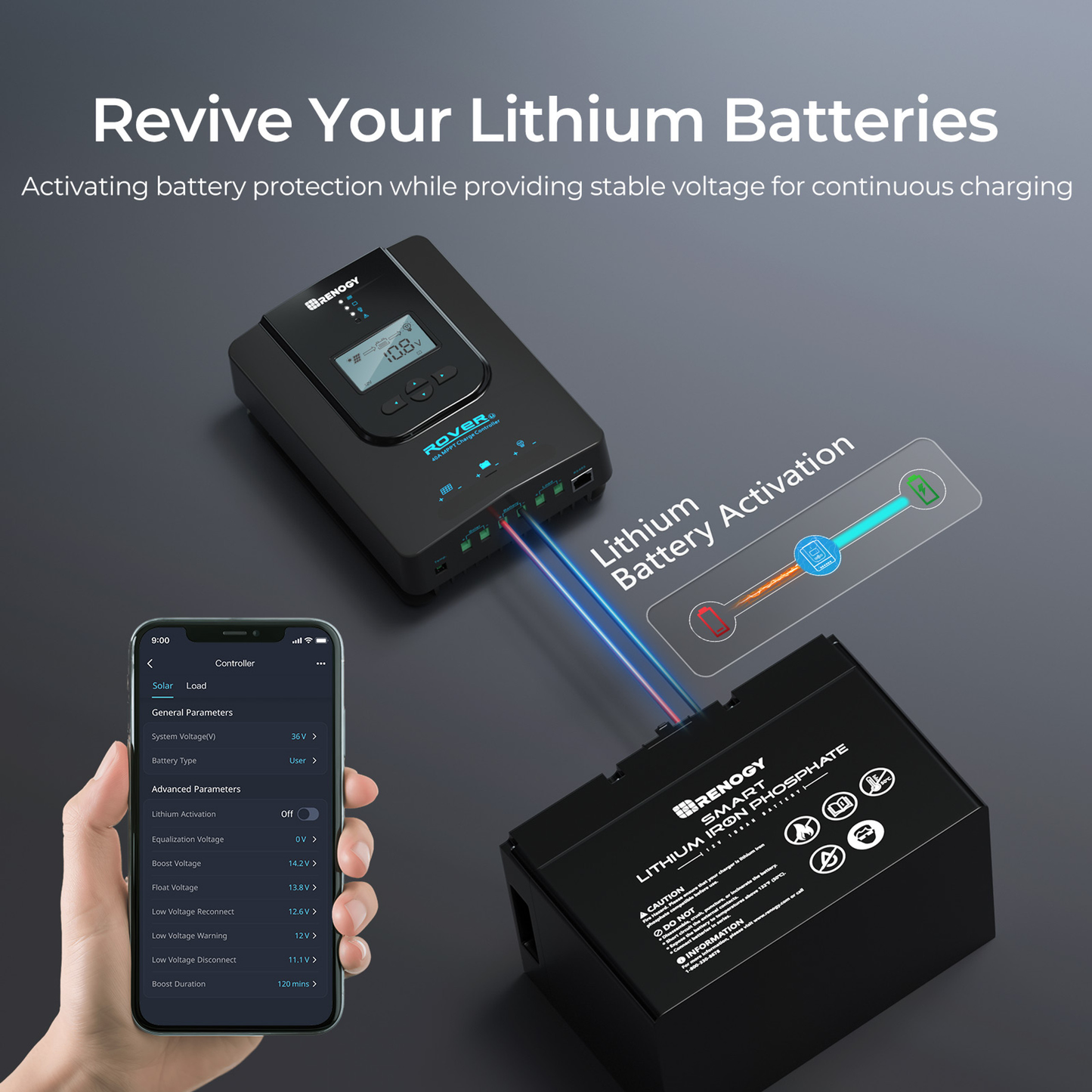

- Electrical Protection: Overcharging, over-discharging, overload, and short circuit. Capable of charging over-discharged lithium batteries.
- Max. Terminals Size: 8 AWG 10mm2
- CE: FCC Class B Part 15 Compliant: YES

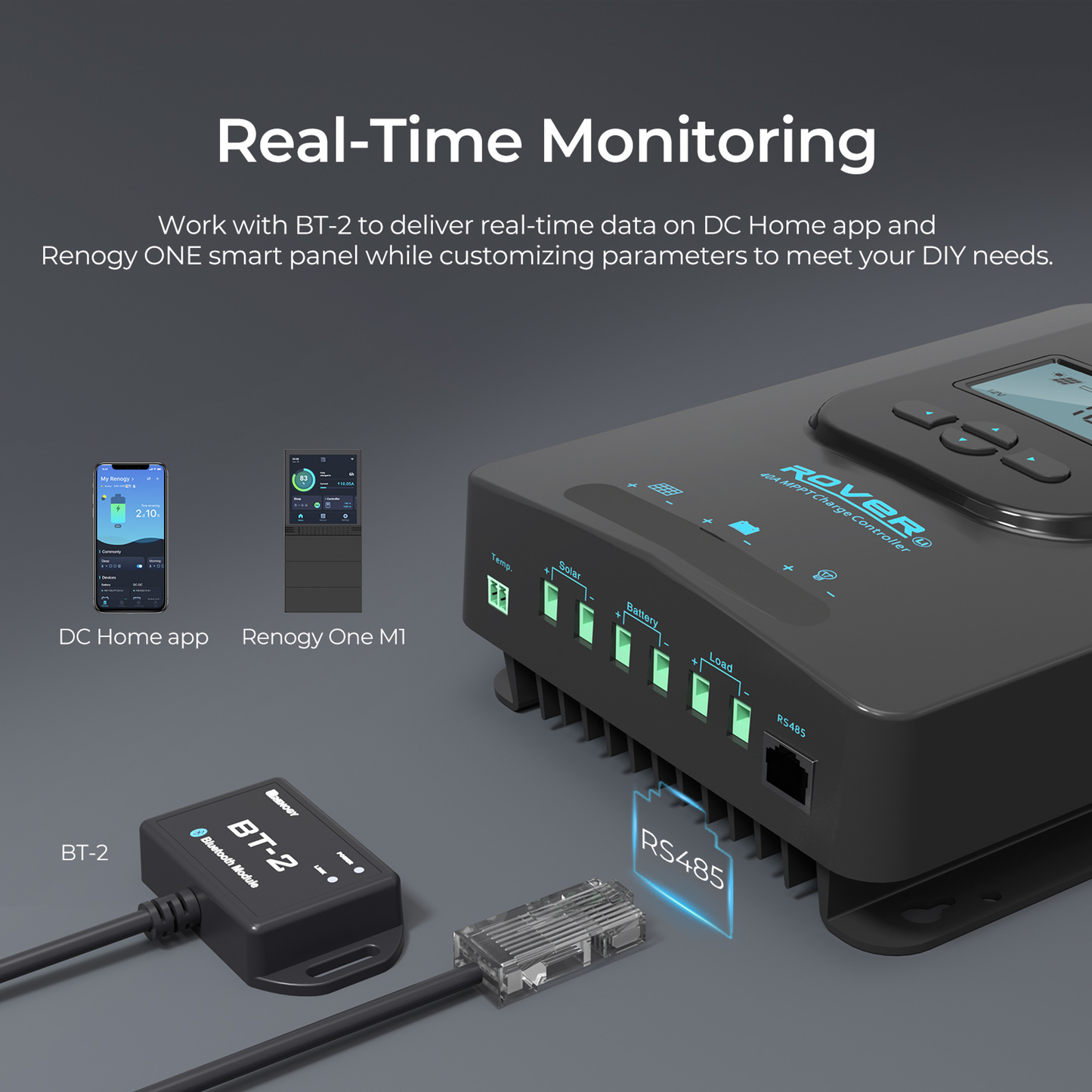

Renogy BT-2 Bluetooth Module (RCM-BT2):
-
Communication Protocol: RS485 Modbus
- Port Type: RJ12
- Input Voltage : 5V
- Protection Grade: IP54
- Standby Power Consumption: 0.04W
- Operating Power Consumption: 0.05W
- Serial Baud Rate: Fixed Baud Rate 9600bps
- Communication Range ≤25m
- Cable Length: 5m
- Operating Altitude: ≤3000m
- FCC Class B Part 15 Compliant
- Compatible MPPT Charge Controller: RNG-CTRL-RVR20/RNG-CTRL-RVR30-RNG-CTRL-RVR40/ RNG-CTRL-RVR60/ RNG-CTRL-RVR100
- Compatible App: Renogy DC Home App available in both the App Store and Google Play
Weight & Dimensions:
- Charge Controller Size: 238mm x 172mm x 77mm
- Weight: 2kg
- BT Module Size: 67.3mm x 35mm x 14mm
- Weight: 130g
Available Accessories:
- Temperature Sensor: 9.8ft cable length
