RENOGY REGO 3 Port 400A Battery Combiner Box (EOL)
RENOGY REGO 3 Port 400A Battery Combiner Box (EOL)
SKU:REC400RBCB-3P-G1-AU
Orders will dispatch within 2 business days. Click & Collect available (Tullamarine,VIC)
Prices include 10% GST. Shipping calculated at checkout.
Orders placed after Sunday 15th December will dispatch after Monday 6th January 2025.
PLEASE NOTE: RENOGY products are NOT available for Click & Collect or In-Store Pickup.
At Selectlok, we have access to the entire range of RENOGY products, if you are looking for a specific component, or seeking advice for a part needed in your project, that isn't advertised on our website please get in touch with us here, or via the button below & we will be able to help you out with supplying what you require.
Couldn't load pickup availability
This Renogy REGO Battery Combiner Box is designed to work with the REGO 400Ah lithium batteries to expand the capacity of your solar system. One Battery Combiner Box can connect with up to 3 REGO batteries. Expand the system up to 8 batteries connected in parallel with additional combiner boxes offering a total capacity of up to 40KWh.
The continuous current rating of the battery combiner box is rated at 400A allowing it to handle high power charging and discharging. Designed specifically to work with REGO batteries with 300A max charging current, and 350A max discharging current to ensure long lasting battery performance and stability.

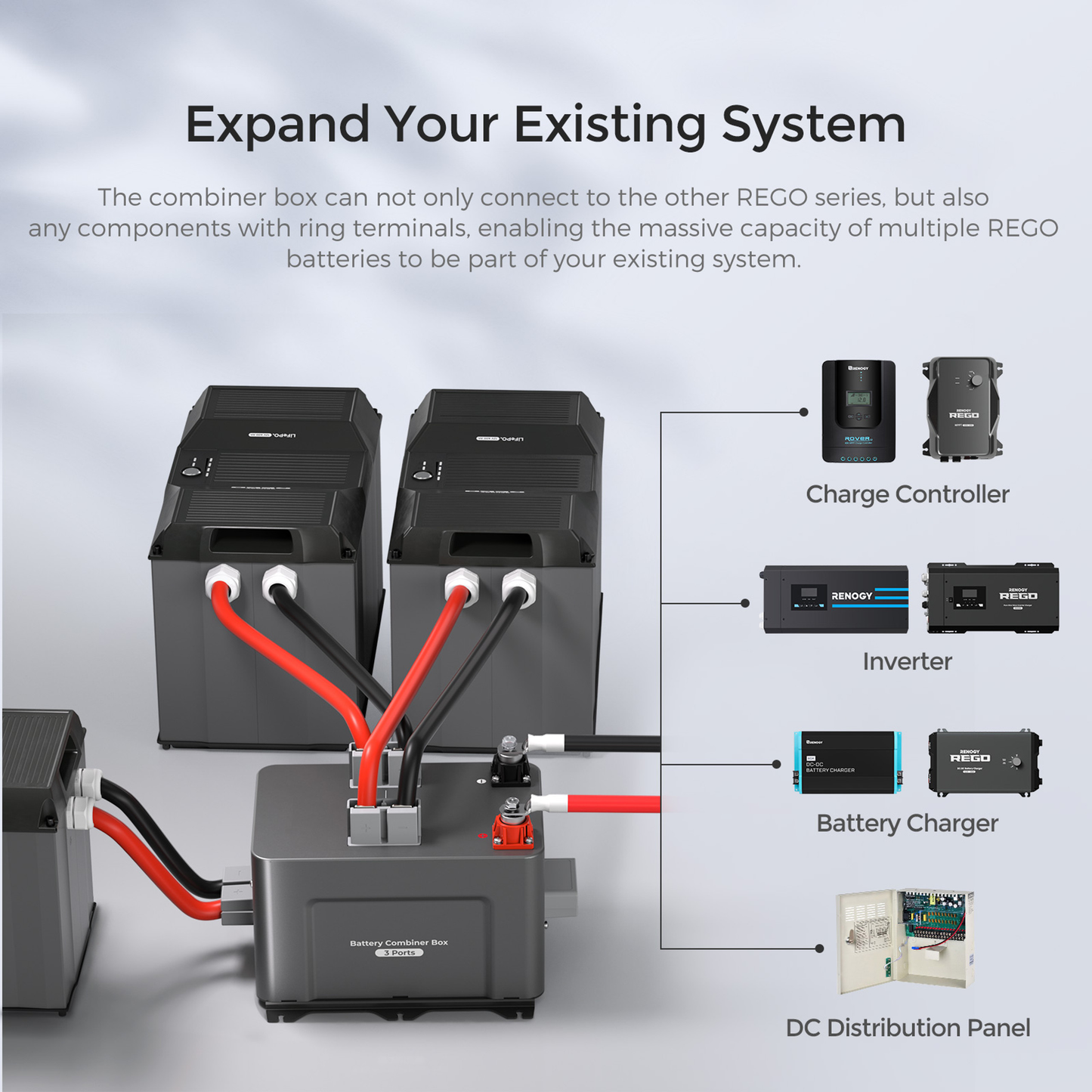

The exclusive Anderson terminals allow easy plug and play connection with REGO batteries and put an end to the short circuits, misconnection, and connection failure. The REGO battery combiner box is also equipped with heavy-duty insert terminals that allow the combiner box to connect with non-REGO components, enabling the massive capacity of multiple REGO batteries to be added of your existing system.
Specifications:
- Model: REC400RBCB-3P
- Rated current: 400A
- Connector: Grey Anderson 350 connectors (4)
- Connector rated voltage: 600VAC/DC
- Connector rated current: 500A
- Terminal M8 insert terminals (2)
- Terminal screw: M8 x 1.25 x 20mm
- Terminal torque: 70.8-inch-lbs (8Nm)
- Operating environment temperature: -20°C~50°C
Weight & Dimensions:
- Size: 346mm x 225mm x 203mm
- Weight: 10Kg
