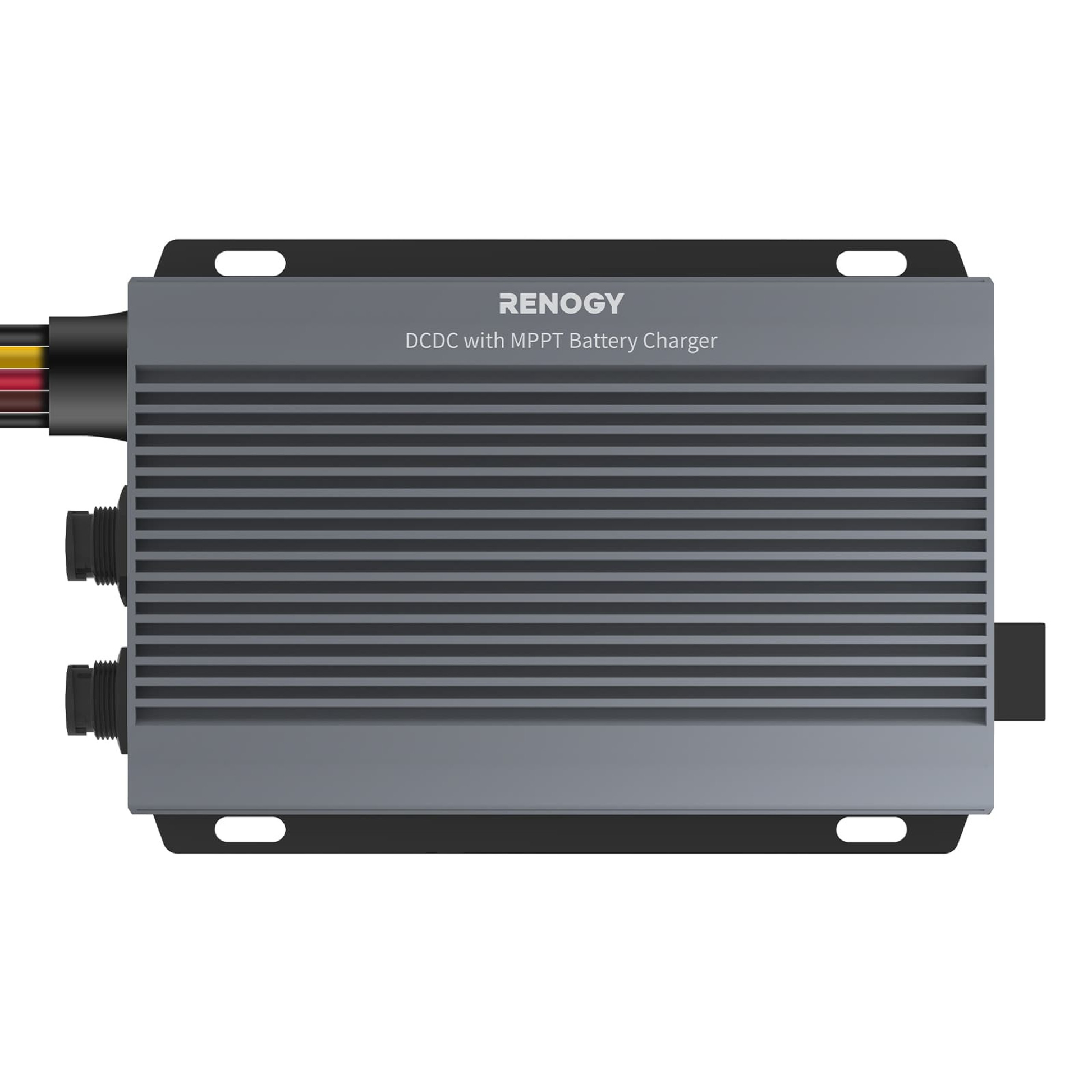

RENOGY REGO IP67 DC-DC with MPPT Battery Charger
RENOGY REGO IP67 DC-DC with MPPT Battery Charger
SKU:RBC2125DS-21W-G2-AU
Regular price
$427.00 AUD
Regular price
Sale price
$427.00 AUD
Unit price
/
per
At Selectlok, we have access to the entire range of RENOGY products, if you are looking for a specific component, or seeking advice for a part needed in your project, that isn't advertised on our website please get in touch with us here, or via the button below & we will be able to help you out with supplying what you require. PLEASE NOTE: RENOGY products are NOT available for Click & Collect or In-Store Pickup.

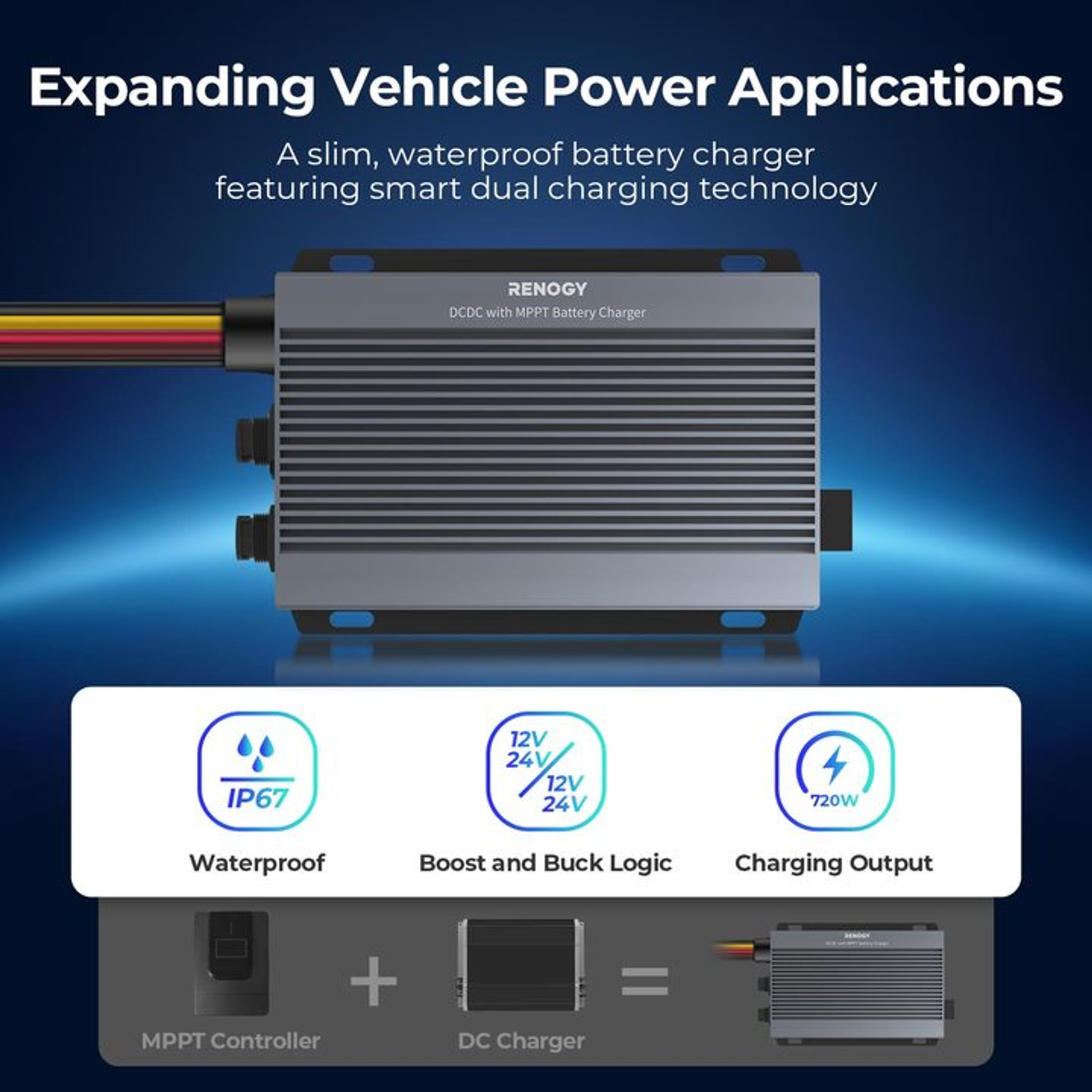

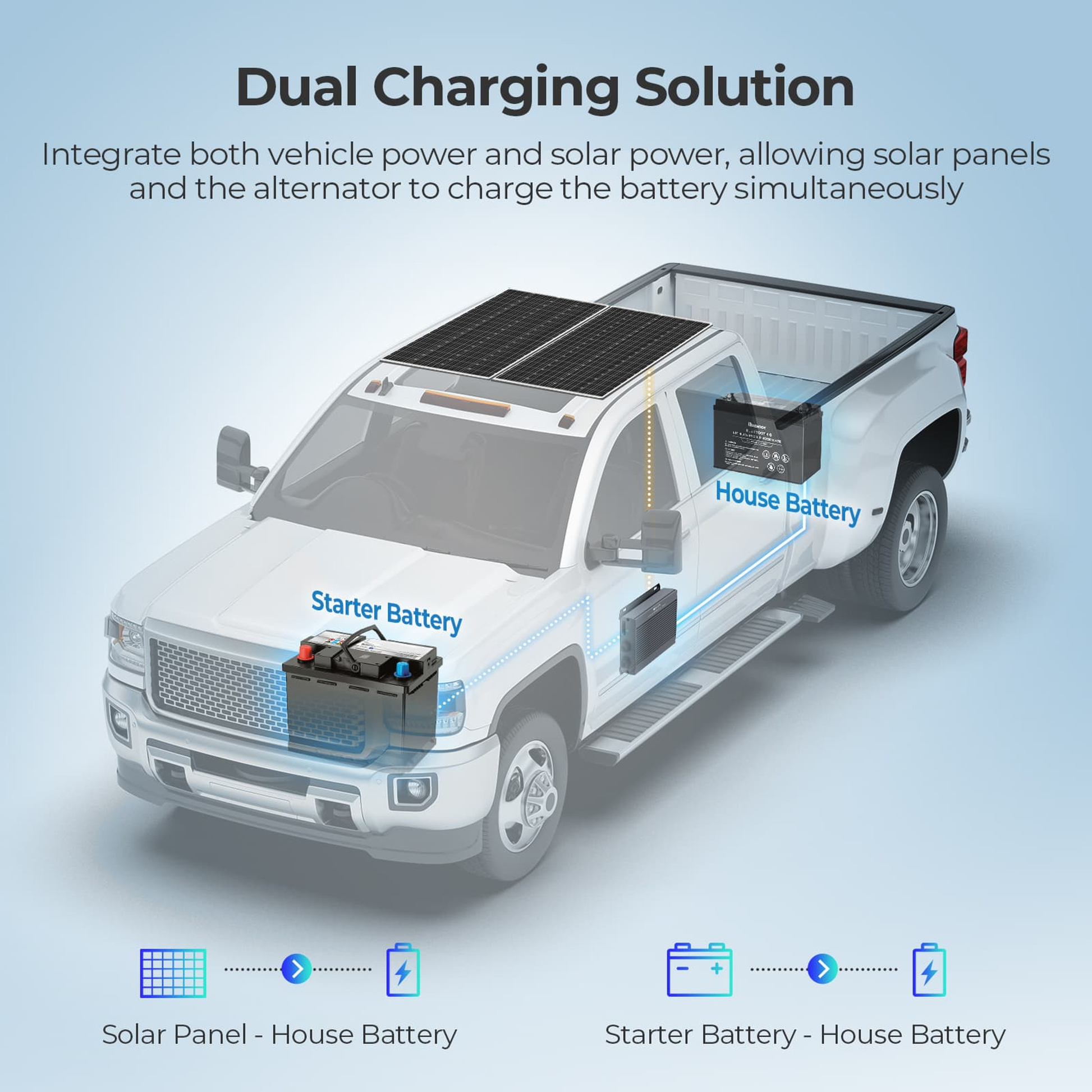

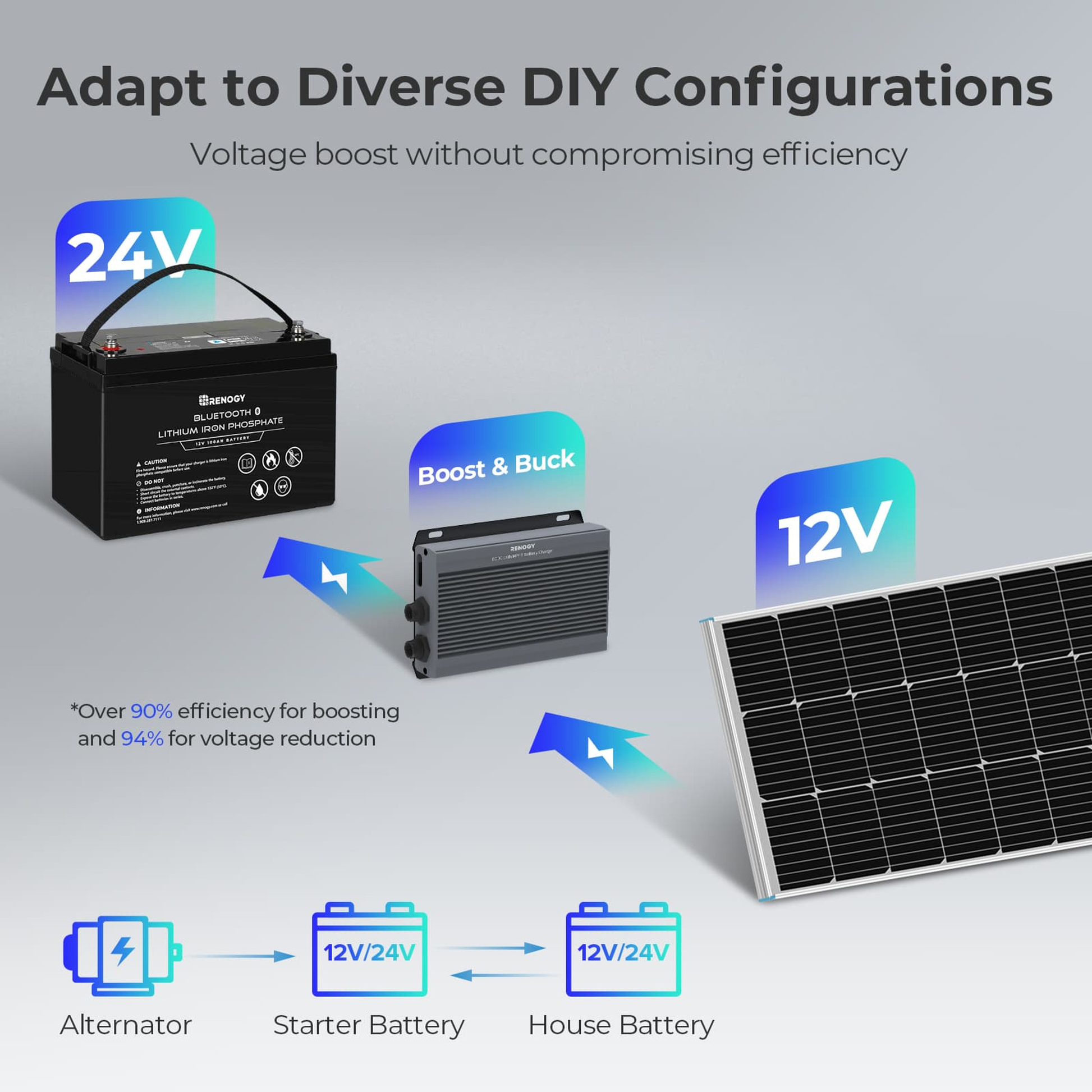

The Renogy Rego IP67 DC-DC with MPPT battery charger is a dual charging solution with 12V/24V boost and buck logic. Compact & lightweight with IP67 waterproof rating, auto-switching charging mode while prioritizing green power, certified CE, FCC, RoHS with comprehensive test reports. Features Bluetooth Energy Monitoring with wired CAN communication.
Features:
- System Voltage: 12V/24V - 12V/24V
- Output Voltage: 9-32 VDC
- Solar Input Voltage: 50 VDC
- Alternator Input: 9-32 VDC
- Output Power: 720W
- Maximum Output Current Rating: 50A @ 12V;25A @ 24V
- Battery Types: AGM/SLD, GEL, FLD, LI, USER
- Input Fuse Rating: 75A-100A
- Output Fuse Rating: 75A-100A
- Charging Efficiency: 0.97
- Idle Power Consumption: <100mA
- Temperature Compensation: -3mV / ℃ / 2V (non-lithium);0mV / ℃ / 2V; no compensation (Lithium)
Specifications:
- class="custom-field-group-value" id="vl-Model">RBC2125DS
- Terminal Range: 8AWG-4AWG
- Communication Protocol: -40℃ to 80℃
- Humidity: Modbus; RV-C
- Operating Temperature Range: -35℃ to 80℃
- Storage Temperature Range: -40℃ to 80℃
- Certification: CE;RoHS;FCC Part 15 class B
- Protection: Reverse Polarity Protection/Overvoltage Protection/Over Discharge Protection/Overcurrent Protection/Over Temperature Protection/Overcurrent Protection
Weight & Dimensions:
- Size: 178.2mm x 121.5mm x 37.5mm
- Weight: 1.86kg
