Switch Up (F-Series Symmetrical Swing Handle)
Switch Up (F-Series Symmetrical Swing Handle)
SKU:1107FPPU0
Orders will dispatch within 2 business days. Click & Collect available (Tullamarine,VIC)
Prices include 10% GST. Shipping calculated at checkout.
Orders will dispatch within 2 business days. Click & Collect available (Tullamarine, VIC)
Couldn't load pickup availability
Selectlok's new Switch Up symmetrical swing handle system makes choosing, fitting and replacing swing handles easier than ever! Developed primarily around use within Modular Symmetry Door Frame Designs.
The New "F-Series" cutout design of the Switch Up allows you to utilise the same handle in either LH or RH orientated doors (designed with a biaxial symmetrical frame) via the use of the specially designed Adapter Plate. This new cutout and adapter plate also ensure compatibility with any Selectlok standard cutout swing handle.
The patented Switch Up range of swing handles allow you to easily adapt your build to utilise the most popular industry lock inserts which can easily be changed in situ without having to replace the entire handle or house large quantities of handle inventory. Instead, you need only carry the desired swing handle variant, and the range of Switch Up Inserts required to meet the changing demands of your client.
Features:

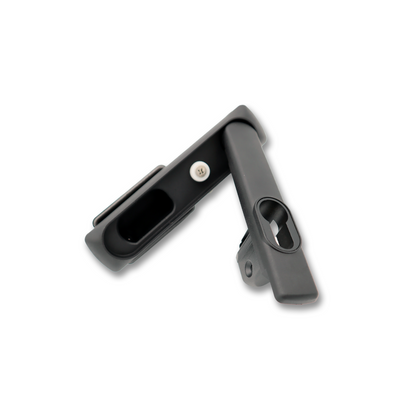

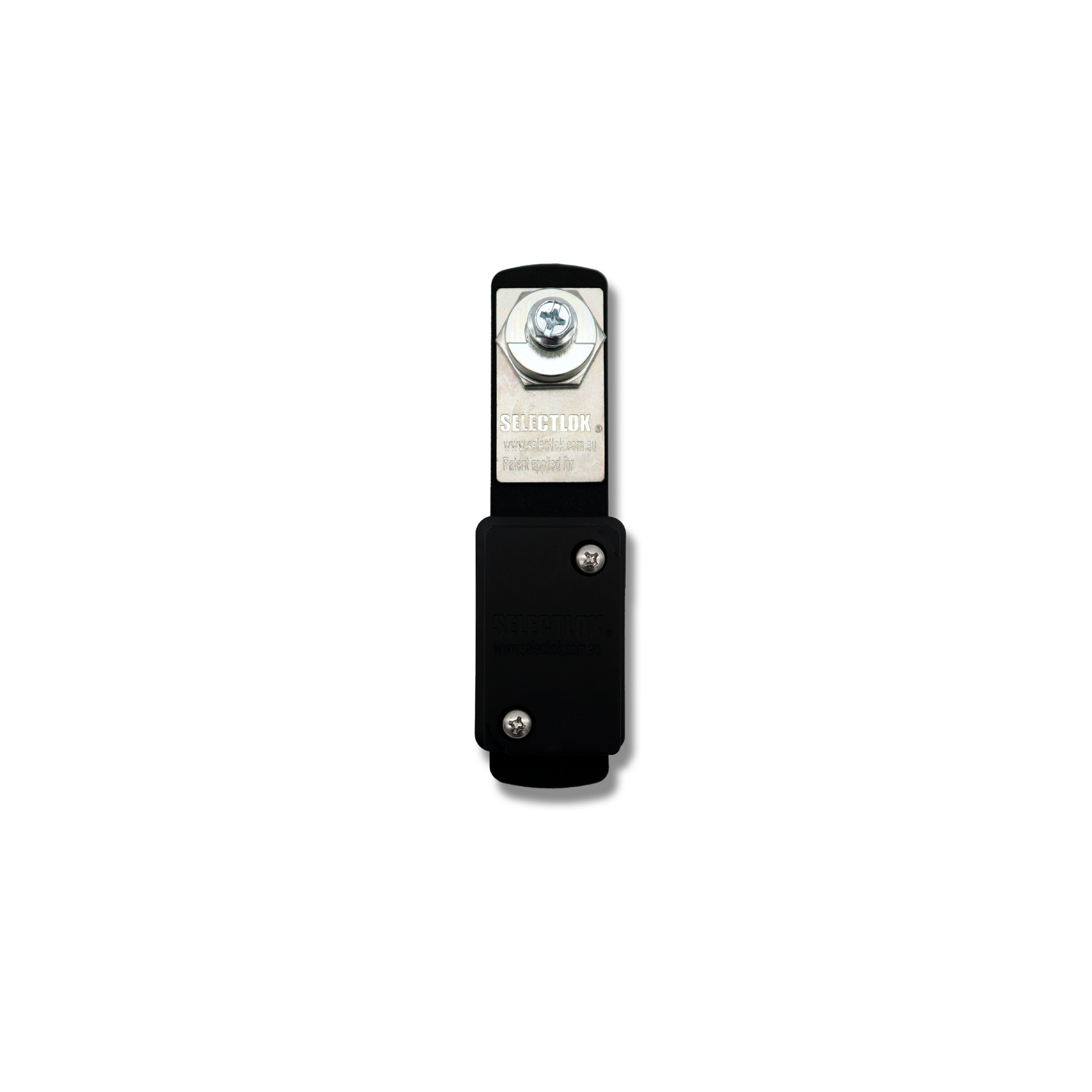

Switch Up HANDLE
- Easily Switch Up between pad-lockable, keyed barrel or half-euro inserts (half-euro cylinder sold separately) *non-locking w/o insert
- Unique modular design allows for easy conversion between F-Series cutout and standard Selectrix/Selectlok (Eselon and Millennium series) cutouts via the adapter plate
- Polyamide handle: IP42 rated (indoor applications only)
- Zinc, powder coated handle: IP66 rated (outdoor/full exposure applications)
- 90° handle rotation feedback with “click”
- Short cam shaft design
- Symmetrical F-series cutout & 180° handle rotation: ensures compatibility with both RH and LH applications on symmetrically designed doors
- Vandal resistant, low profile/flush design
- Reduces inventory requirements
Switch Up Adapter Plate and Inserts (Sold Separately):

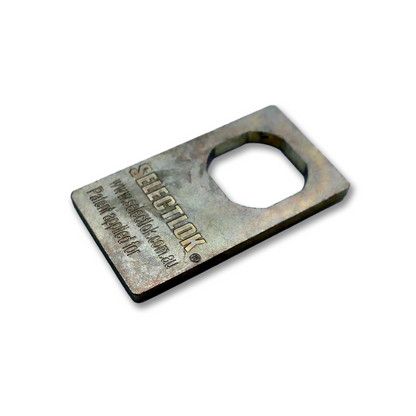

Adapter Plate:
- Adapter plate: 1107F-PLATE-01

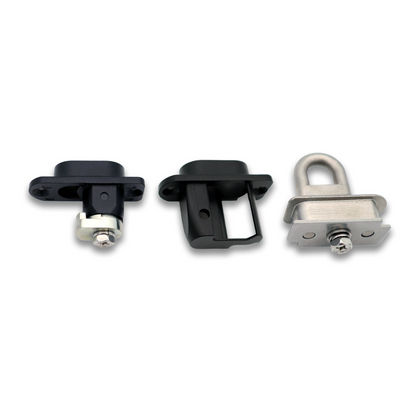

Inserts and Profile Cylinder:
- Pad-lockable: 1107FBBIN-PAD
- Keyed CL001: 1107FBBIN-01
- Keyed 92268: 1107FBBIN-02
- Keyed CL604: 1107FBBIN-03
- Keyed CL003: 1107FBBIN-07

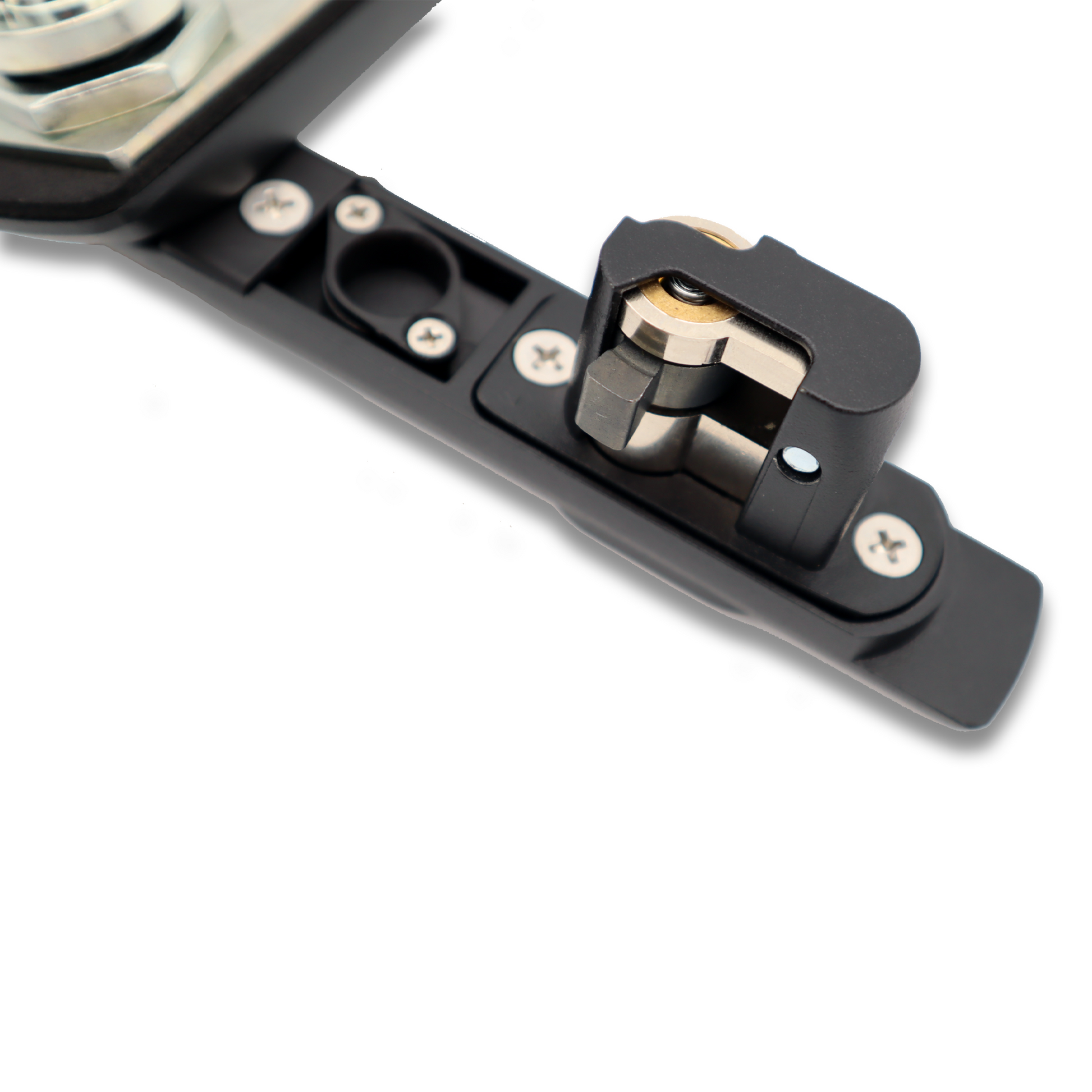

- Half-euro profile: 1107FBBIN-U3
- Half-euro 40mm profile cylinder: 1109-SX## (Sold Separately)
Remarks:
- For optimal results when designing symmetrical enclosure door frames: Selectlok recommend pairing our PI5346-MB-6-2-S corner hinges with swing handles that utilise an F-Series cutout.
- Single and multi-point cams available in various H= dimensions
- P1117 padlock accessory plate available upon request: (may be subject to MOQ’s and/or extended lead-times.) Used for converting Selectrix pad-lockable handles (single mounting bolt design without polyamide back cover) to suit doors designed using F-series cutout *Refer to Datasheet: Page 3 - Fig.5 and Fig. 6 (Version A)
