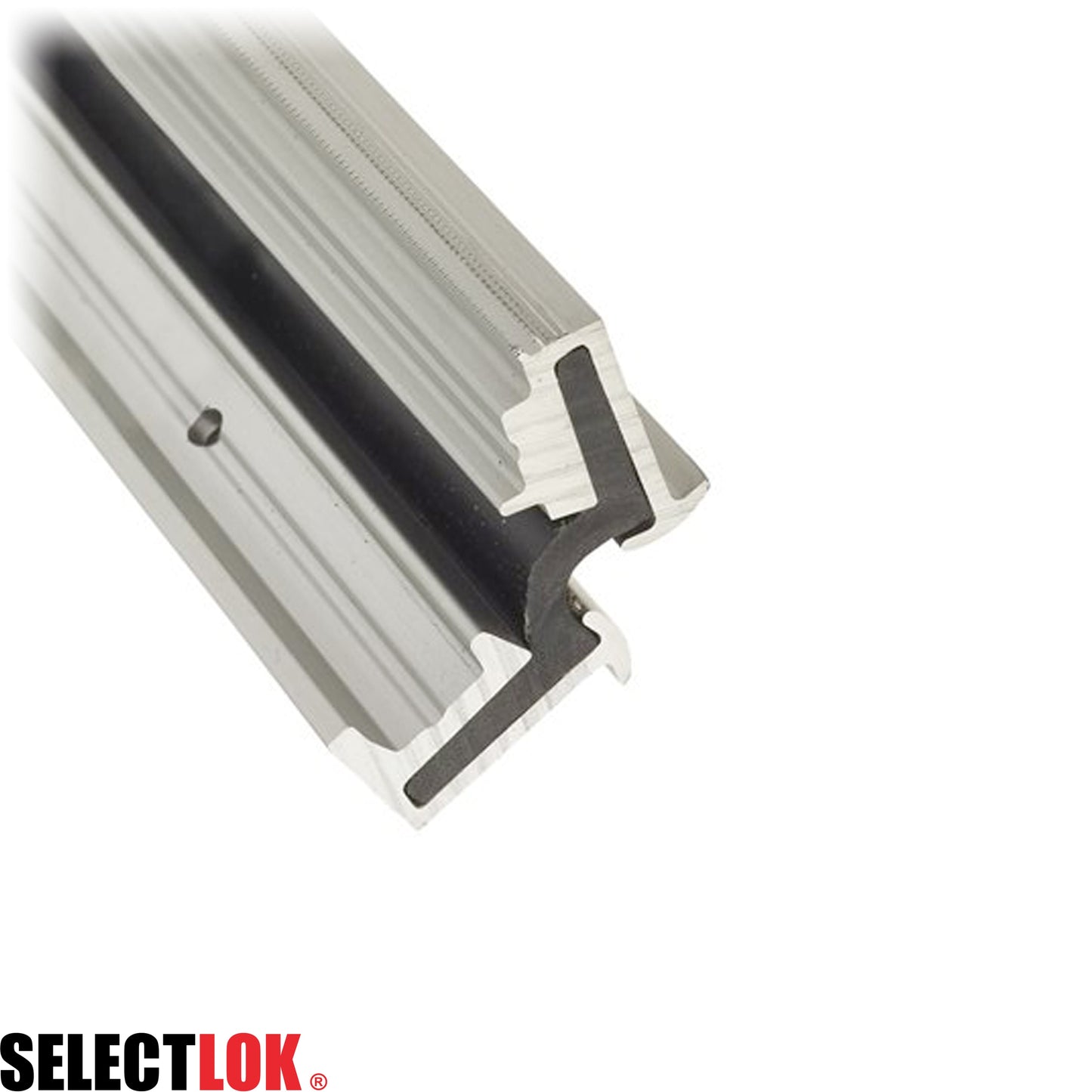

Tila Aluminium Profile Hinge
Tila Aluminium Profile Hinge
SKU:631218
Regular price
$411.36 AUD
Regular price
Sale price
$411.36 AUD
Unit price
/
per
Prices include 10% GST. Shipping calculated at checkout.
Orders will dispatch within 2 business days. Click & Collect available (Tullamarine,VIC)
Orders will dispatch within 2 business days. Click & Collect available (Tullamarine,VIC)
Couldn't load pickup availability
Features:
- Pre-drilled holes (diameter 4mm with 100mm gaps, stepped/offset to the opposing face)
- Temperature range -40℃ to +80℃
- Hydrolysis and bacteria resistant
- Contact us for custom lengths, sizes and holes (minimum order quantities apply)
Dimensions:
- Height = 25mm
- Width = 22mm
- Length = Various
Specifications:
- 631218 - Length = 1800mm, Mounting holes = 18, Weight = 2.05kg per hinge
- 631222 - Length = 2200mm, Mounting holes = 22, Weight = 2.50kg per hinge
- 631224 - Length = 2400mm, Mounting holes = 24, Weight = 2.75kg per hinge
- 631227 - Length = 2700mm, Mounting holes = 27, Weight = 3.10kg per hinge
Material & Finish:
- Aluminium profile
- AlMgSi 0.5 anodised, E6 EV1, matt silver colour
- Polyurethane elastomer plastic profile, black
