Midnight V3 MINI Whale Tail
Midnight V3 MINI Whale Tail
SKU:10507M-U3-ZCC-R
Orders will dispatch within 2 business days. Click & Collect available (Tullamarine,VIC)
Prices include 10% GST. Shipping calculated at checkout.
Orders placed after Sunday 15th December will dispatch after Monday 6th January 2025. This includes Click & Collect orders.
Couldn't load pickup availability
Our Midnight V3 MINI handles are an innovative new take on traditional whale tails that have taken the industry by storm!
The V3 MINI is based on our full-sized V3 handles. (The ultimate "set and forget" whale tail.) Sharing all of the same great features that help set the Midnight V3 apart from the competition as one of the best whale tails on the Australian market, yet all contained in a compact and stylish unit that is approx. 30% smaller and better suited to slide-out drawers and underbody toolboxes.
Offering a stainless-steel main cam shaft and the choice of either a high-security Euro profile or Automotive key barrel as well as fully tunable handle spring tension, this is the whale tail to choose if you are commercially building custom Ute canopies and trailers and need an alternative, innovative and stylish solution for use in drawers, under body and smaller style boxes.
Features:
- Approx. 30% smaller than the full-sized Midnight V3 whale tail
- Adjustable roller cam (nylon)
- Grip range (H=) 20mm ~ 55mm
- M5 cast-in studs - rear fixing, high tensile
- Heavy-duty stainless steel main cam shaft with 'tunable' handle spring tension
- Available as an automotive-style key or high-security Euro profile cylinder option (please select in the dropdown)
- PLEASE NOTE: High Security Euro Profile option does not come supplied with a key cylinder. You can either use an existing cylinder or purchase one from Selectlok - View Here
- Commonly used industry cutout template
- Pad-lockable hasp for additional security and peace of mind
-
Central Locking Kits available (same unit suits both full-size and mini versions of the Midnight V3) - View here

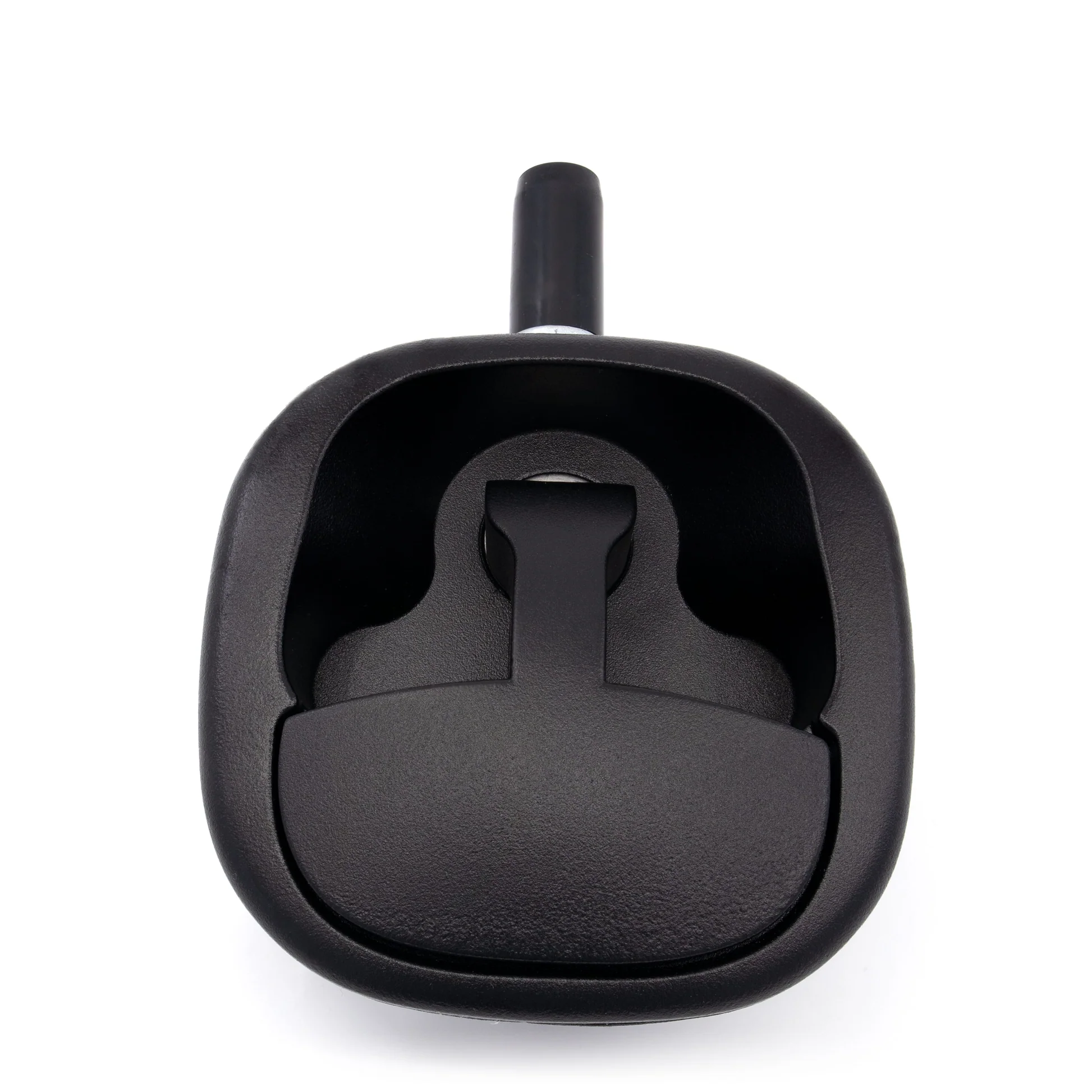

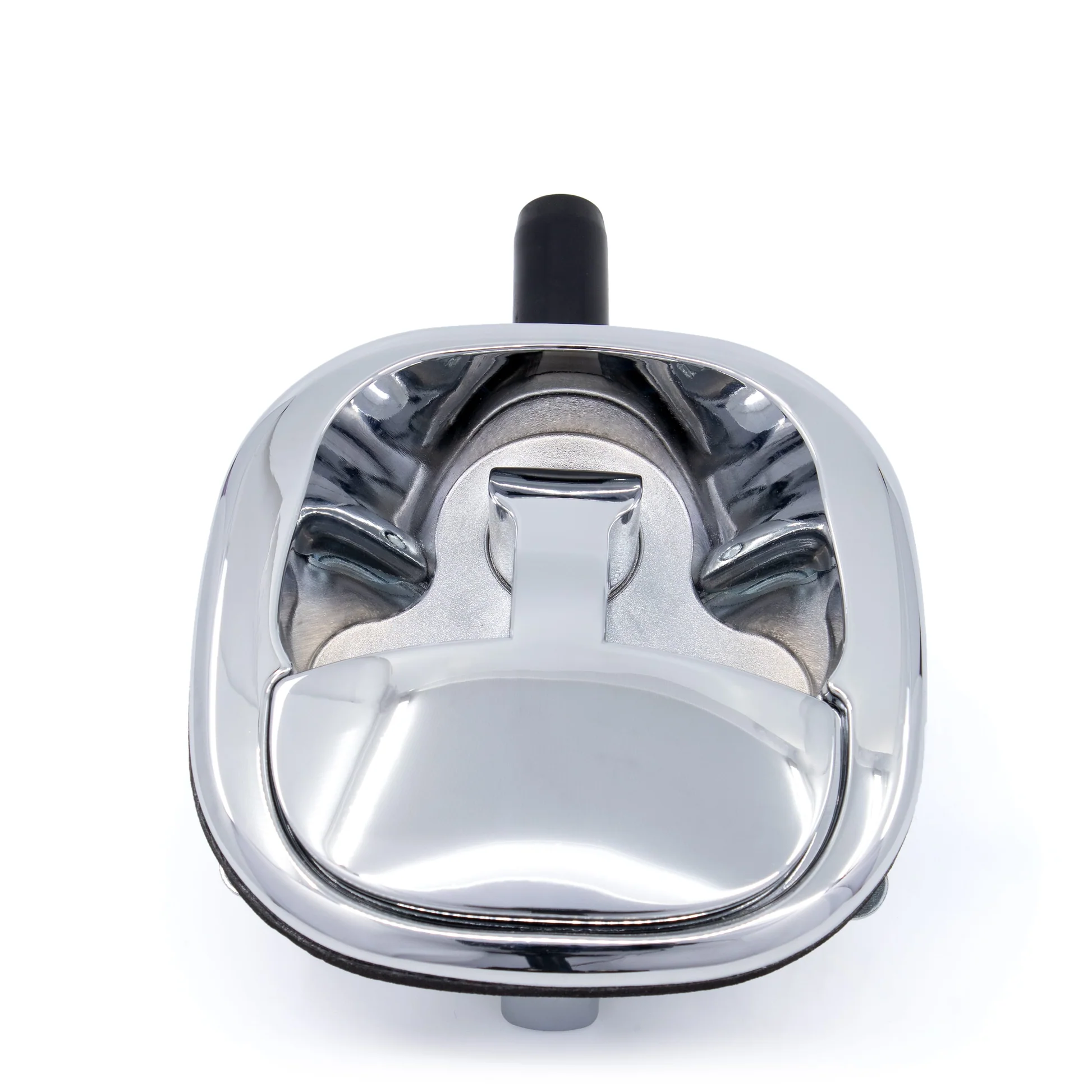

- Available in either satin black EDP or polished chrome plating
- Pad-lockable hasp for additional security
- IP65
Dimensions:
- 110mm (H) x 110mm (W) x 78.4mm (D)
Materials and finish:
- Housing: Mild steel, zinc plated
- Handle & dish: Zinc die, zinc plated
- Main cam shaft: Stainless steel 304
- Adj. roller cam: Nylon
- Handle & dish finish: EDP coated, satin black Or chrome plated, polished
Remarks:
- New modern design
- Ergonomic and secure handle
- Zinc die-cast dish and handle
- Suitable for single or multi-point locking
- Designed in Australia for Australian Conditions
-
Design patent registration applied for*
View Our Technical Datasheet

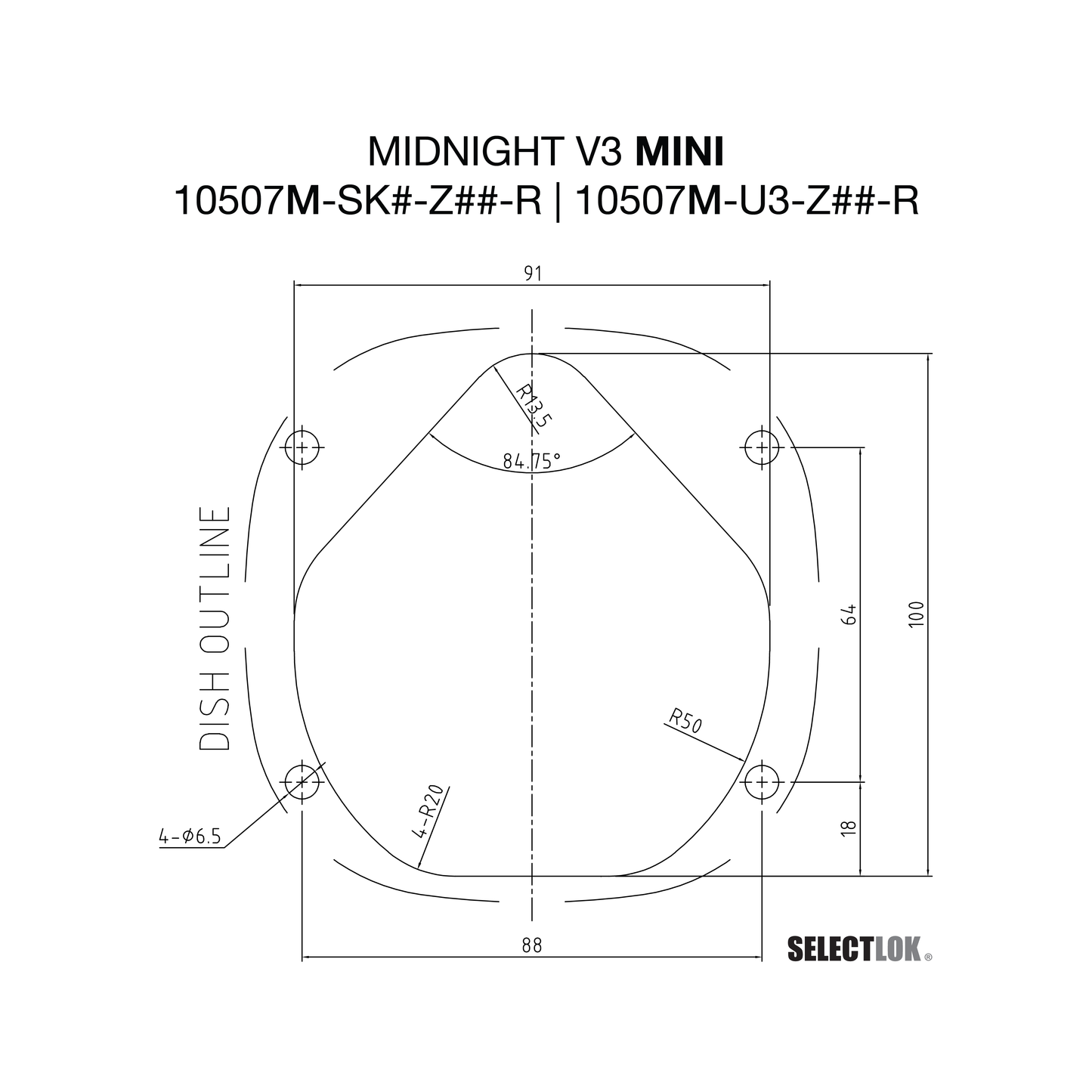

Download Our Printable 1:1 Scale Cutout Template
Accessories (Sold Separately):
Locking Rods & Attachments
- RG007 Roller rod end attachments
- RG008 Connector clips
- P3355-0# Rod guide
- RODADAPT Rod adapter (Zinc)
- ROD###E Locking rod with eye
- ROD###R Locking rod with roller
Central locking kits
- 12V 10506-CL-L | 10506-CL-R
- 24V 10506-CL-L-24V | 10506-CL-R-24V
Central Locking Orientations:
Not sure whether you need a right-sided or left-sided kit?
The easiest way to figure it out is to take the handle and view it with the face of the handle orientated the correct way up. (keyway to the top) then please refer to the image below to confirm this products placement.
Please Note: Selectlok recommends installation by a qualified auto-electrician only, with no more than a maximum of two locks/actuators per 40amp relay in the central locking wiring circuit.
You can read our handy guide here.
